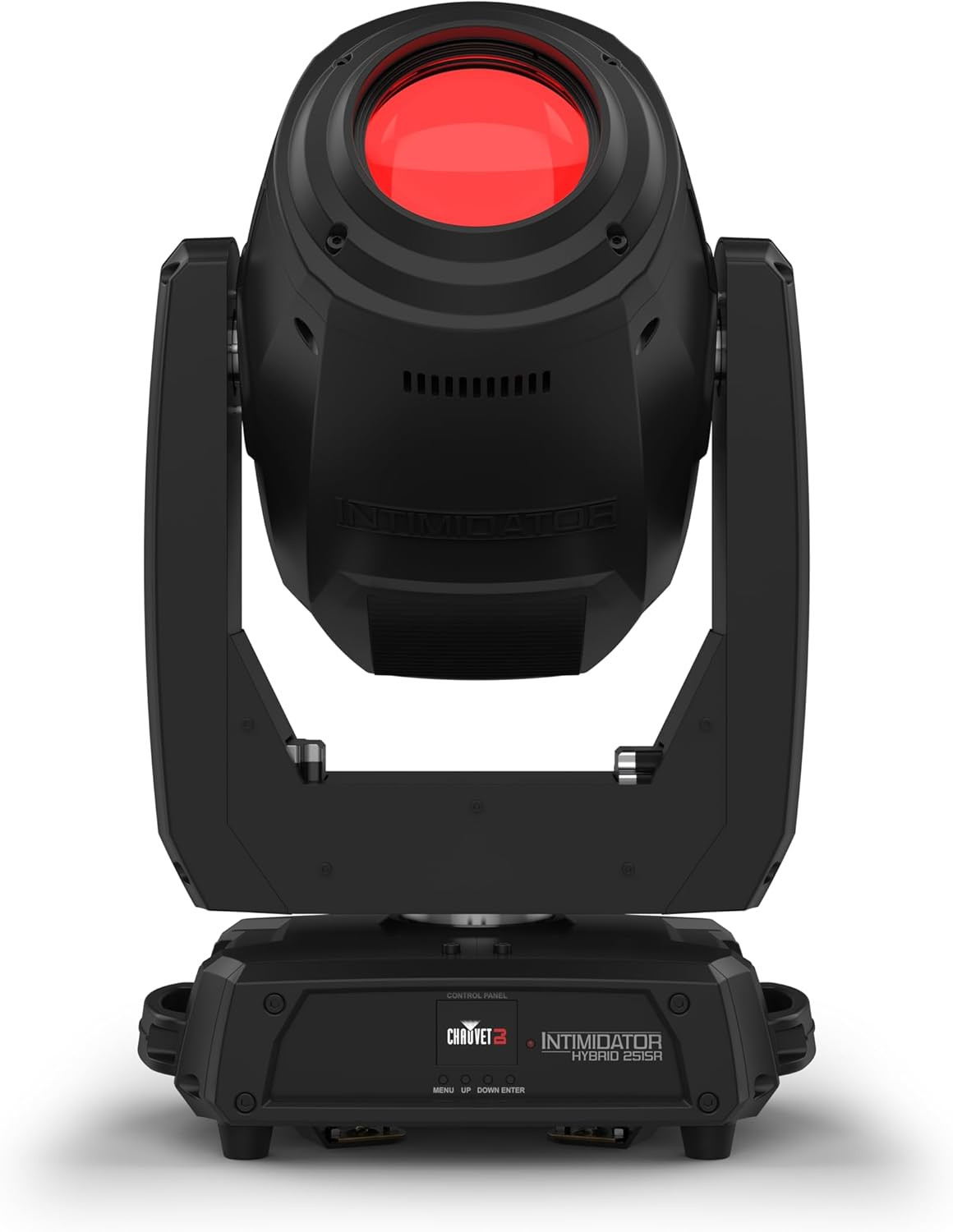

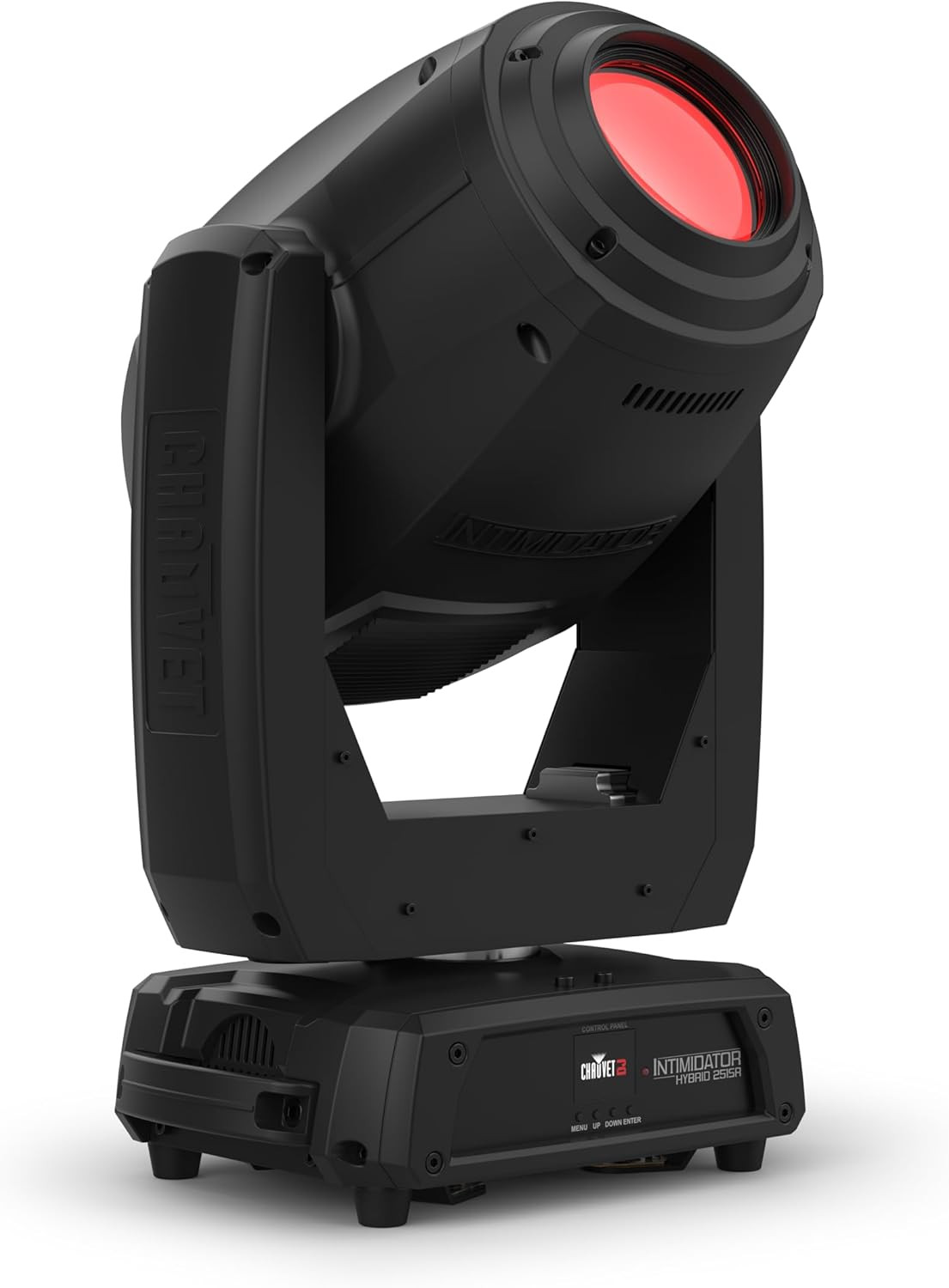

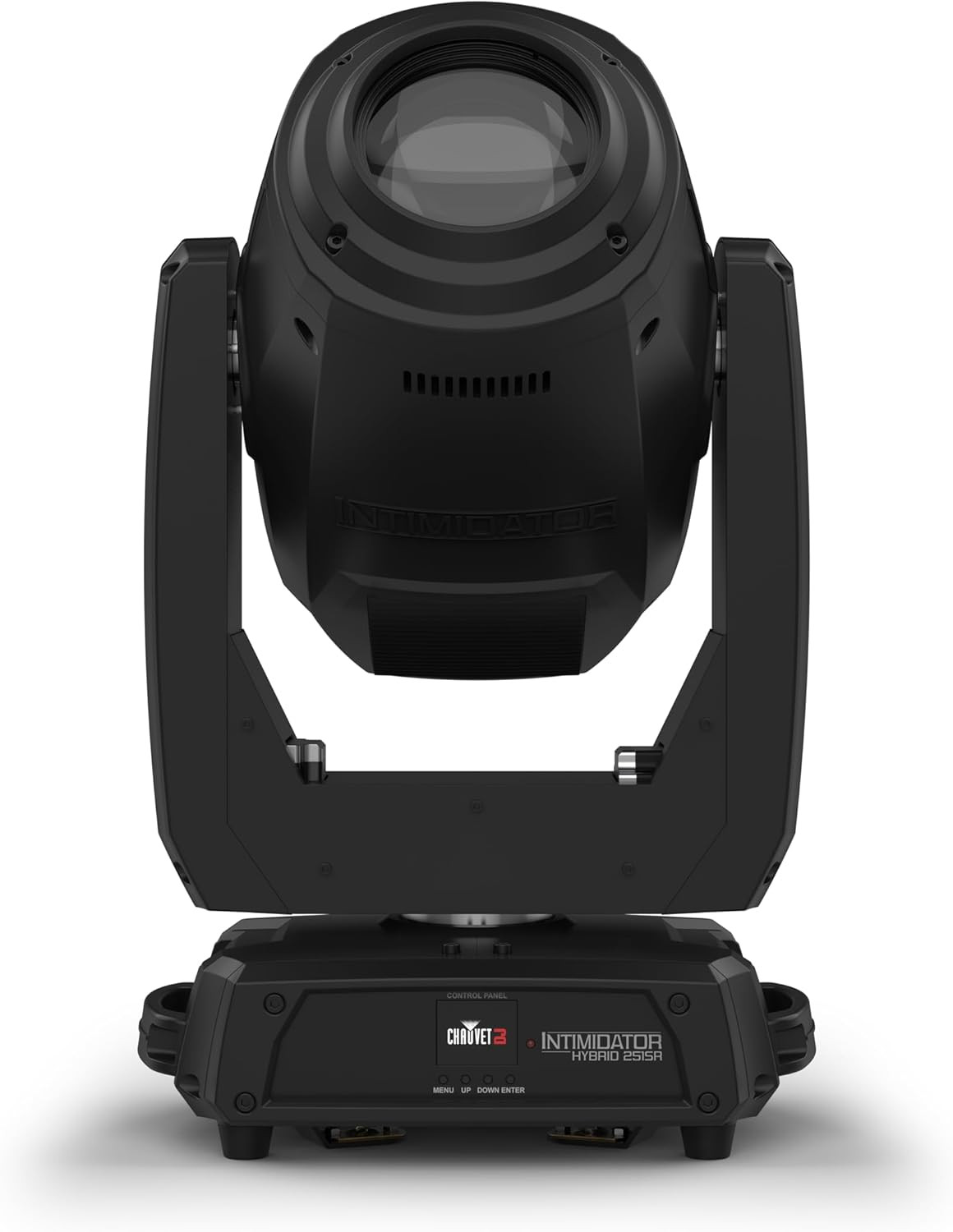

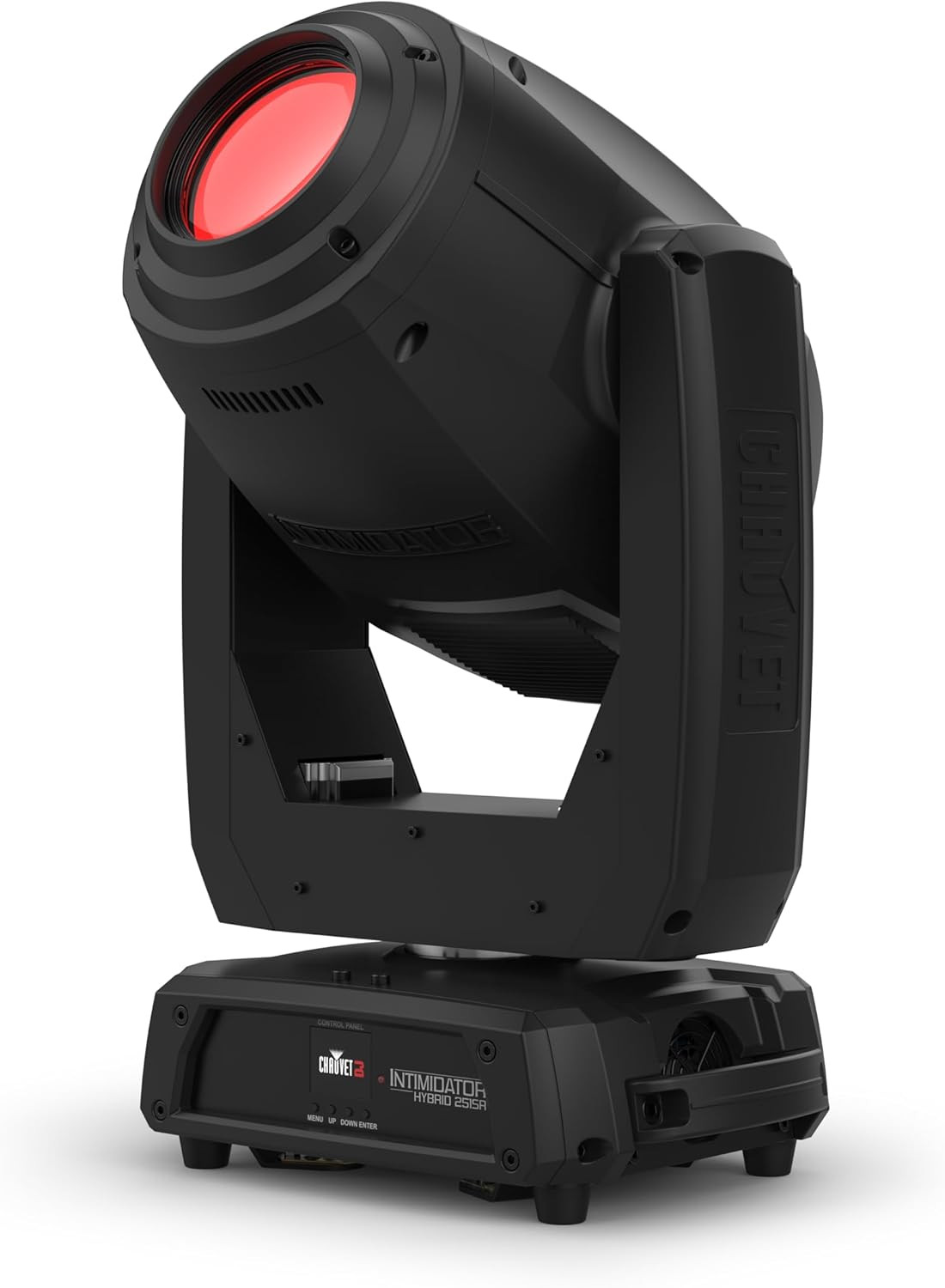

• True hybrid moving head fitted with an intense 251 W discharge light engine
• All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly
• Dual, overlapping prisms with independent control multiply the beam dynamics
• Dual gobo wheels allow for gobo morphing and amazing mid-air projections
• Motorized zoom works in beam, spot and wash modes for ultimate light control
• Unique -turn hanging bracket allows for single or dual clamp mounting options
• Emit crisp projections at almost any distance using the motorized focus
• Glass optics ensure crisp beams and gobos at all times
• Full-color display with RF compatibility, totem mode and onboard memory for storing a scene

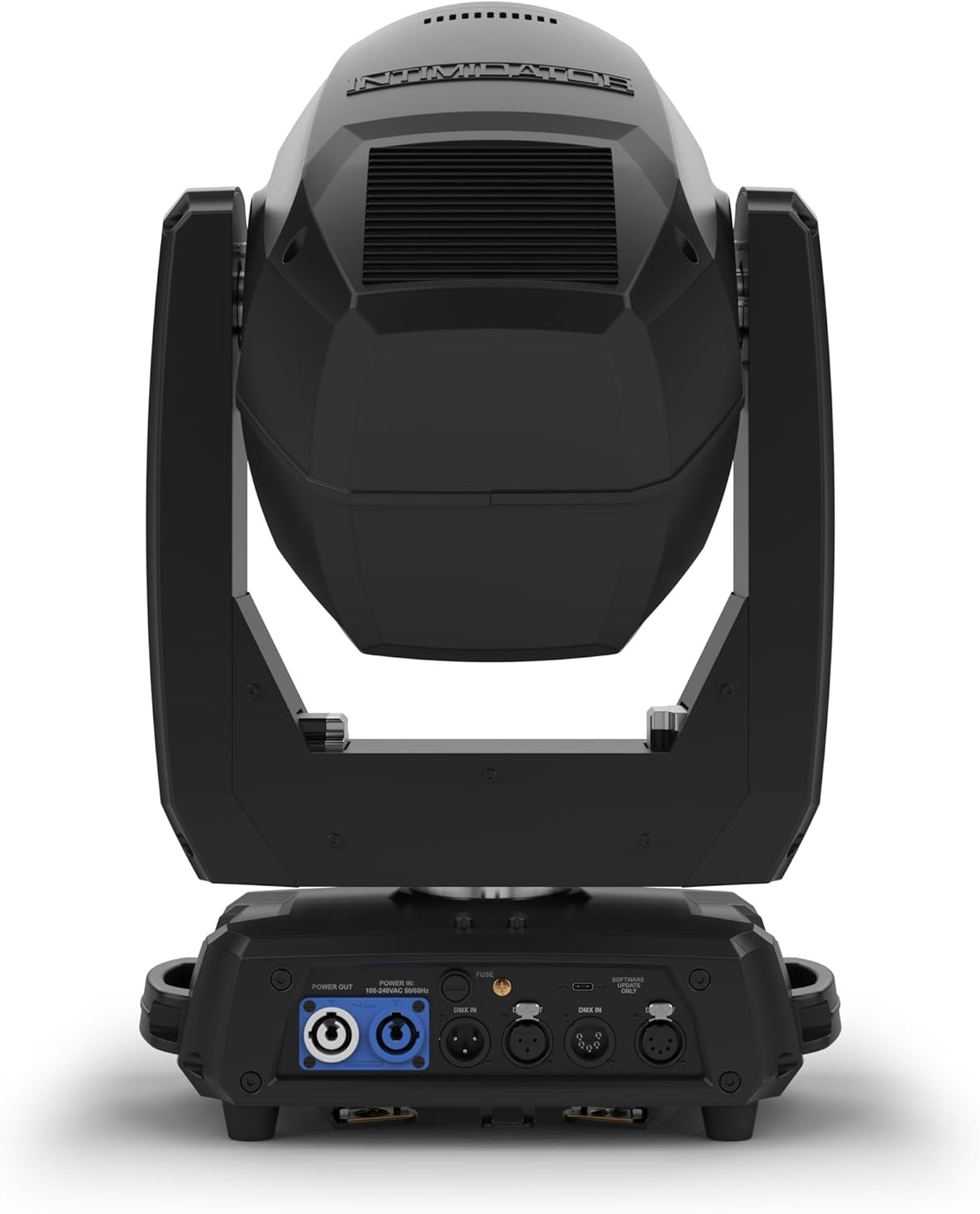

• powerCON-compatible power input/output connections for power linking
Specifications• DMX Channels:13 or 19
• DMX Connectors:3- and 5-pin XLR
• Pan and Tilt:540/270
• Pan and Tilt Ranges:180, 360, 540 pan/90, 180, 270 tilt.
• Colors:12 + open, split colors, continuous scroll at variable speeds
• Gobos:(1) : 9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds
• (2) : 17 + open, continuous scroll at variable speeds
• Light Source:Osram SIRIUS HRI 251W discharge lamp (3,000 hrs)
• Strobe Rate:0 to 20 Hz
• Power Linking:3 units @ 120 V; 5 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Gobo Size:13.7 mm outside, 10 mm image, 0.8 mm max thickness
• Weight:35.6 lb (16.1 kg)
• Size:12.6 x 8.6 x 21.6 in (322 x 220 x 549 mm)
• Approvals:CE, MET, ROHS
• Prism (1): 5-facet round, bidirectional rotation at variable speeds
• Prism (2): 6-facet linear, bidirectional rotation at variable speeds
• Zoom Angle (beam): 1 to 3
• Zoom Angle (spot): 12 to 23
• Zoom Angle (wash): 7 to 19
• Illuminance (1 beam): 500,411 lux @ 5 m
• Illuminance (12 spot): 376,927 lux @ 5 m
• Illuminance (7 wash): 8,038 lux @ 5 m
• Power and Current: 358 W, 3.6 A @ 120 V, 60 Hz
• Power and Current: 344 W, 2.3 A @ 230 V, 50 Hz
• Optional Controllers: RFC-XL
What's Included• Intimidator Hybrid 251SR
• Power cord
• Hanging bracket
• Quick Reference Guide
