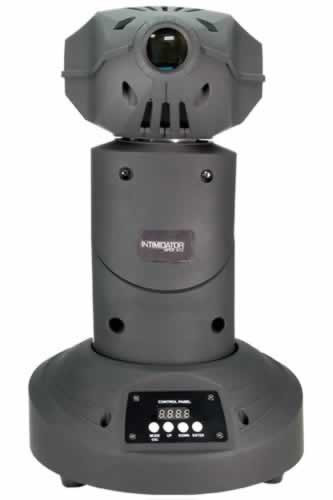

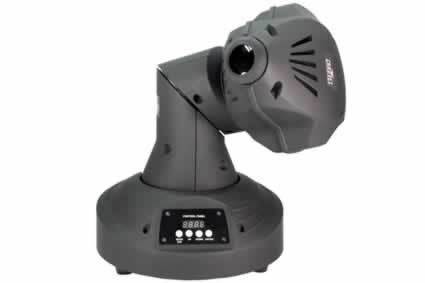

The Intimidator Spot XYZ moving yoke uses a third axis of motion to create unique positions and effects. This feature-packed fixture includes a high power, 60-watt LED, color wheel with seven slots plus white and a rotating gobo with seven slots plus open. It also offers remote focus and a 3-facet prism with output similar to a 250W light source.
FEATURES: • 11 or 16-channel DMX-512 moving yoke
• Pan 1: 540 / pan 2: 540 / tilt: 540
• Color wheel
7 colors + white
Split colors
Rainbow color spin at variable speeds
• Rotating gobo wheel with gobo shake
7 interchangeable gobos + open
5 metal, 2 glass installed
Rotating gobo wheel spin at variable speeds
• 3-facet prism
• Variable electronic shutter (for strobing)
• Variable motorized focus
• Variable electronic dimmer (0 - 100%)
• Remote fixture reset & vector speed channel
• Individual reset of pan/tilt, color, gobo, prism, focus
• Move-in-black for pan/tilt, color, gobo
• Built-in movement macros via DMX (automated and sound)
• Built-in automated programs via master/slave
• Built-in sound-active programs via master/slave
• High-power, 60W (14.9A) LED
• User-selectable pan/tilt ranges
Pan 1: 540, 360, 180
Pan 2: 540, 360, 180
Tilt: 540, 360, 180
• Automatic pan & tilt correction
• User-selectable basic or advanced operating modes
VIDEO
SPECIFICATIONS: • Rotating gobos: 23.8mm outside, 20mm image, 2mm max thickness
• Beam angle: 17
• Lux: 17,300 @ 1m
• Light source: 1 (white) LED 50,000hrs
• Power and current: 120V, 60Hz: 148W, 2.1A operating, 0.9A inrush
• AC power: Switchable 115V/230V 50/60Hz
• Weight: 18.4lbs / 8.3kg
• Size: 11.6in x 10.9in x 16.9in / 294mm x 276mm x 429mm
