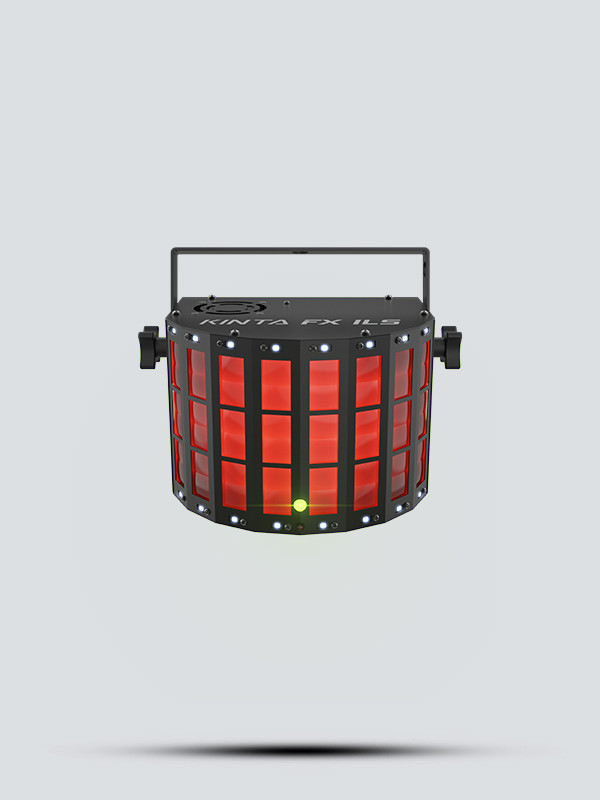

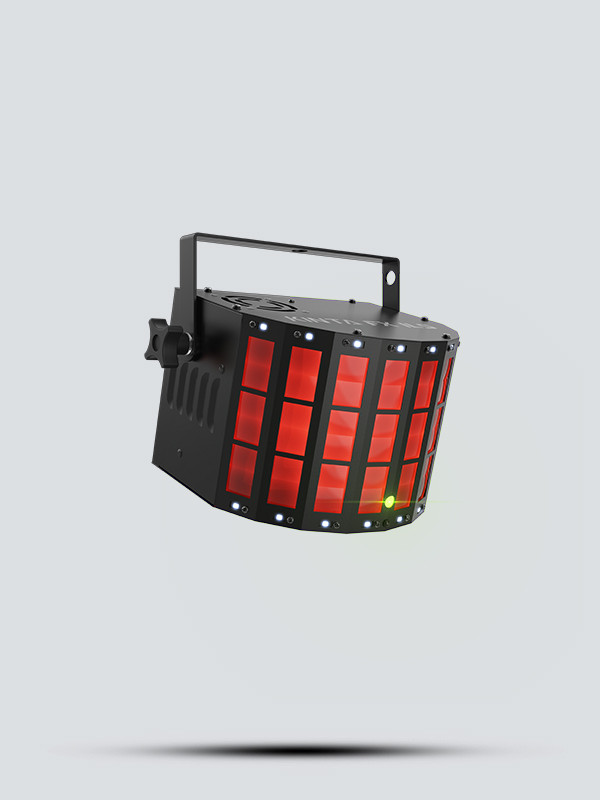

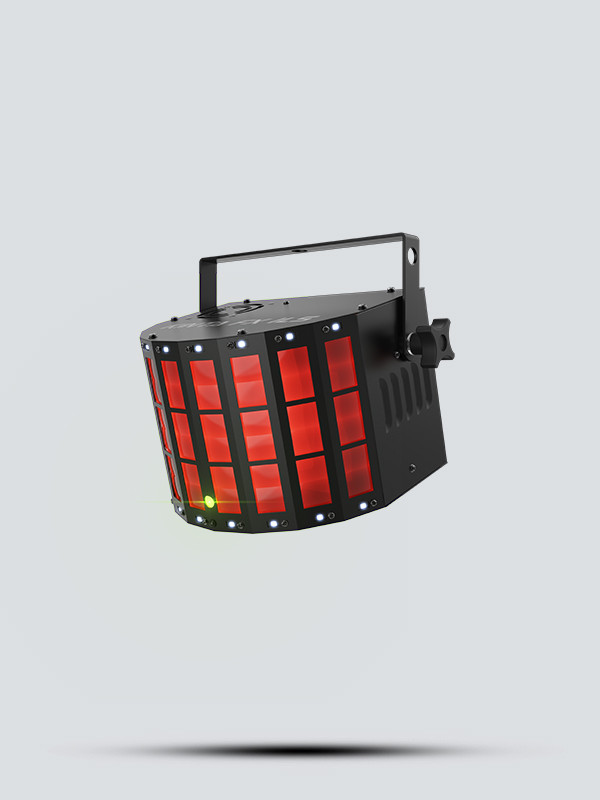

The Chauvet DJ Kinta FX ILS is a compact multi-effect with a Kinta, laser, and SMD strobe. The Kinta projects countless razor-sharp multicolor beams, the SMD strobes produce eye-catching strobe effects and
chases, and the red and green laser casts hundreds of beams.

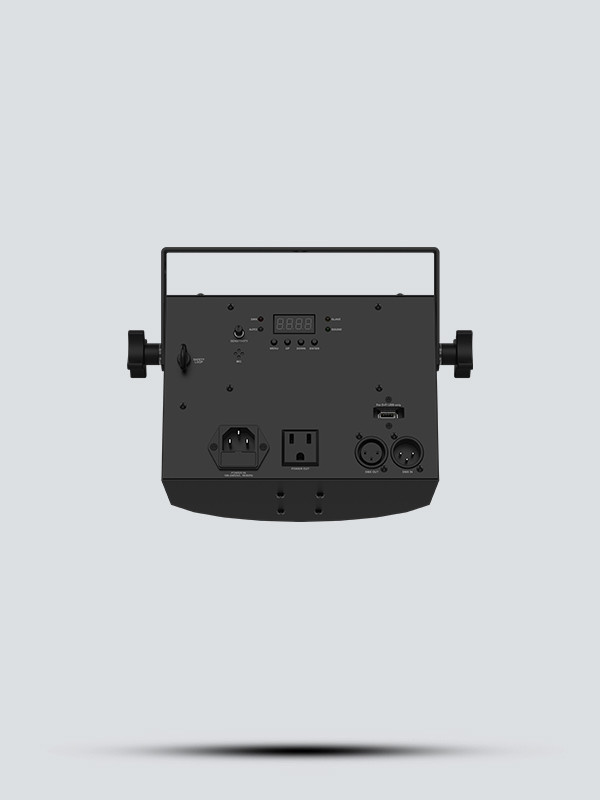

It is compatible with ILS (Integrated Lighting System) products for wireless control, but you also control the unit from DMX, Master/Slave, IRC-6, or the digital display. Save time running cables and extension cords by power linking multiple units.
What is ILS?Integrated Lighting System (ILS) is a cutting-edge lighting system that makes creating coordinated light shows across different fixture types easy and fast. Now, one of the most popular products in the CHAUVET DJ catalog the GigBAR Move becomes GigBAR Move + ILS and controls the new Integrated Lighting System to control any ILS-enabled fixture wired or wirelessly so you can spend less time programming and your event guests can get to the good times sooner!
• DMX Channels: 2 or 9
• DMX Connectors: 3-pin XLR
• Light Source (Kinta): 4 LEDs (1 red, 1 green, 1 blue, 1
white) 7.5 W, (2.4 A), 50,000 hours life expectancy
• Light Source (Strobe): 16 SMD LEDs (white) 5 W, (1.6 A)
50,000 hours life expectancy
• Light Source (Laser): 650 nm/100 mW (red) laser diode,
520 nm/30 mW (green) laser diode
• Strobe Rate: 0 to 20 Hz
• Coverage Angle: 118
• Power Linking: 17 units @ 120 V; 33 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 25 W, 0.5 A @ 120 V, 60 Hz
• Power and Current: 24 W, 0.2 A @ 230 V, 50 Hz
• Weight: 3.8 lb (1.7 kg)
• Size: 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
• Optional Controllers: IRC6
• Classified per EN/IEC 60825-1:2014
• Complies with FDA performance standards for laser
products except for deviations pursuant to Laser Notice No.
56, dated May 8, 2019
• Approvals: CE, FDA, RoHS, UKCA
