Chauvet DJ LED-EQPACK 4 Pack LED EQ Tubes

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

chauvet ledeqpack
Images may show accessories or configurations not packaged with this item.

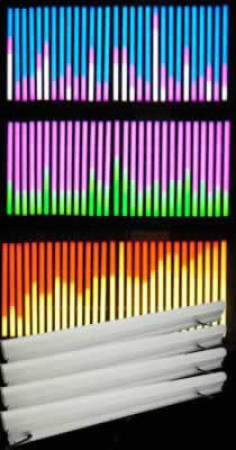

The new LED-fitted COLORtubeTM EQ offers users the unique possibility of mounting a 32-band, real-time audio spectrum visualizer, ideal for any venue where a highly visible display is wanted. Each tube can be addressed to respond to one of 32 frequencies, in the pulsating manner of a graphic equalizer on your stereo.

The tubes are sold in packs of four. Using just four tubes and selecting the first four addresses would display the four lower frequencies in the band. If you wanted to spread the band across the entire sound wave with just four tubes, you would need to spread addresses in eight-digit increments. To do the same with 8 tubes, you would need to spread it in four-digit increments, and in 2-digit increments with 16 tubes.

The tubes are water resistant, sustain wide temperature changes and are a snap to install, perfect for outdoor events and mobile functions. Operation is silent and there is no duty cycle. They are power-linkable.

• 4 to 32-band audio spectrum visualizer
• Package consists of 4pcs COLORtubetm EQ
• Each tube is addressable to any of 32 sound frequencies
• 144 ultra bright LEDs (48 red, 48 green, 48 blue)
• 16 patterns, chase, color flows with variations + blackout
• Built-in stand alone programs
• Tube composition: milky white UV coated optically diffused polycarbonate
• Water resistance rated: IP33
• Temperature range -20C to 45C
• Easy installation, energy-saving, eco-friendly
• Bulb: 144 LEDs (100,000hrs)
• Current draw: (peak 20W @ 120V)
• Power: 90V - 240V
• Weight: 4lbs (1.8Kgs)
• Master packed: 1 pc LED-EQPACK (4 tubes)/ 33.9lbs (15.38kgs)
• Size: 39.37in (1000mm) x 5.13 in (50 mm) x 2.75in (95mm)
• 1-year limited warranty

Additional Information

Manufacturer Chauvet DJ
Product Condition New - On Clearance
Returnable No
