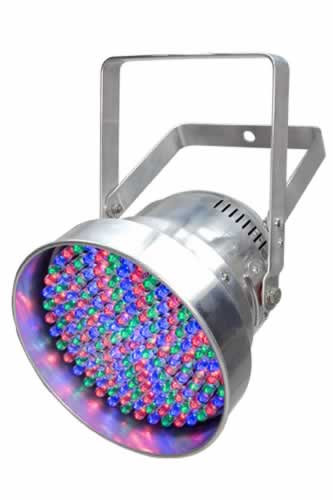

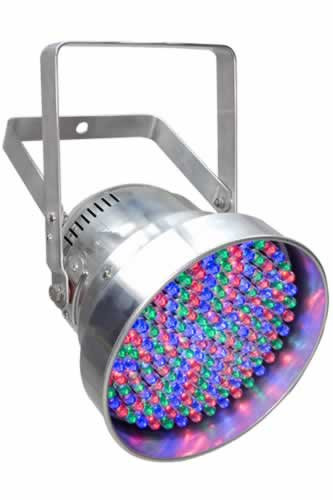

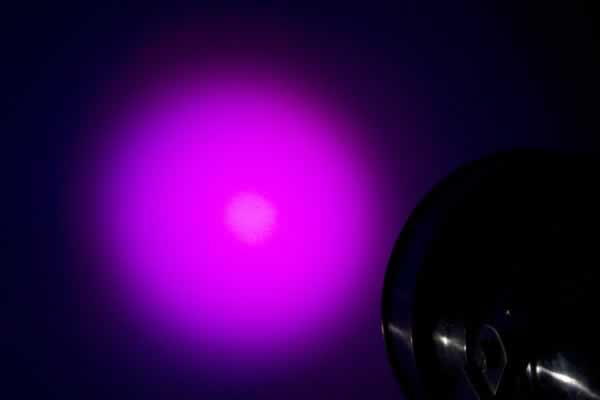

The LEDrain' 64C is a 3 or 7 channel DMX LED narrow beam fixture that features static, dimmer, and strobe functions. The unit can switch between sound-active and automatic modes, with static colors and color mixing available from 183 red, green and blue LEDs with or without DMX control. A hanging bracket converts to a floor stand for versatility. Power is daisy-chainable to 25 units, allowing for shorter cable runs.
FEATURES INCLUDE:• 3 or 7-channel DMX-512 LED PAR can
• Operating modes:
3-channel: RGB control
7-channel: RGB, macros, run/strobe speed, automatic/sound, dimmer
• Static colors and RGB color mixing with or without DMX controller
• Built-in automated programs via master/slave or DMX with variable speed
• Built-in sound activated programs via master/slave or DMX
• Pulse effect with adjustable speed
• Additional power output: max 25 units @ 120V (see manual for details)
• Double-bracket yoke doubles as floor stand
SPECIFICATIONS INCLUDE:• Beam angle: 20
• Field angle: 32
• Lux: 2,020 @ 1m

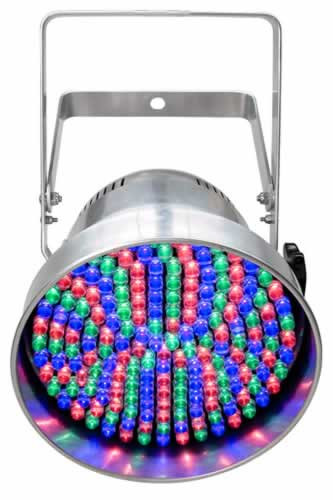

• Light Source: 183 (61 red, 61 green, 61 blue) 10mm LEDs
• Power and current: 120V, 60Hz: 17W, 0.3A operating, 0.2A inrush
• AC power: Autoswitching 100V-240V 50/60Hz
• Weight: 4.4lbs (2kg)
• Size: 8.4in x 8.9in x 12.2in / 213mm x 225mm x 309mm
