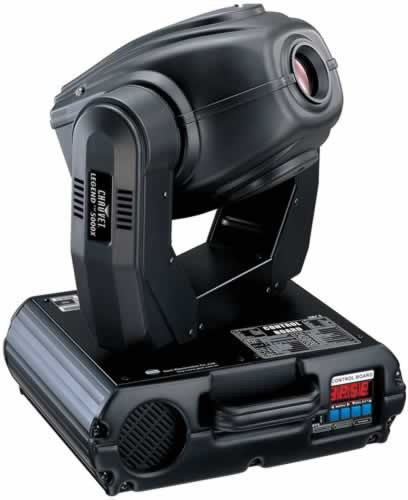

CONTROL FEATURES• 14 or 16-channel DMX-512 moving yoke
• Mechanical dimmer (0100%)
• Variable strobe/shutter
• First color wheel
• 11 colors + white
• Split colors
• Rainbow color spin in both directions at variable speeds
Second color wheel• 11 colors + white
• 1 CT filter, 4 solid, 4 split-colors & 2 quad colors
• Rainbow color spin in both directions at variable speeds
• Static gobo wheel
• 9 interchangeable gobos + open
• Gobo wheel spin in both directions at variable speeds
• Gobo Bounce'
• Indexing rotating gobos
• 6 interchangeable rotating + open
• 5 metal, 1 dichroic installed
• Additional gobos: 9 metal
• Gobos fully indexed
• Rotating gobo wheel spin in both directions at variable speeds
• 3-facet high speed rotating prism
• Mechanical iris
• Motorized focus
• Pan: 570 / Tilt: 270
• Remote fixture reset channel
• Lamp On/Off channel
ADDITIONAL FEATURES• Automatic pan & tilt correction
• Micro-stepping motors
• Lamp use timer
• LED display
• Display On/Off setting
• Built in demo progams
• User selectable 16-bit or 8-bit pan/tilt resolution
• Thermal switch
• Fan cooled
OPTIONAL CONTROLLERS:Any universal DMX-512 controller
SPECIFICATIONS• Gobo size:
- Static: 31 mm outside, 24mm image, 0.2mm max. thickness
• Beam angle: linear 15
• Bulb: HMI575/GS 575W 6000K 1,000hrs
• Current draw: (peak 936W @ 120V), (inrush 1,320W @ 120V)
• Power: Switchable (internal) 100V, 115V, 200V, 230V - 50/60Hz
• Weight: 71.5lbs (32.4kgs)
• Size: 16in x 16in x 24in
406mm x 406mm x 609mm
• 2-year limited warranty
