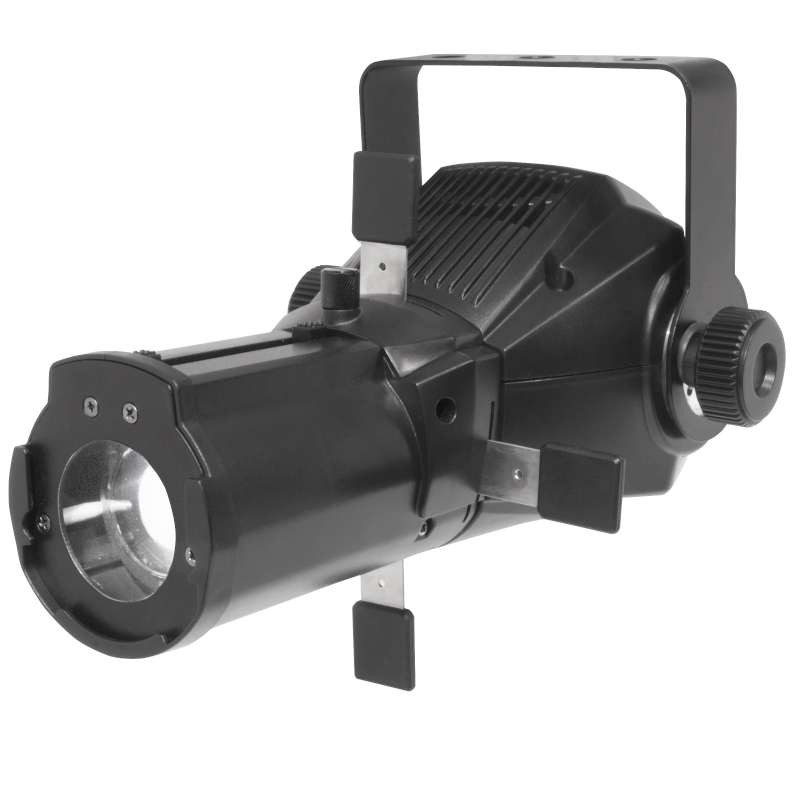

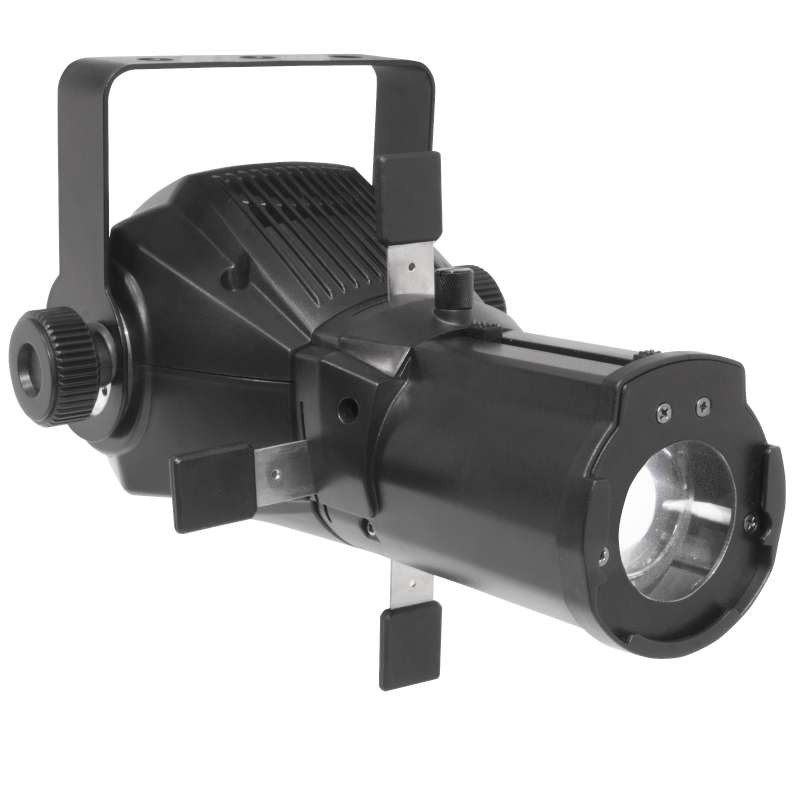

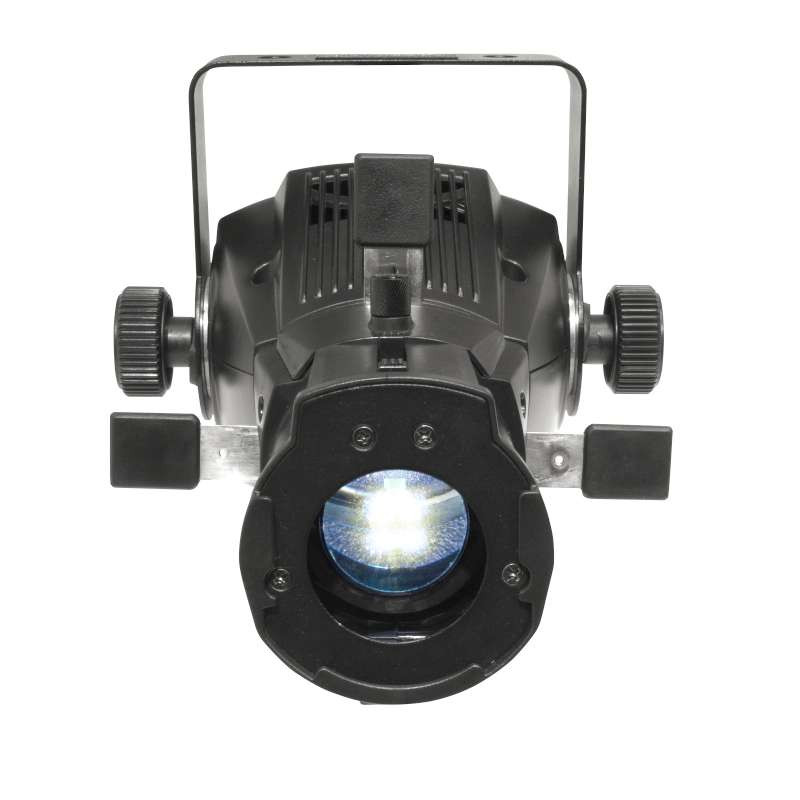

LFS-5D is a compact, easy-to-use framing spot light powered by a 23-watt white LED. Utilizing a 16- to 24-degree zoom and internal framing shutters, you can easily size and mask light off unwanted surfaces with precision. A single gobo slot houses one of four included gobos, or a custom-made version. Nearly any color can be achieved with its removable gel frame.
FEATURES:• Compact, LED framing spot shines a hard-edged beam perfect for gobo projection
• Fade the LED by connecting to a dimmable circuit such as the DMX-4 LED
• Highlight areas by altering the projected beam with framing shutters
• Easily print your own gobos on transparency film
• Flexibility to project from any distance using the 16 to 24 zoom range
• Includes four popular gobos to complement a variety of events
• Save time running cables and extension cords by power linking multiple units
• Easily transports in the CHS-40 VIP Gear Bag
SPECIFICATIONS:• Gobo Size: 25.4 mm outside, 19 mm image, 1 mm max thickness (size V)
• Light Source: 1 LED (white) 23 W (15.3 A), 50,000 hours life expectancy
• Zoom Angle: 16 to 24
• Illuminance: 1,990 lux @ 2 m
• Power Linking: 23 units @ 120 V; 45 units @ 230 V
• Input Voltage: 120 VAC, 60 Hz; 230 V, 50 Hz
• Power and Current: 52 W, 0.4 A @ 120 V, 60 Hz
• Power and Current: 56 W, 0.2 A @ 230 V, 50 Hz
• Weight: 3.2 lb (1.5 kg)
• Dimensions: 12.7 x 8 x 9 in (325 x 205 x 229 mm)
• Approvals: CE
