Chauvet DJ MotionSet LED DJ Drape and Facade

Dropships Ships Directly From The Supplier
Chauvet DJ can usually ship this item directly to our U.S. customers after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
Affirm Financing
Future Pay
    • Buy Now and Earn 1199 PDJ Bucks ($11.99)! Applies only to registered, domestic U.S. customers. Exact value may vary once logged in.

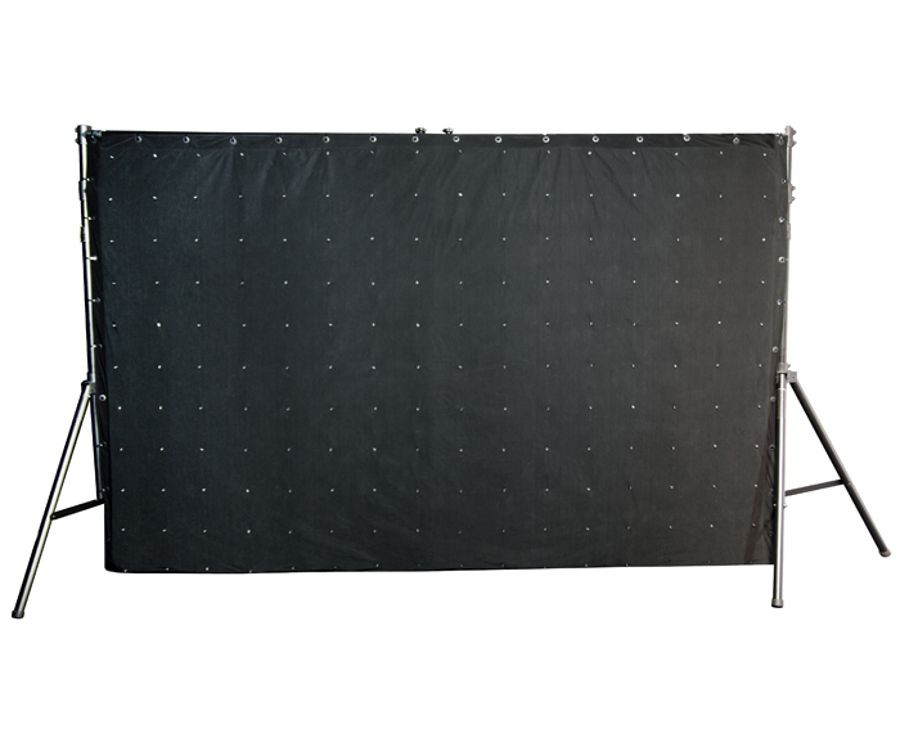

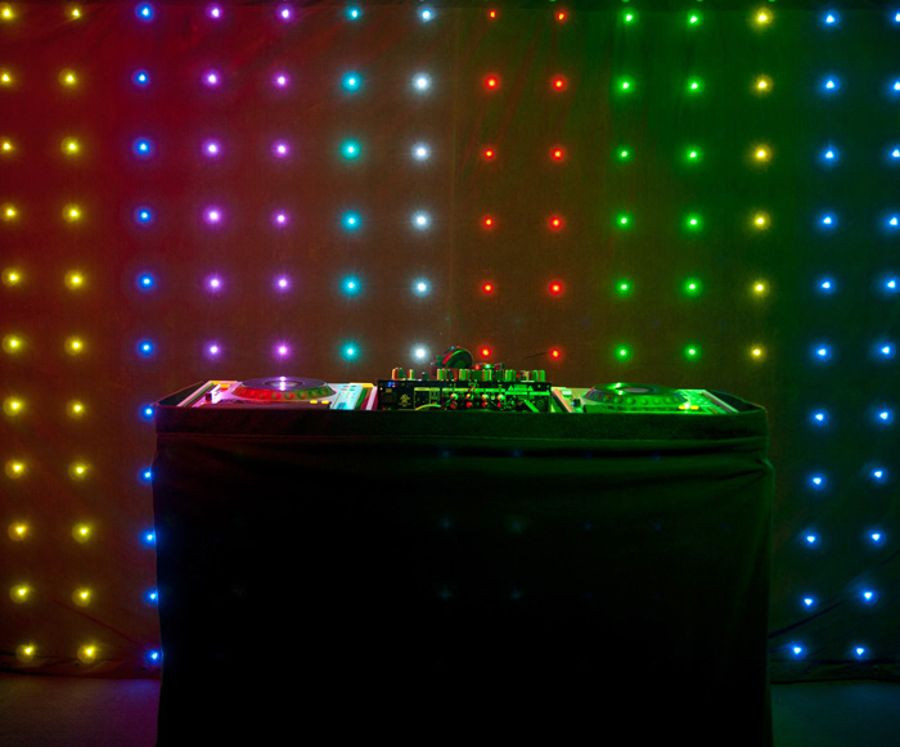

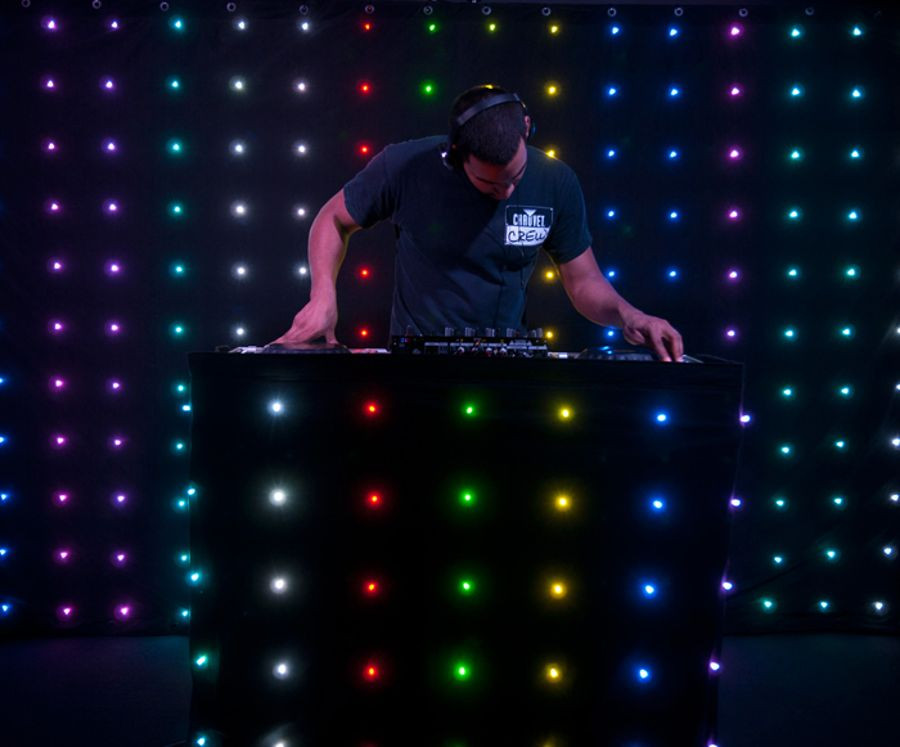

MotionSet' LED combines the popular 6.6 x 9.8ft (2 X 3m) MotionDrape' LED and 4 x 6.6ft (1.22 x 2m) MotionFaade' LED into one sizzling package for the mobile entertainer. Now with only one controller, you can easily control and synchronize the two products and create one amazing presentation.

• Create a professional set up at any mobile event with this set that combines the 6.6 x 9.8ft (2 x3m) MotionDrape' LED and 4 x 6.6ft (1.22 x 2m) MotionFaade' LED
• Simplify setup, operation and synchronization using a single controller for both products
• Wow your audience with 30 built-in patterns including a multicolor rain effect and simulated equalizer pattern
• Trigger effects using built-in, sound activation mode
• Easily select and activate your favorite programs with or without DMX 512 console
• Match the color scheme at any event with full RGB color-mixing capability
• Achieve full control over output with master dimmer capability
• Create customized looks using high-output, tri-color SMD LEDs and 8 channels of DMX control Mounts to truss and various stand applications using built-in grommets
• Manufactured from certified fire retardant material (NFPA)
• Convenient storage and transport using the included carry bag

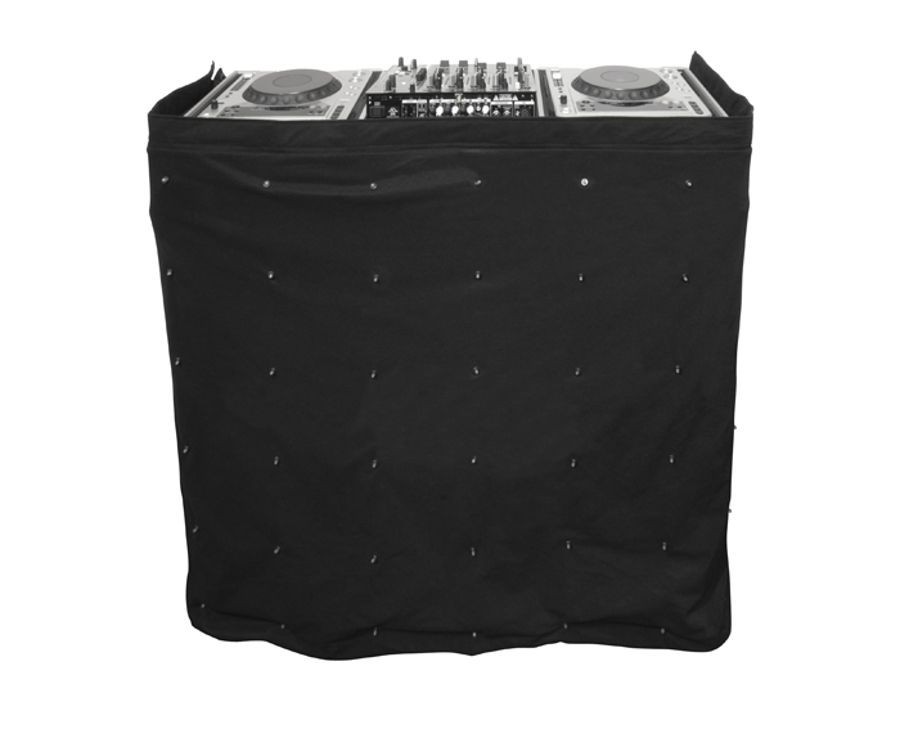

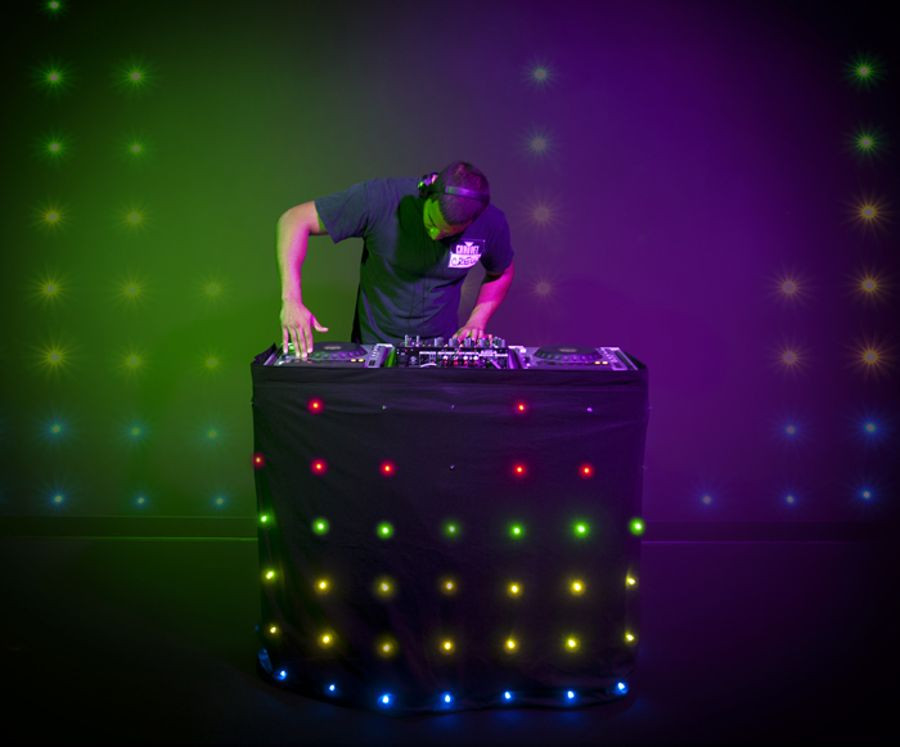

• Replace conventional front boards with MotionFaade' LED by attaching it directly to your coffin case or rack with sewn in Velcro' fasteners


• DMX Channels: 8
• DMX Connectors: 3-pin
• Light Source (MotionDrape'): 176 (tri-color) SMD LEDs 50,000hrs
• Light Source (MotionFacade'): 66 (tri-color) SMD (20mA) LEDs 50,000hrs
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 49W, 0.4A @ 120V 60Hz
• Power and Current: 57W, 0.2A @ 230V 50Hz
• Weight (Controller): 2.2lbs (1.1kg)
• Weight (Drapes): 13.7lbs (6.1kg)
• Size (Controller): 5.3 x 9.6 x 2in (135 x 243 x 50mm)
• Size (MotionDrape'): 6.6 x 9.8ft (2 x 3m)
• Size (MotionFacade'): 4 x 6.6ft (1.2 x 2m)
• Approvals: CE, MET, NFPA

Additional Information

ManufacturerChauvet DJ
Product ConditionNew
