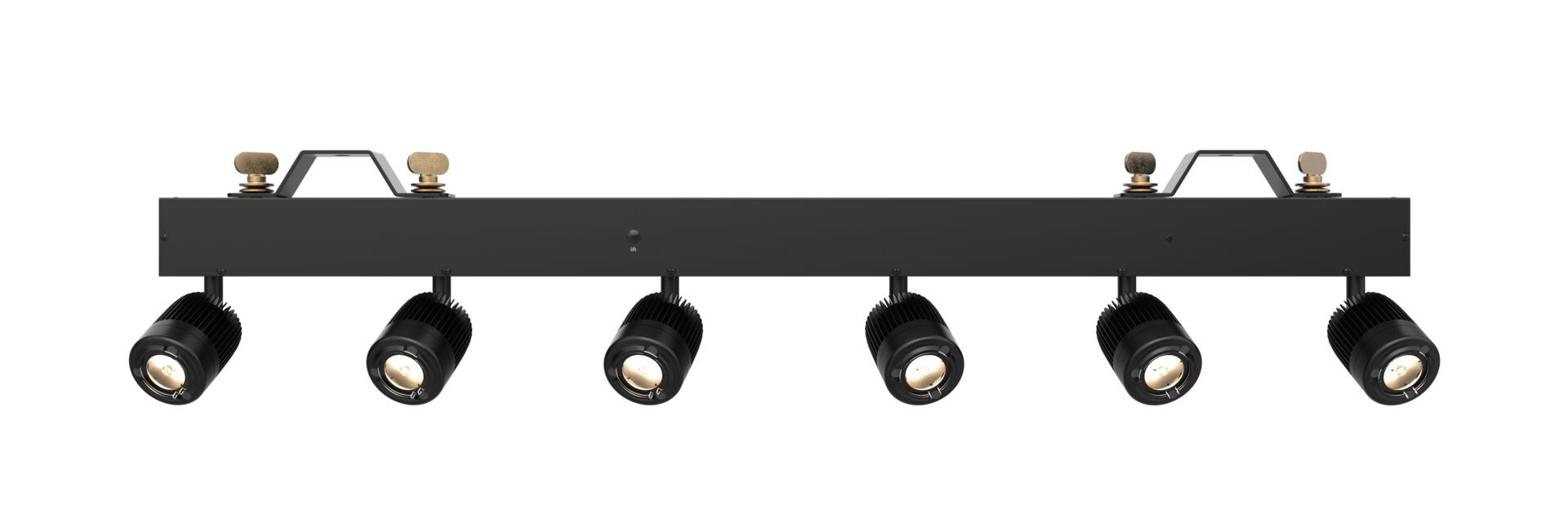

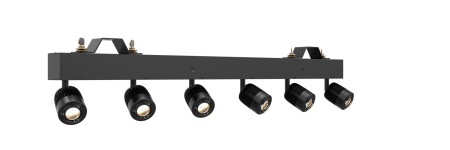

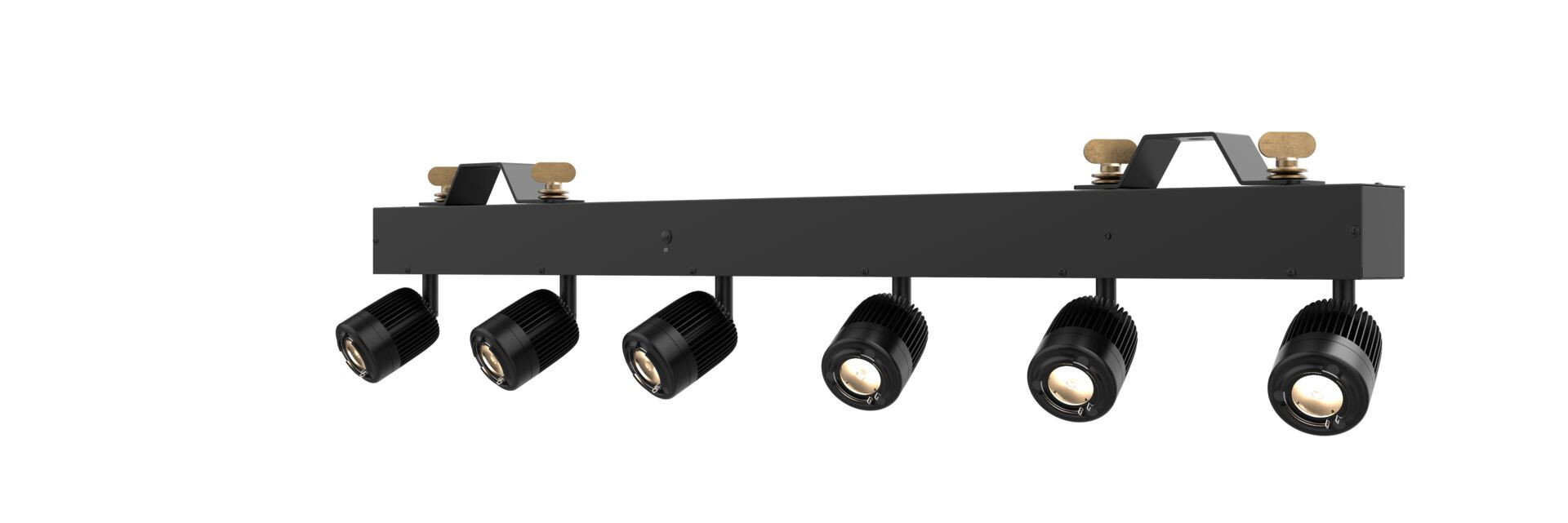

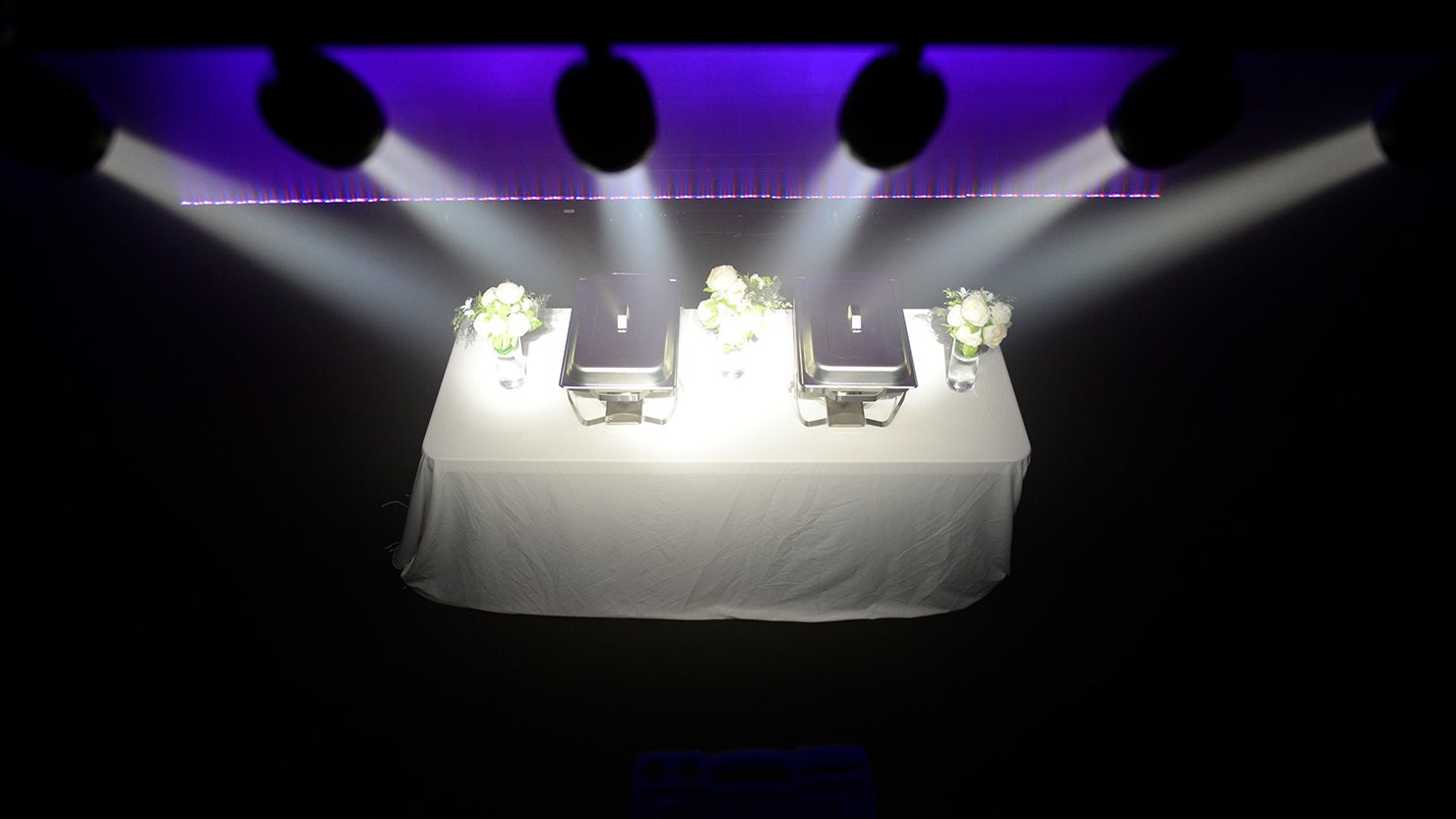

From creating subtle glows for appetizing buffets to lighting inspiring exhibits and highlighting special event elements, harness pinspotting power with Pinspot Bar. Pinspot Bar is a high-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps. Independent control of each head offers true flexibility and programming capabilities. Achieve a clean and elegant look for any upscale event with only a single PowerCon-compatible power inputno messy cablesalong with power linking capabilities that save time running cables to other fixtures. Pinspot Bar includes various beam diffusers and CTO filters to help achieve your desired look. A pair of included Omega brackets allow for multiple mounting options including pipe and drape. Control Pinspot Bar via the on-board digital display, DMX, wireless IRC-6 remote, or D-Fi USB dongle.
VIDEO
Features: • High-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps
• No messy cables ensure a clean and elegant look for any upscale event
• Independent control of each head offers true flexibility and programming capabilities
• Includes various beam diffusers and 2700 K filters to help achieve the desired look
• Control via the on-board digital display, DMX, a wireless IRC-6 remote or D-Fi USB dongle

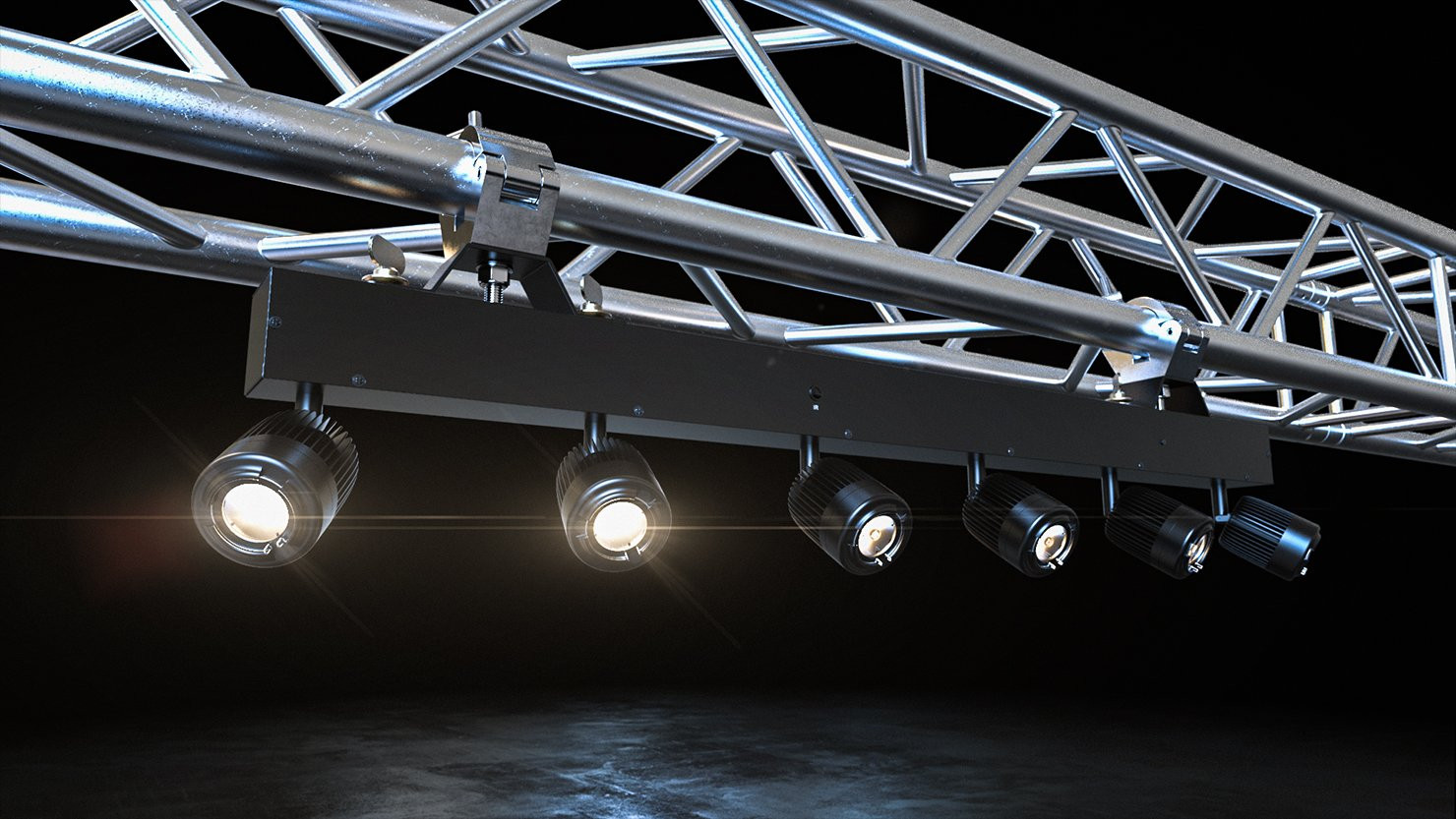

• A pair of included Omega brackets allow for multiple mounting options including pipe and drape

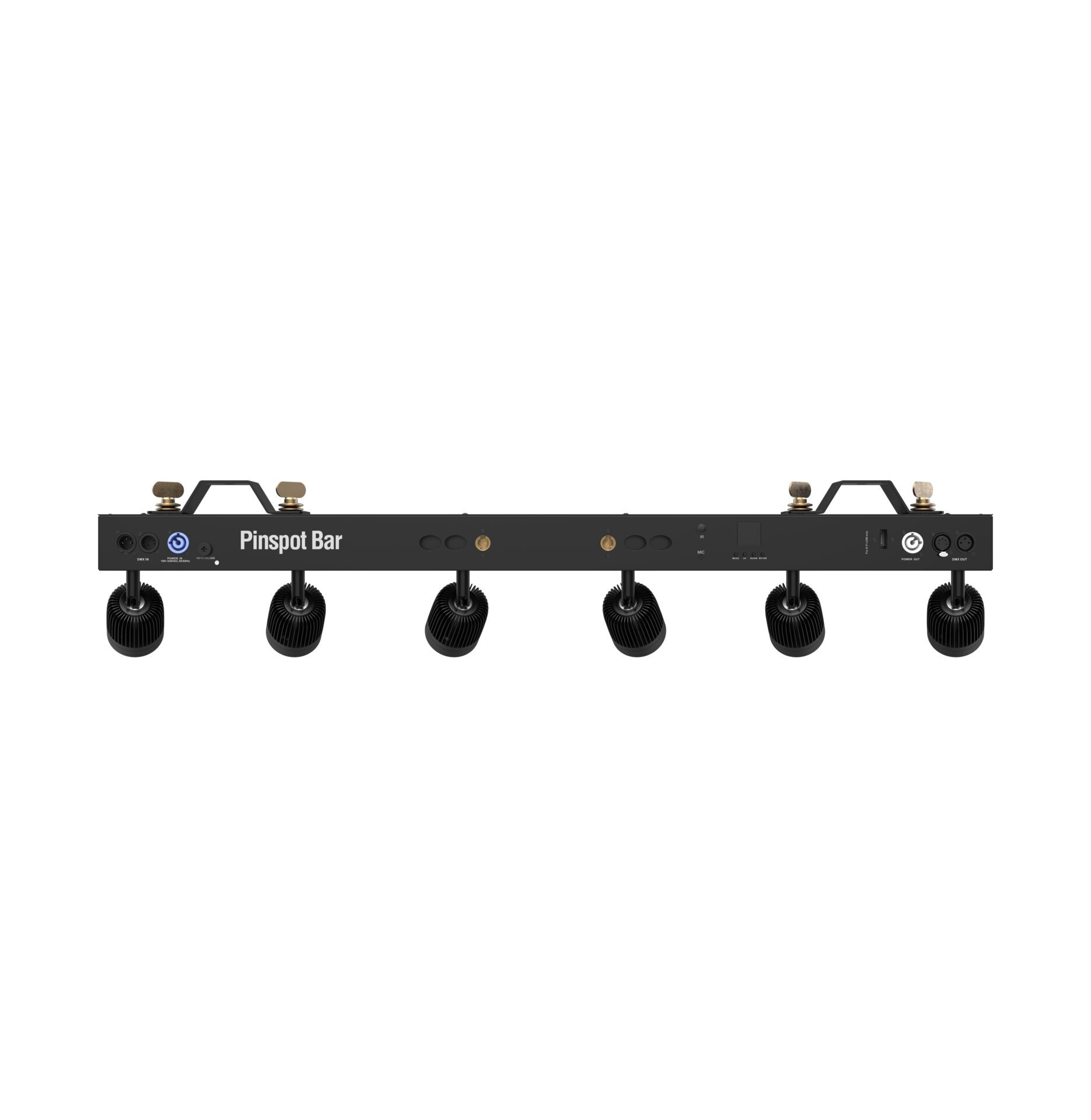

• PowerCon compatible power input and power linking saves time running cables
Specifications DMX Channels: 1, 6 and 11
DMX Connectors: 3- and 5-pin XLR
Light Source: 6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
PWM Frequency: 1000 Hz
Beam Angle: 5
Field Angle: 11
Illuminance: 7,707 lux @ 2 m (per pod)
Power Linking: 8 units @ 120 V; 13 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 171 W, 1.4 A @ 120 V, 60 Hz; 191 W, 0.8 A @ 230 V, 50 Hz
Weight: 9.4 lb (4.3 kg)
Size: 39 x 4.6 x 5 in (1000 x 119 x 131 mm)
Approvals: CE, RoHS
Color Temperature: 4000 K
CRI: 81
Bracket Mounting Hole: 13 mm
Optional Controllers: IRC-6, D-Fi USB
What's Included Pinspot Bar
Power cord
2 Omega Brackets
6 10 diffusers
6 20 diffusers
6 2700 K CTO filters
Quick Reference Guide
