FEATURES: • RGBW color mixing via DMX or manually
• Zoom control via DMX or manually
• Color temperature presets 3,200 to 10,000 K
• Built-in auto and custom programs recalled via DMX and Master/Slave
• 16-bit dimming of individual colors as well as master dimmer
• Selectable, smooth dimming curves for programming versatility
• Color macros with included speed adjustment
• Double-bracketed yoke doubles as a floor stand
• All environment operation with IP rated power and DMX connections
• 3- and 5-pin DMX input/output connections
• LED display with password protection
SPECIFICATIONS: Optical
• Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
• Color Temperature (range): 2,800 to 10,000 K
• Beam Angle: 7 to 29
• Field Angle: 14 to 44
• Zoom Angle: 14 to 44
• Illuminance (14): 7,180 lux @ 5 m
• Illuminance (44): 737 lux @ 5 m
• PWM Frequency: 1,200 Hz
Dynamic Effects
• Color Macros: 20 macros
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes
Construction / Physical
• Dimensions: 12.9 x 11.1 x 9.2 in (330 x 284 x 236 mm)
• Weight: 18.8 lb (8.6 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 9 in (229 mm)
Connections
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: DMX
• DMX Channels: 3, 4, 5, 6, 7, 12 or 17
• Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Power and Current: 220 W, 1.82 A @ 120 V, 60 Hz
• Power and Current: 225 W, 1.08 A @ 208 V, 60 Hz
• Power and Current: 228 W, 0.98 A @ 230 V, 50 Hz
Certifications / Qualifications
• CE, MET
• IP Rating: IP65, temporary outdoor/wet use
What's Included

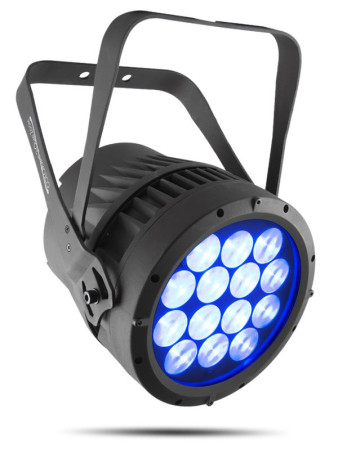

• COLORado 2-Quad Zoom
• Seetronic Powerkon IP65 power cord
• Gel frame holder (9 in/229 mm accessories)
• Gel frame
Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• 3- or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
