Features • RGBAW LED Batten for touring, rental, and production, indoors or out
• All environment operation with IP rated power and DMX connection
• Color temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility
• Built for touring, live event, television, and theatrical productions
• Large, easy to navigate display with password protection
Optical • Light Source: 72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy
• Color Temperature (range): 3200 to 10000 K
• CRI (3200 K): 80
• Installed Optics: 24
• Beam Angle (Horizontal): 22
• Beam Angle (Vertical): 18
• Field Angle (Horizontal): 39
• Field Angle (Vertical): 34
• Lumens: 3,631
• Illuminance (total): 1730 lux @ 5 m
• Selectable PWM: 600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz
Dynamic Effects • Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes
Construction / Physical • Dimensions: 39.37 x 6.14 x 2.95 in (1000 x 156 x 75 mm)
• Weight: 18.6 lb (8.4 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
Connections • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)
Control • Control Protocol: DMX, RDM
• DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
• 3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
• Modes/Personalities: 18 personalities
Electrical • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V
• Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz
• Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz
• Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz
Certifications / Qualifications • CE, MET
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)

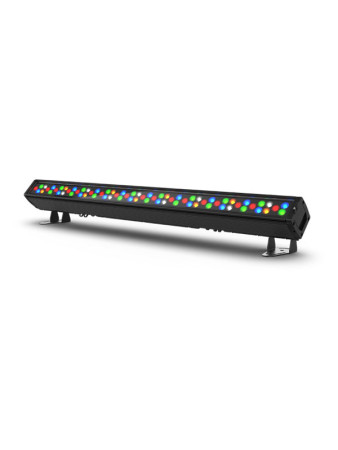

What's Included • COLORado Batten 72X
• Seetronic powerKON IP65 power cord
• (2) Omega bracket
Optional Accessories • Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik TRUE1 power linking cables
• 5-pin IP DMX Cables
