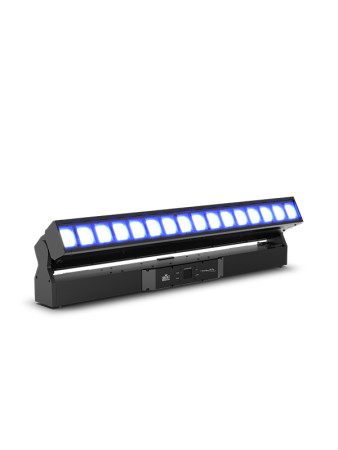

• IP65-rated motorized tilting batten with (16) 45 W RGBW LEDs with a 5.8 to 47.9 zoom range, maintains pixel pitch between fixtures.
• Quiet and quick operation of 200 tilt
• Quiet and quick operation of (2) section zoom
• Fully pixel mappable
• Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
• DMX, SACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 5.8 - 47.9 zoom range for variable beam sizes
• TRUE1 compatible power input/output ports
• IP65-rated 5 pin DMX and TCP/IP input/output ports
• IP65-rated USBc software upload port
• Slotted Omega brackets for easy hanging on truss
Optical• Light Source: 16 LEDs (quad-color RGBW) 45 W, (3.0 A), 8875 K, 50,000 hours life expectancy.
• Color Temperature (calibrated white): 6122 K
• CRI: 61.6
• Beam Angle: 5.8 to 30.4
• Beam Angle single cell: 4 to 29.9
• Field Angle: 8.9 to 42.2
• Field Angle single cell: 5.4 to 42.3
• Cutoff Angle: 10 to 47.9
• Cutoff Angle single cell: 6.1 to 45.5
• Zoom Range: 5.8 to 47.9
• Zoom Range single cell: 4 to 45.5
• Lumens (43.3): 8,959
• Illuminance (5.7): 27,415 lux @ 5 m
• Illuminance (43.3): 1,294 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects• Tilt: 200
• Tilt Ranges: 60, 180, 200
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Dim Modes: 2
• Dim Curves: 4
Construction / Physical• Dimensions: 39.37 x 5.47 x 10.75 in (1000 x 139 x 273 mm)
• Weight: 45.6 lb (20.7 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer
Connections• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)
Control• Control Protocol: Art-Net, Kling-Net, DMX, RDM, sACN
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 0 unit @ 120 V; 2 units @ 208 V; 2 units @ 230 V
• Power and Current: 790 W, 6.60 A @ 120 V, 60 Hz
• Power and Current: 771 W, 3.821 A @ 208 V, 60 Hz
• Power and Current: 768 W, 3.485 A @ 230 V, 50 Hz
Certifications / Qualifications• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• COLORado PXL Bar 16
• Seetronic Powerkon IP65
• 2 Omega bracket with mounting hardware
Optional Accessories• Clamps
• Neutrik powerCON cables
• Neutrik etherCON cables
• DMX Cables
• Upload_08 software uploader
• Flight cases
