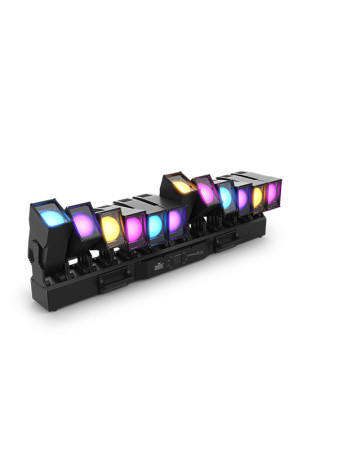

Features• IP65 batten with (12) 45W RGBW LEDs. (12) individually controllable tilting heads with a 5.7 to 36.3zoom range. Maintains pixel pitch between fixtures.
• Quiet and quick operation of 200 of tilt of each if (12) heads
• Quiet and quick operation of (12) individual zoom zones
• Fully pixel mappable
• Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
• DMX, SACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 5.7 to 36.3 zoom range for variable beam sizes
• TRUE1 compatible power input/output ports
• IP65-rated 5 pin DMX and TCP/IP input/output ports
• IP65-rated USBc software upload port
• Slotted Omega brackets for easy hanging on truss
SpecificationsOptical
• Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
• Color Temperature (range): 2700 to 8000 K
• Beam Angle Spot: 5.7
• Beam Angle Flood: 26.8
• Beam Angle 50% Zoom: 13.8
• Field Angle Spot: 9
• Field Angle Flood: 33.9
• Field Angle 50% Zoom: 19.2
• Cutoff Angle Spot: 9.9
• Cutoff Angle Flood: 36.3
• Cutoff Angle 50% Zoom: 21.6
• Zoom Range: 5.7 to 36.3
• Lumens: 5,807 lm
• Illuminance (Spot) : 38,727 lux @ 5 m
• Illuminance (Flood) : 1,120 lux @ 5 m
• Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects
• Tilt: 200
• Tilt Range: 60, 180, 200
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes
Construction / Physical
• Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)
• Weight: 76 lb (34.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel
Connections
• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
• DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
• Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
• Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
• Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
• Fuse: F12 A, 250 V
Certifications / Qualifications
• CE, MET, UKCA, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): 14 F to 113 F (-10 C to 45 C)
What's Included
• COLORADO PXL Curve 12
• (2) Omega brackets
• Seetronic Powercon IP65 power cord
Optional Accessories
• Professional Clamps
• Neutrik TRUE1 power linking cables
• 5-pin DMX Cables
• Ethercon Cables
