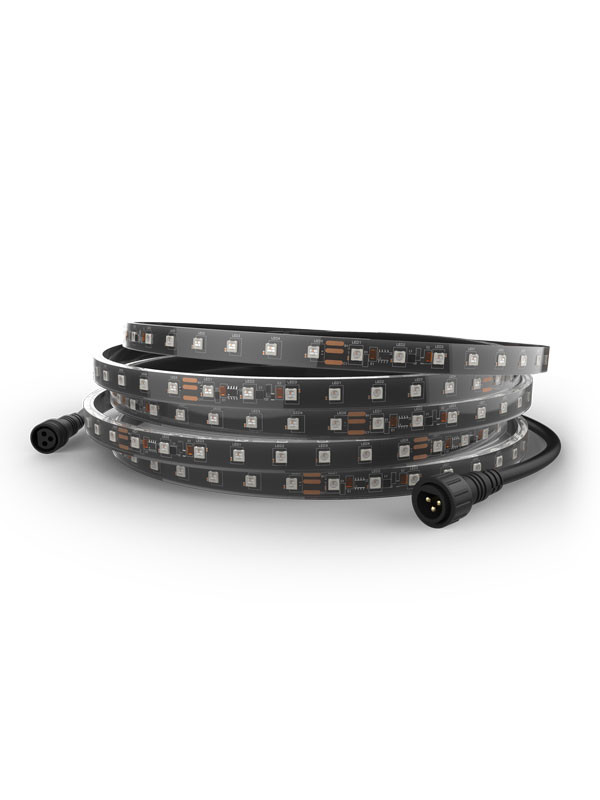

PIX Flex 20 is a durable, outdoor-rated LED flexible strip that extends 5 meters and can be cut and prolonged without compromising its IP67 rating. This allows it to line even the most complicated spaces. 240 individually controllable RGB LEDs allow for a variety of color-changing options that can be dimmed and brightened as you see fit, and pixel-mapped for showing video and/or motion graphics.
Optical• Light Source: 240 LEDs (tri-color RGB) SMD 50,000 hours life expectancy
• Lumens: 140 lm/ft
• Viewing Angle: 160
• Pixels: 240 x 1
• Pixel Pitch: 20 mm
Control• Control Protocol: Art-Net, sACN, DMX
• DMX Channels: 17, 34 or PIXEL
• Art-Net Channels: 17, 34 or PIXEL
Construction / Physical• Dimensions: 196.85 x 0.55 x 0.2 in (5,000 x 14 x 5 mm)
• Weight: 1.2 lb (0.6 kg)
• Exterior Color: Clear
• Housing Material: high temperature silicone with UV protection
Electrical• Power and Current: 79 W, 0.653 A @ 120 V, 60 Hz
• Power and Current: 93 W, 0.450 A @ 208 V, 60 Hz
• Power and Current: 95 W, 0.417 A @ 230 V, 50 Hz
Connections• Data Connectors: 3-pin IP65 FLEX cable
• Physical Linking: 2 PIX Flex 20 (per output) (4 total) (without PIX Flex Boost); 2 additional PIX Flex 20 with PIX Flex Boost (per output) (8 total)
Certification / Qualifications• CE, MET
• IP Rating: IP67, temporary outdoor/wet use
• Temperature (ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• PIX Flex 20
• Installation kit with 10 bracket sets
• Termination kit with end cap and silicone glue
Required Accessories• Controller (required): PIX Flex Drive
Optional Accesories• ArKaos Media Master Express + KN software
• Clamps
• DMX Cables
