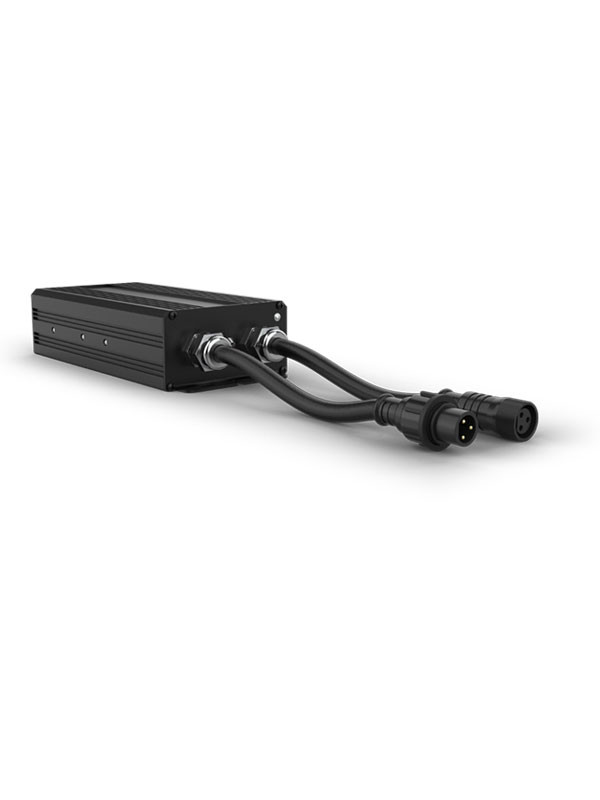

PIX Flex Boost is a 24V in-line voltage booster that doubles the capacity of each output on the PIX Flex Drive and the quantity of PIX Flex 20 it controls. There is no need to solder into system with this plug-and-play operation.
Construction / Physical• Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)
• Weight: 4.4 lb (2 kg)
• Exterior Color: Black
• Housing Material: Aluminum
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 200 W, 1.6 A @ 120 V, 60 Hz
• Power and Current: 200 W, 0.87 A @ 230 V, 50 Hz
Connections• Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Device inputs: (1) 3-pin male IP Flex
• Device Outputs: (1) 3-pin female IP Flex
• Physical Linking: 2 inline PIX Flex 20
• Cable Length (signal): 1.16 ft (0.355 m)
• Cable Length (power): 5 ft (1.5 m)
Certification / Qualifications• CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valve
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
• MET Listing Number: E114016-1144
• US Safety: UL 8750
• Canadian Safety: CSA C22.2 No. 250.13-12
What's Included• PIX Flex Boost
• Seetronic Powerkon power cord
Required Accessories• Accessories (required): PIX Flex Drive
• Compatible Mounting Options: M12 Bolt/Clamp
Optional Accesories• Clamps
• IP Flex Cables
• Seetronic Powerkon cables
• DMX Cables
