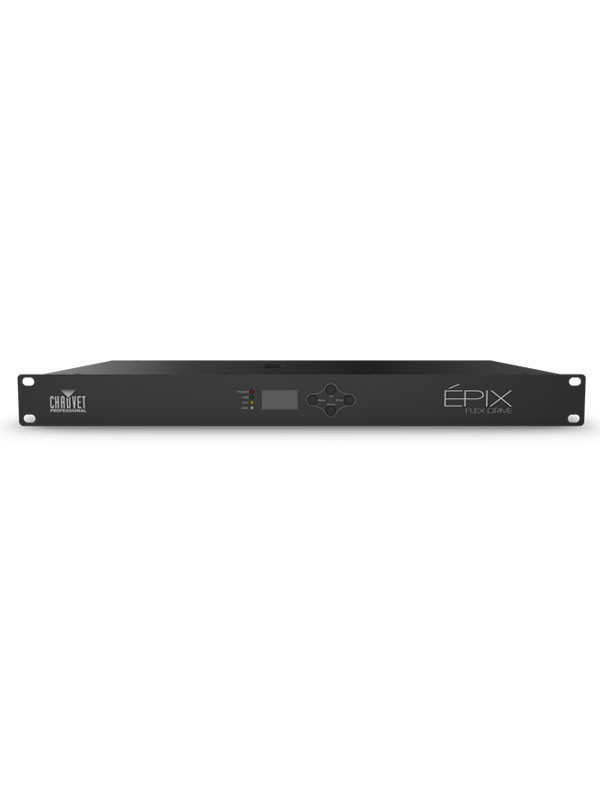

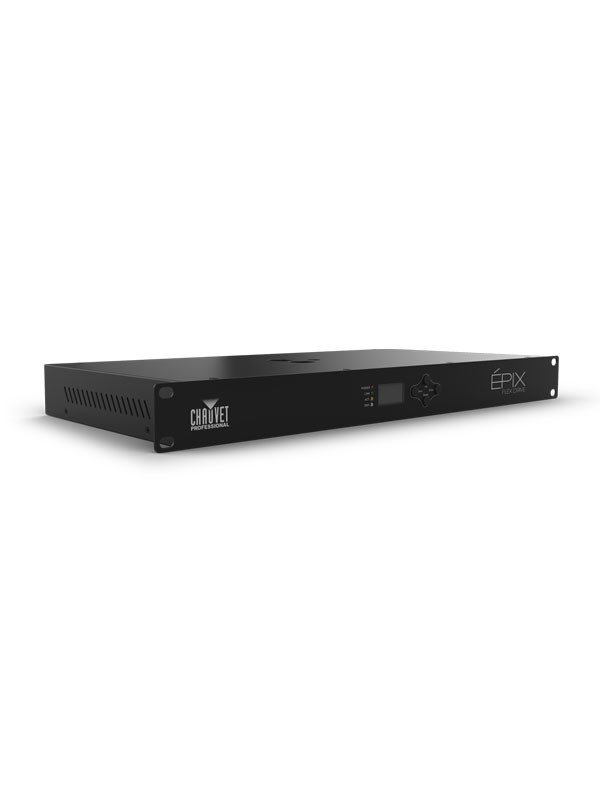

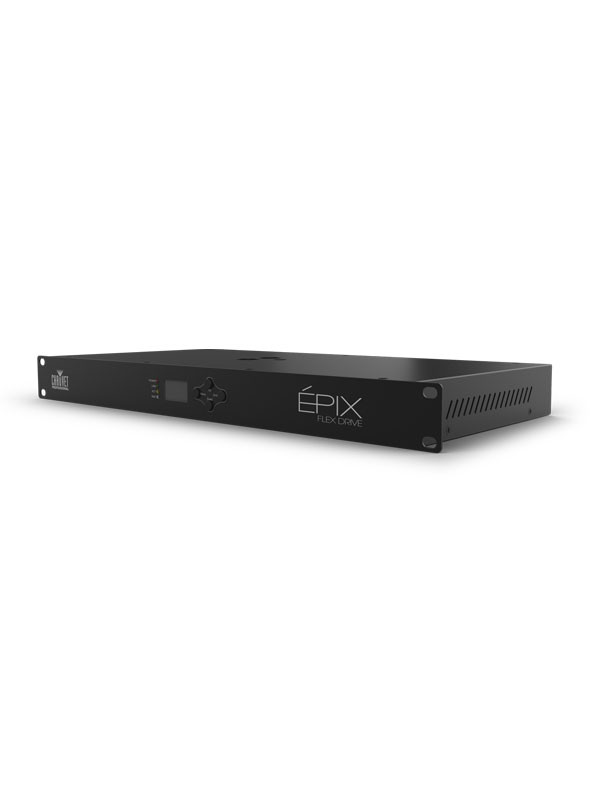

PIX Flex Drive controls the PIX Flex 20 with 2 plug and play outputs that drive up to 4 PIX Flex 20 at 960 LEDs each. Adding PIX Flex Boost to each output doubles the capacity of the drive to 1920 LEDs or 8 PIX Flex 20, which reduces cost per linear feet. To ease installation, PIX Flex Drive allows for 75ft of extension cables between it and the first PIX Flex 20. Use either pixel control or its simplified 17 / 34-channel control personalities to support changing colors and built-in automatic programs. Webserver is supported for remote configuration and for firmware updates.
Dynamic Effects• Standalone Color Mixing: Yes
• Built-in Automated Programs: Yes
Construction / Physical• Dimensions: 19 x 17.52 x 1.7 in (483 x 445 x 44 mm)
• Weight: 6 lb (2.7 kg)
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 326 W, 2.75 A @ 120 V, 60 Hz
314 W, 1.64 A @ 208 V, 60 Hz
312 W, 1.50 A @ 230 V, 50 Hz

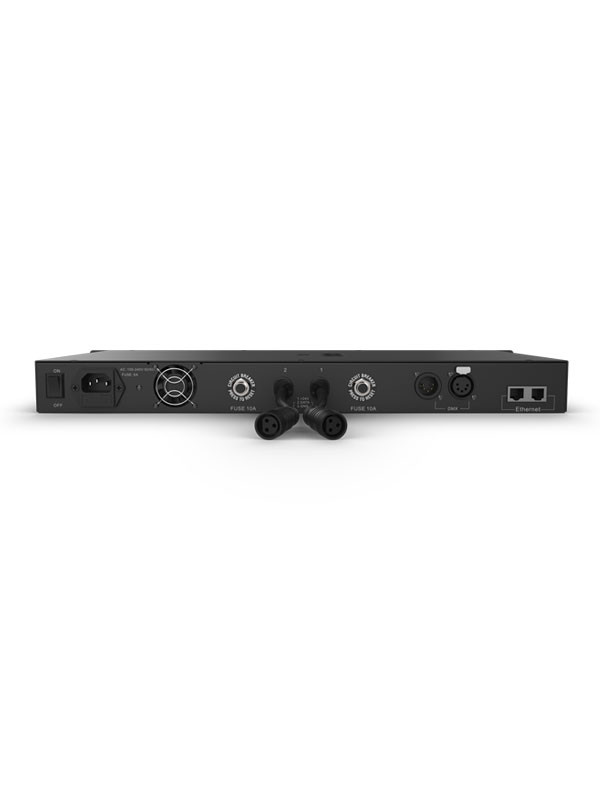

Connections• Power Connection: Edison (local) plug to IEC
• Power Input: IEC
• Cable Length (power): 5 ft (1.5 m)
• Device Data Inputs: Ethernet (RJ45) (2 total) and 5-pin XLR (2 total)
• Device Outputs (3-pin IP65 ports): 2
• Physical Linking per port (without Flex Boost): 2 inline PIX Flex 20 (with Flex Boost): 4 inline PIX Flex 20
• Total max. cable extension length (without Flex Boost) between PIX Flex Drive and first PIX Flex 20: 75 ft (22.9 m)
(with Flex Boost) between PIX Flex 20 and PIX Flex 20: 10 ft (3 m)
• Total max. cable extension length between PIX Flex Boost and PIX Flex 20: 5 ft (1.5 m)
Certification / Qualifications• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
• MET Listing Number: E114016-1144
• US Safety: UL 8750
• Canadian Safety: CSA C22.2 No. 250.13-12
What's Included• PIX Flex Drive
• IEC power cord
Optional Accesories• ArKaos Media Master Express + KN software
