Backward compatible with G3, G4, G4S, and G5 series, and able to operate both W-DMX and CRMX enabled products in G4S Mode. Configurable via Bluetooth with the W-DMX Configurator app. It also features a 5V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.
Features• Transmit and receive 1 universe of W-DMX, CRMX and RDM protocols
• Supports the W-DMX Configurator app over Bluetooth (downloadable from app store)
• Backward compatibility with G3, G4, G4S, and G5 series
• Can operate both W-DMX and CRMX enabled products in G4S Mode
• Supports active frequency hopping
• Power with included 5V USB power supply or (4) AAA batteries (not included)
• Batteries last for up to 8 hours in receiver mode and 4 hours in transceiver mode

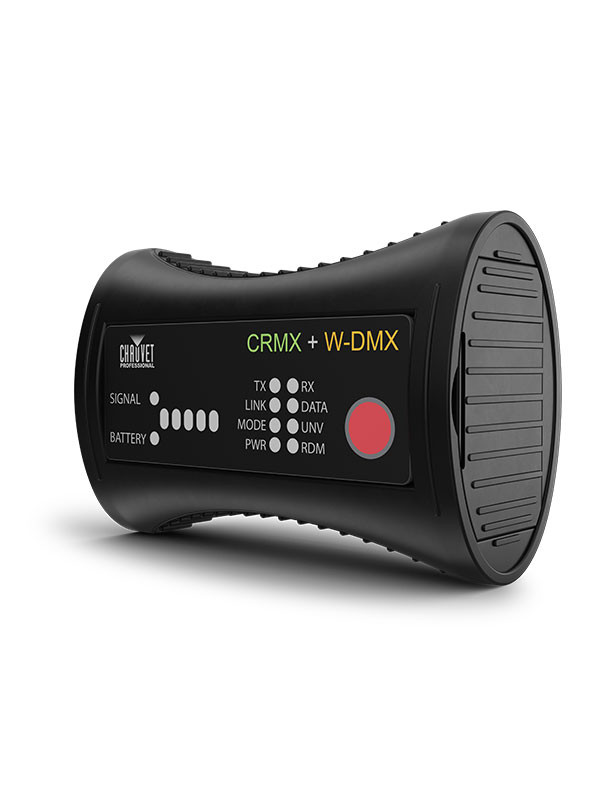

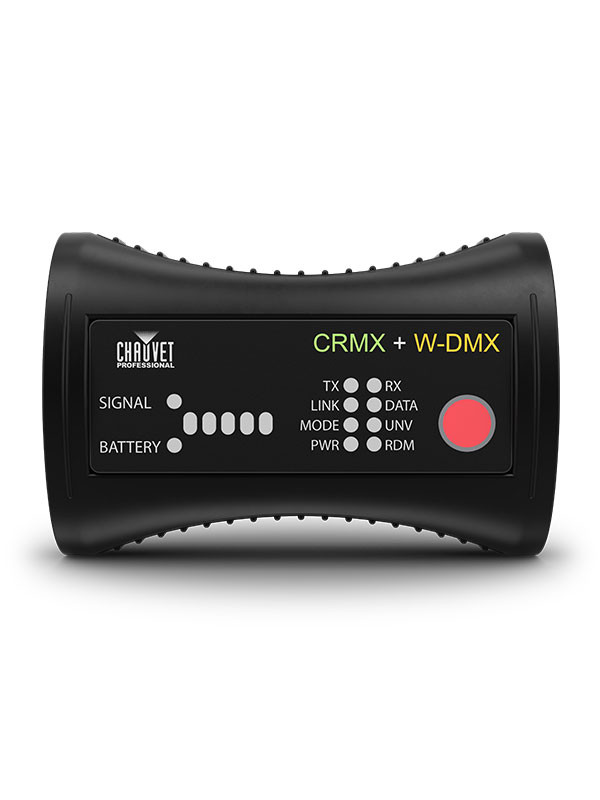

• Built in indicator lights for signal and battery strength, as well as operation modes
• Can be used directly with any Maverick or WELL fixtures
• Can be used to make any lighting system wireless for data
SpecificationsConstruction / Physical
• Dimensions: 3.94 x 1.57 x 2.65 in (100 x 40 x 65 mm)
• Weight: 1.67 lb (800 g)
• Exterior Color: dark gray
• Housing Material: High-impact flame-retardant polymer

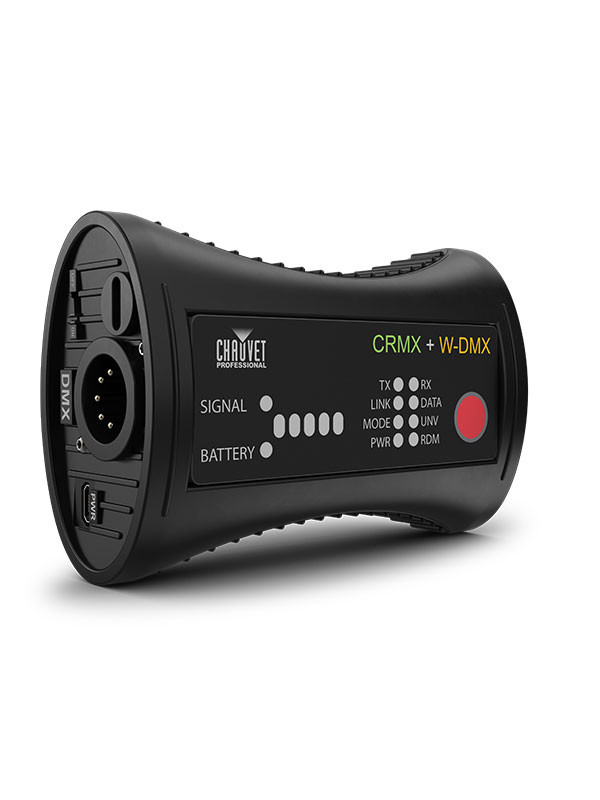

Connections
• Power Connection: 5V micro USB connector (micro B) to wall wart adapter
• Data Connectors: 5-pin XLR
Control
• Control Protocol: W-DMX, CRMX, RDM
• Frequency (operating): # 2.4 GHz
• Universes per device: 1
• Number of DMX channels: 512
• DMX Latency: <5 ms
• Max universe in coexistence: 16
• Error correction: yes
• DMX Fidelity: yes
• Adaptive Frequency Hopping: Yes
• W-DMX G3, G4, G4S, and G5 compatibility: Yes
• Standard range: up to 650 ft (200 m)
• Internal antenna: Yes
• Sensitivity (0.1% PER): -97 dBm
• Modulation method: GFSK
Electrical
• Input Voltage: 9 VDC 1000 mA, (external power supply: 100-230 V 50/60 Hz)
Battery
• Battery type: AAA
• Rechargeable: No
• Battery Life: 8 hours in receiver mode, 4 hours in transceiver mode
Certifications / Qualifications
• CE, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included
• W-DMX Micro T-1 TRX G6
• Micro USB to wall wart adapter
• User Manual
• Velcro attachment strap
