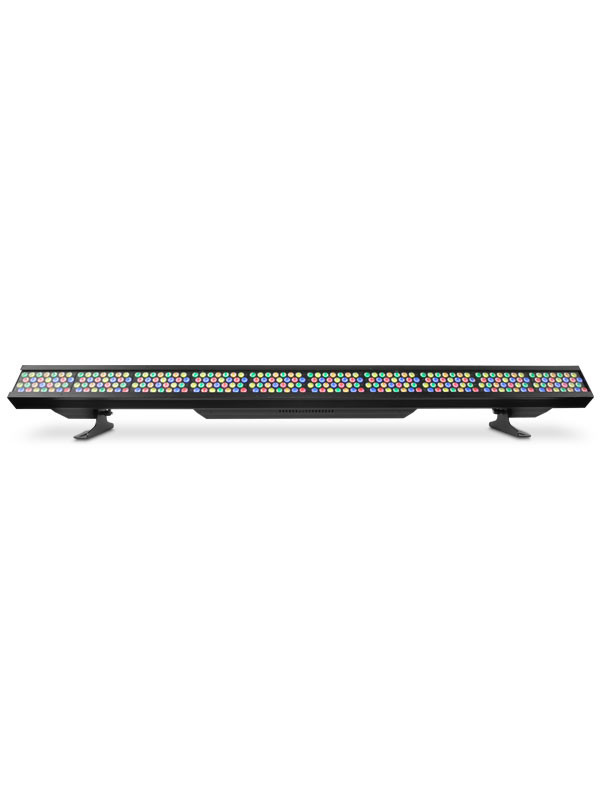

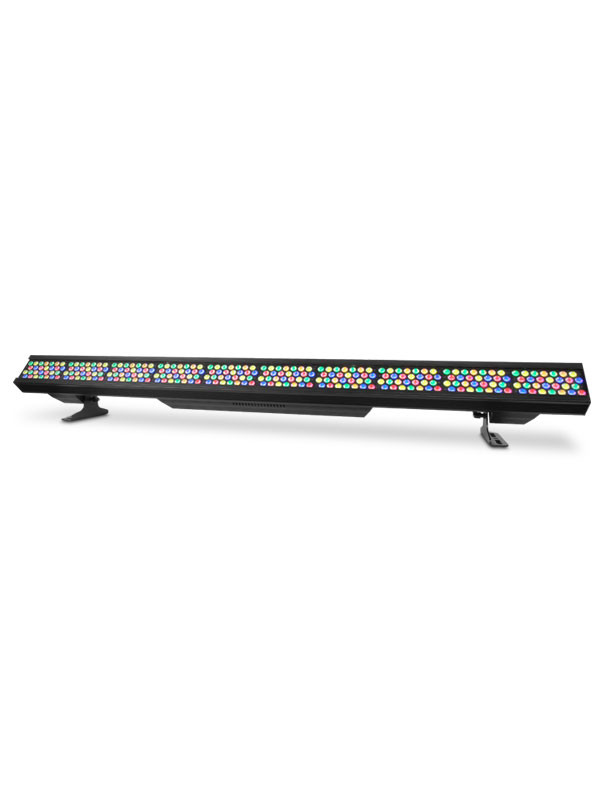

FEATURES:• Full Color LED (RGBAL) batten fixture for theatre, film and production
• Theatre-ready with 16-bit dimming of master dimmer and individual colors
• Multiple control personalities for complex programming schemes up to 10 sections of control

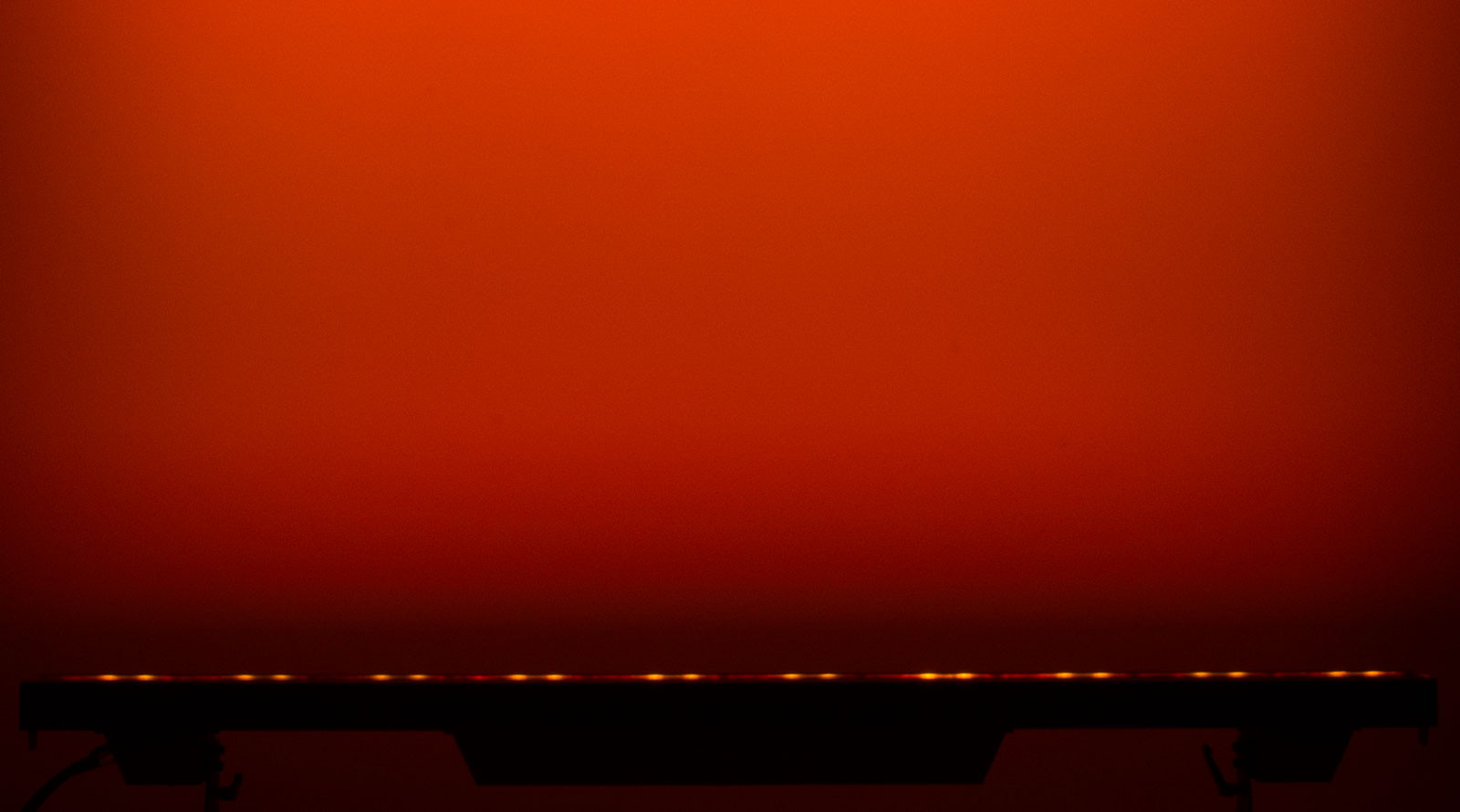

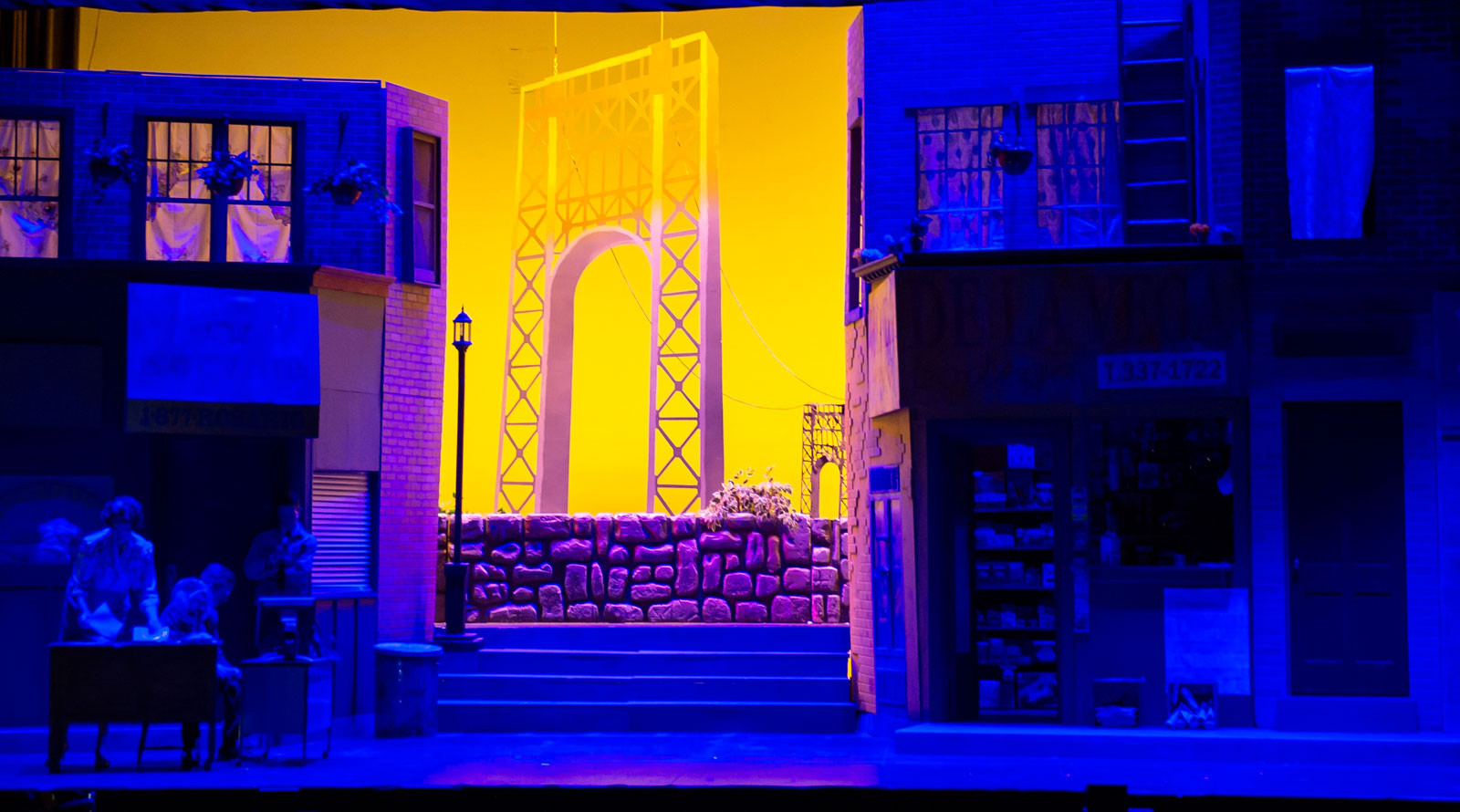

• Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing
• Virtual Color wheel with color matched to popular Rosco Gel colors
• Art-Net', sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
• Neutrik powerCON and Amphenol etherCON compatible connections for power and data linking
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Nearly silent operation for use in studio and theatre applications
SpecificationsOptical

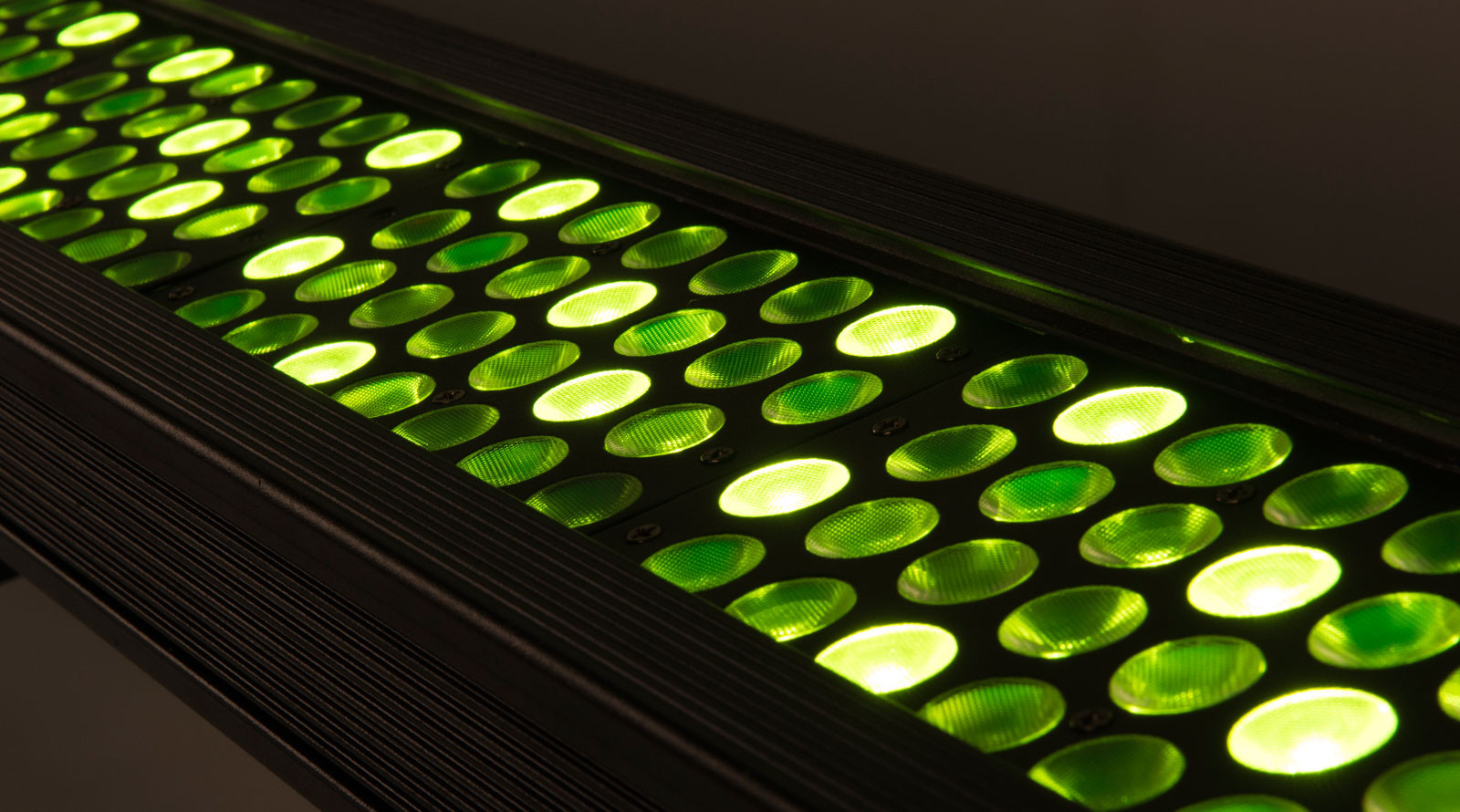

• Light Source: 280 LEDs (60 red, 60 green, 60 blue, 40 amber, 60 lime) 8 W, (740 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 K to 6500 K
• Installed Optics: 20
• Beam Angle (horizontal): 25
• Beam Angle (vertical): 20
• Beam Angle (horizontal w/filter): 52
• Beam Angle (vertical w/filter): 20
• Field Angle (horizontal): 42
• Field Angle (vertical): 40
• Field Angle (horizontal w/filter): 83
• Field Angle (vertical w/filter): 40
• Illuminance: 5,586 lux @ 5 m
• Illuminance (w/filter): 2,320 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
Dynamic Effects
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

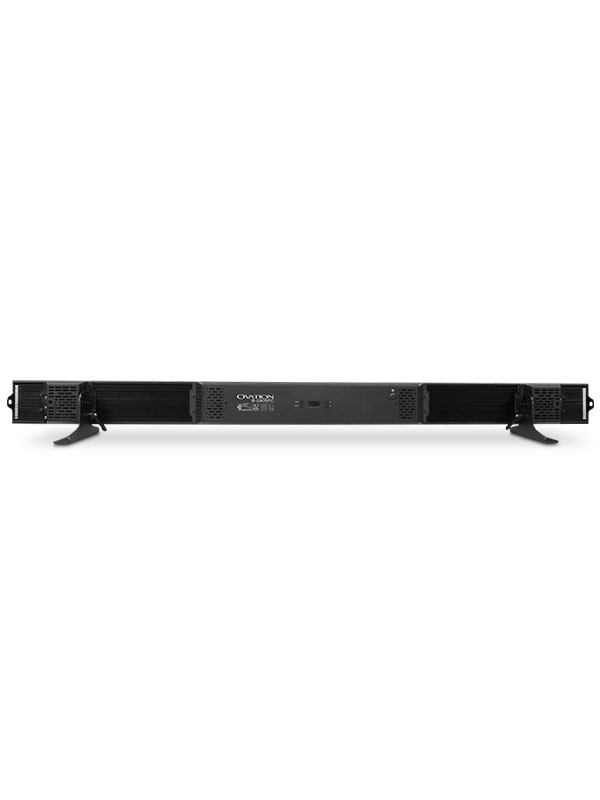

Construction / Physical
• Dimensions: 69 x 8.26 x 8.13 in (1,753 x 210 x 207 mm)
• Weight: 45.4 lb (20.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 68.90 x 3.66 in (1,750 x 93 mm)
Connections
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR, Amphenol etherCON Compatible
• Cable Length (power): 5 ft (1.5 m)
Control
• Protocol(s): Art-Net', DMX, RDM, sACN
• DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 - 5 Cell:15, 20, 25, 33, 38, 43, 50, 70 - 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135
• Art-Net' Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 - 5 Cell:15, 20, 25, 33, 38, 43, 50, 70 - 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135
• Modes/Personalities: 32 personalities
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 3 units @ 208 V; 4 units @ 230 V
• Power and Current: 620 W, 5.16 A @ 120 V, 60 Hz
• Power and Current: 601W, 2.98 A @ 208 V, 60 Hz
• Power and Current: 597 W, 2.76 A @ 230 V, 50 Hz
Certifications / Qualifications
• CE, MET
• IP Rating: IP20, dry location
What's Included

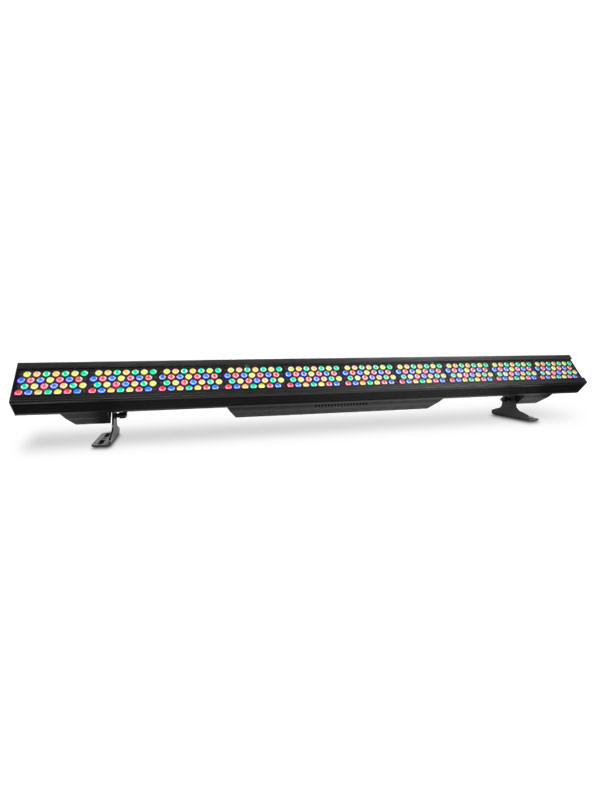

• Ovation B-2805FC
• Neutrik powerCON power cord
• Wall Washing Filter
Optional Accessories
• CTC-50HC
• CTC-50HCN
• Neutrik powerCON cables
• Neutrik etherCON cables
• DMX Cables
