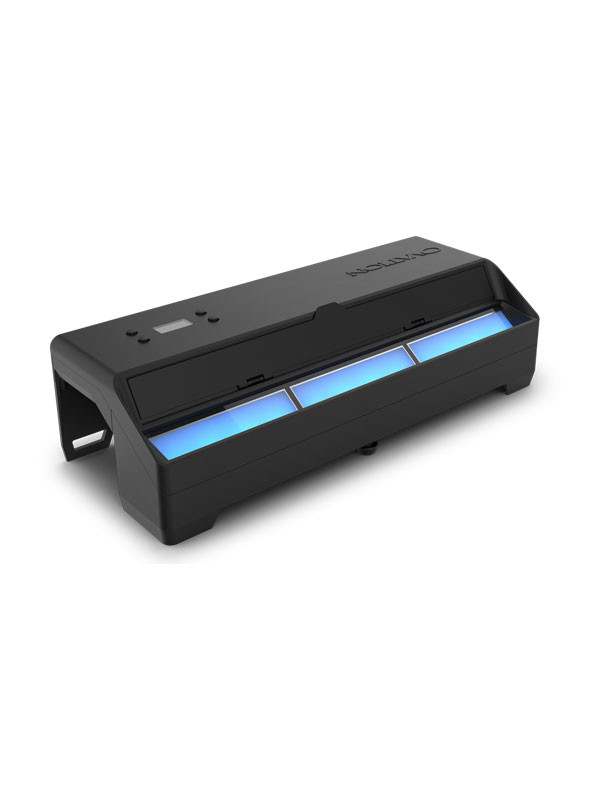

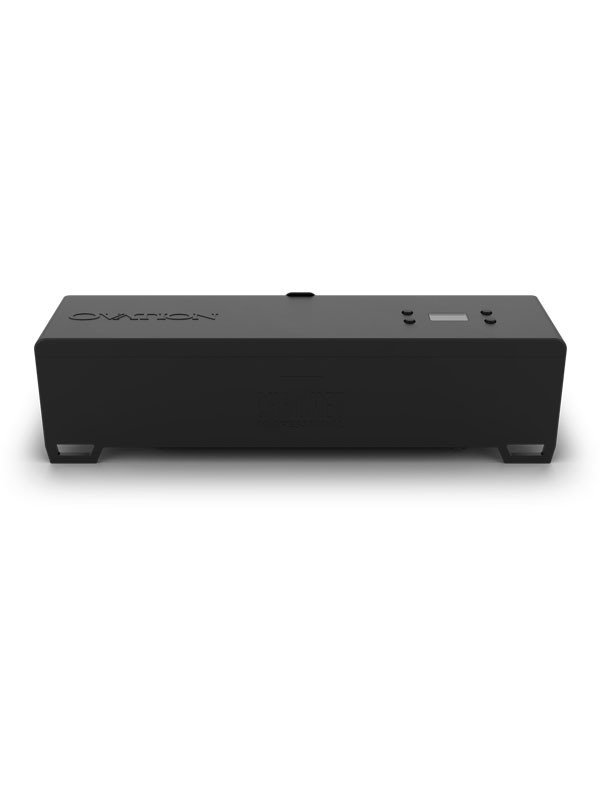

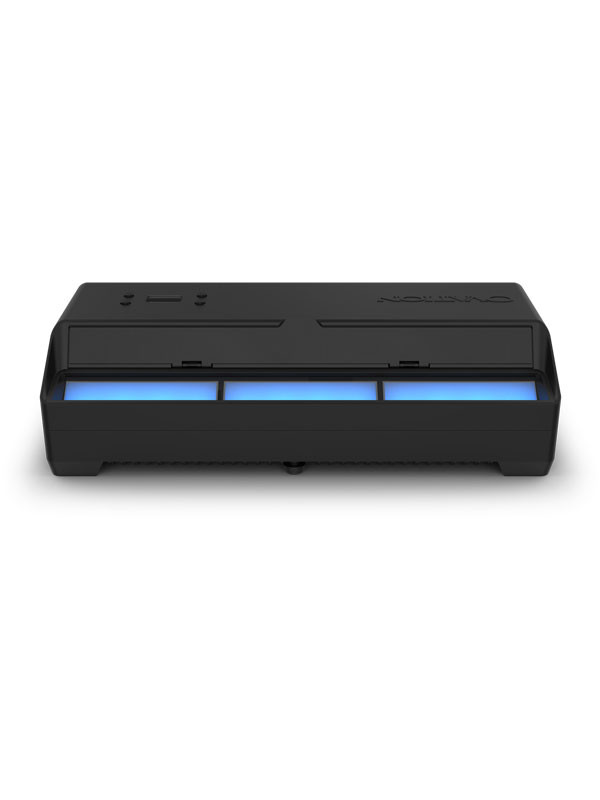

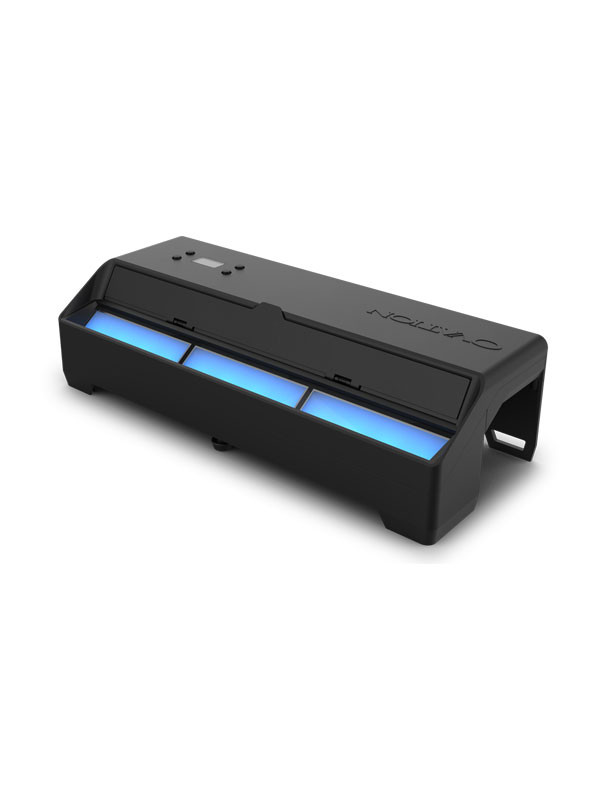

• Low-profile and lightweight cyclorama wash or footlight fixture
• Display a full spectrum of hues with RGBAL LEDs for theatre, film and production
• Theatre-ready with 16-bit dimming of master dimmer and individual colors
• Beam modification with built in "kick stand" and adjustable glare shield
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular gel colors and color temperature presets
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Silent operation for use in studio and theatre applications
Optical• Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 6500 K
• CRI (3200 K): 90.6
• Beam Angle: 81.1 (Horizontal)
• Beam Angle: 87.1 (Vertical)
• Field Angle: 124.6 (Horizontal)
• Field Angle: 148.1 (Vertical)
• Lumens: 8,966
• Illuminance: 210 lux @ 5 m
• PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz
Dynamic Effects• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No
Construction / Physical• Dimensions: 16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
• Weight: 9 lb (4.2 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
Connections• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control• Control Protocol: DMX, RDM
• DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
• Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16 HSV)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
• Power and Current: 139 W, 1.14 A @ 120 V, 60 Hz
• Power and Current: 137 W, 0.64 A @ 208 V, 60 Hz
• Power and Current: 137 W, 0.58 A @ 230 V, 50 Hz
Certifications / Qualifications• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• OVATION CYC-1FC
• Neutrik powerCON power cord
• Omega bracket with mounting hardware
Optional Accessories• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX Cables
