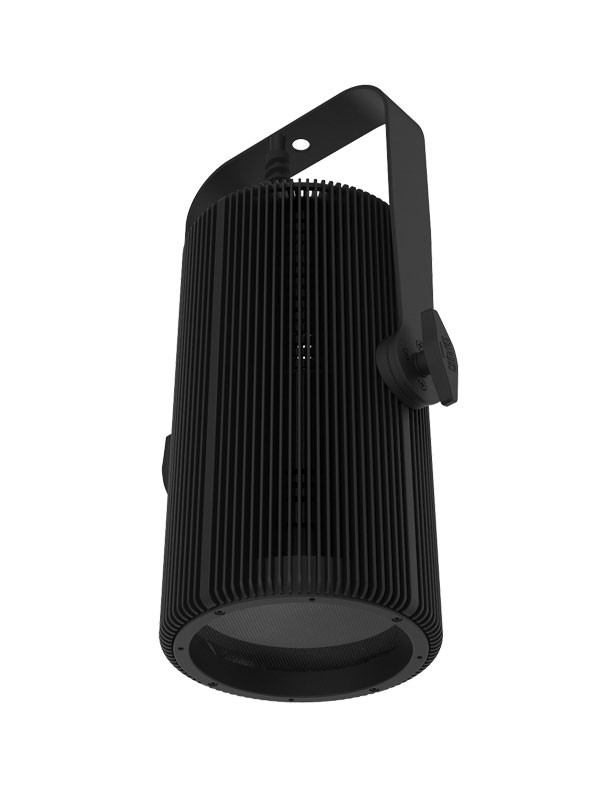

• High-power warm white, convection cooled houselight
• Interchangeable lens plates to adapt to different mounting heights

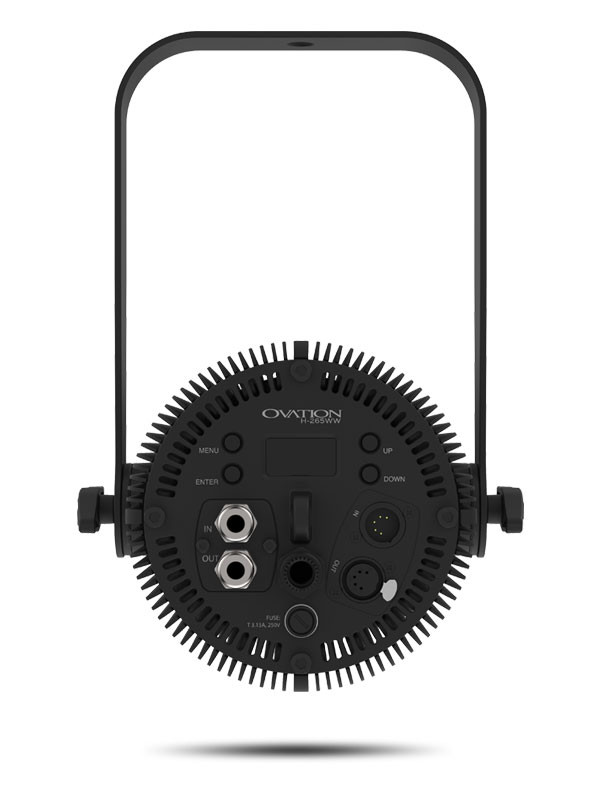

• 5-pin XLR and terminal blocks for DMX connections

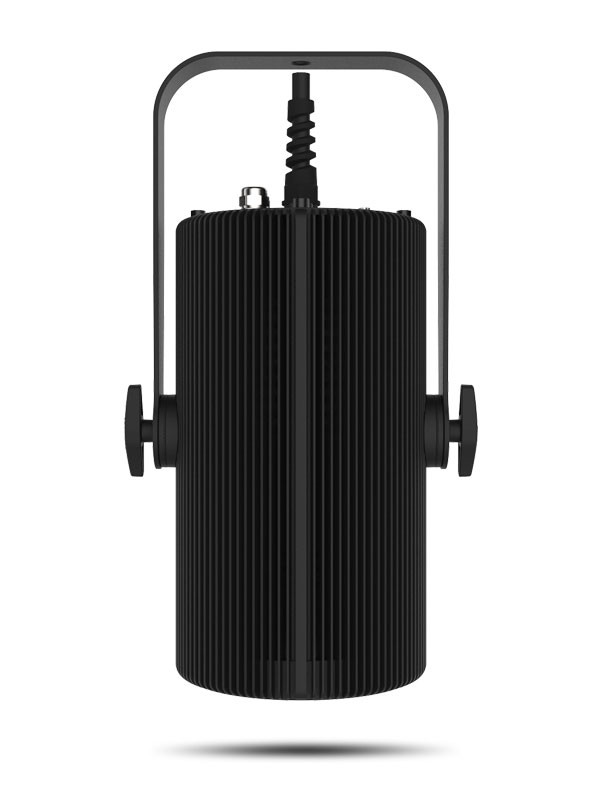

• Use included yoke for mounting, or suspend from integrated loop-eye
• 16-bit dimming for ultra-smooth fades
• DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Optical• Light Source: 1 LEDs (WW) 230 W, (2.3 A), 3258 K, 50,000 hours life expectancy
• Color Temperature (at full): 3258 K
• CRI: 97
• Beam Angle (w/80 filter): 40
• Beam Angle (w/65): 50
• Beam Angle (w/45 lens): 39
• Beam Angle (w/25 lens): 19
• Beam Angle (w/80 filter): 40
• Field Angle (w/80 filter): 132.9
• Field Angle (w/45 lens): 69
• Field Angle (w/25 lens): 36
• Lumens (w/80 filter): 7,912
• Lumens (w/65 lens): 8,505
• Lumens (w/45 lens): 8,885
• Lumens (w/25 lens): 9,139
• Illuminance (w/80 filter) : 325 lux @ 5 m
• Illuminance (w/65): 400 lux @ 5 m
• Illuminance (w/45 lens): 623 lux @ 5 m
• Illuminance (w/25 lens): 1,933 lux @ 5 m
• Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25 kHz
Dynamic Effects• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes
Construction / Physical• Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
• Weight: 17.8 lb (8.1 kg)
Connections• Power Connection: Bare-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR, Phoenix connector
• Cable Length (power): 15 ft (4.5 m)
Control• Control Protocol: DMX, W-DMX, RDM
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1CH, 2CH, 3CH, 6CH)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 147 W, 1.21 A @ 120 V, 60 Hz
• Power and Current: 147 W, .694 A @ 208 V, 60 Hz
• Power and Current: 149 W, .641 A @ 230 V, 50 Hz
• Breaker Size: T3.15 A, 250 V
Certifications / Qualifications• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• Ovation H-265WW
• 65, 45 and 25 Lenses
• 80 Filter
• Egg Crate
Required Accessories• RDM2go or other RDM capable interface for fixture set-up
Optional Accessories• W-DMX Transmitter
• Professional Clamps: CTC-50HC, CTC-50HCN
• 5-pin DMX Cables
• RDM2go
