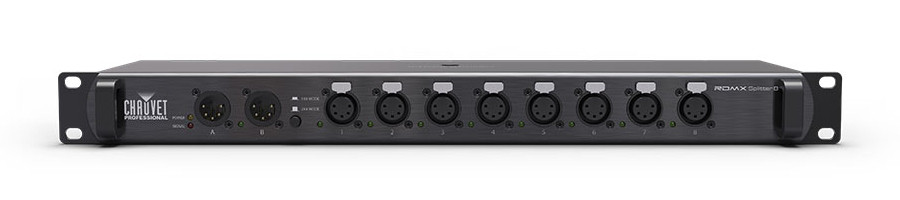

RDMX Splitter 8 is a versatile RDM and 5-pin DMX opto-splitter with a rugged, durable housing. It features 8 outputs and 2 inputs, so it can instantly go from a 18 splitter to a 24 splitter for two different universes. To simplify installation next to existing fixtures, PowerCON power linking is also supported to make it easier than ever to isolate, amplify and split a signal. For added versatility, the unit can be either rack or trust-mounted and supports electrical isolation between inputs and outputs up to 1000 V between ports.
Features• Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button; or functions as a 2x4 A/B splitter
• Includes power linking to make it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are now easier than ever
• Rugged reinforced housing supports 1U rackmount and mounting to pipe and truss without additional accessories
• Electrical isolation between inputs and outputs up to 1,000 V between ports
• PowerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present
OpticalDimensions: 19 x 5.75 x 1.77 in (483 x 146 x 45 mm)
Weight: 4.2 lb (1.9 kg)
Exterior Color: Black
Housing Material: Steel and aluminum
Rackmount: 1U

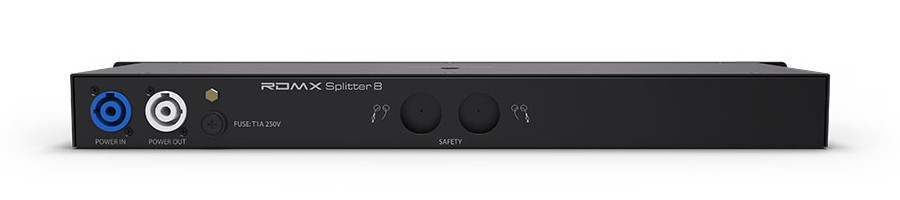

ConnectionsPower Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Device Data Inputs: 5-pin XLR (2 total)
Device Data Outputs: 5-pin XLR (8 total)
Cable Length (power): 5 ft (1.5 m)
ControlControl Protocol: DMX, RDM Pass-thru
Modes: 2 (1x8, 2x4)
ElectricalInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 15A
Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz
Certifications / QualificationsCE
IP Rating: IP20, dry location
Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
