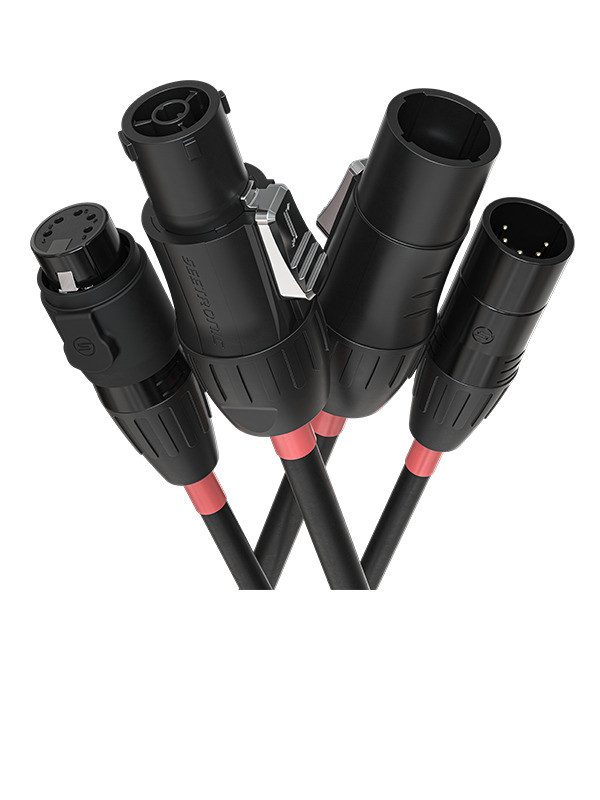

The Riglink 1.5' (18 inch) TR1 DMX Combo IP Cable from Chauvet Professional is an IP65-rated combo power and data cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic production-grade connectors.
• Power and data all through one cable.
• Ideal for both installations and touring.
• IP65 rated for outdoor use.
• Individually insulated for minimal interference.
• Color-coded connectors eliminate cable length guesswork
• Certified components meet worldwide safety standards
• Built rugged for live performance and life on the road
• Reliable transmission and robust connection systems
• Seetronic professional production grade connectors
• Cable lengths available in both meters and feet
Construction / PhysicalConductor Specification: 2 x 0.34mm2 (22AWG) & 3 x 2.07mm2 (14AWG)
Conductor Structure: OFC 19/0. 15TC & 66/0.20BC
Insulation Material: HDPE & PVC
Insulation OD: 1.4mm & 3.0mm
Filler: Cotton & PPR
Wrapping Tape: Non-woven fabric
Sheild Structure: Tinned copper wire, 82% AL, 100% coverage
Middle Quilt: PVC
Outer Jacket Material: PVC (Black)
Outer Diameter: 16.5 0.2mm
Temperature Rating: -20C 70C
IP65
ConnectionsSeetronic SAC3FX
Seetronic SCWM5-B
Seetronic SAC3MX
Seetronic SCWF5-B
ElectricalWithstand Voltage: 0.5/1.5 AC kV/min
Conductor Resistance: 25.98 O/km & 7.98 O/km
Capacitance between Connectors: 100pF/m
Conductor shiels capacitance: 180pF/m
Impedance: 110 O
CableMetric: 1m, 3m, 5m, 10m
Imperial: 1.5ft, 5ft, 10ft, 25ft
