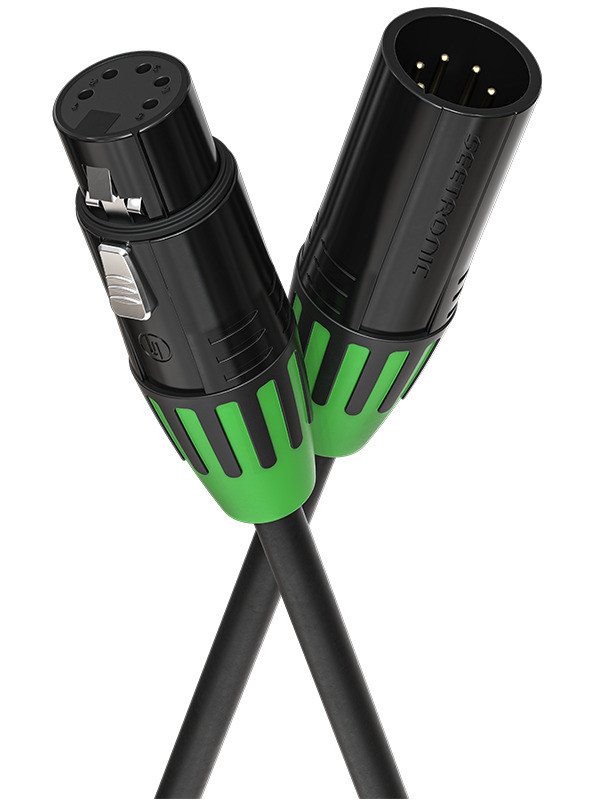

The Riglink 25' 5-Pin DMX Cable from Chauvet Professional is a durable production-grade DMX lighting cable designed for stable signal transmission in touring and permanent installations. It features a braided and aluminium foil double shielding design, ensuring optimal protection against interference.
• Designed for 110O DMX-512 applications.
• Utilizes low-dielectric constant LDPE insulation, offering low capacitance to meet precise impedance requirements for stable signal transmission.
• High-torsion tinned oxygen-free copper (OFC) with a twist rate achieving over 89% shielding effectiveness, enhancing resistance to external interference.
• Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body.
• Ideal for both installations and touring.
• Color-coded connectors eliminate cable length guesswork
• Certified components meet worldwide safety standards
• Built rugged for live performance and life on the road
• Reliable transmission and robust connection systems
• Seetronic professional production grade connectors
• Cable lengths available in both meters and feet
Construction / PhysicalConductor Specification: 2 x 0.22mm2 (24AWG)
Conductor Structure: OFC 20/0. 12BC
Insulation Material: LDPE
Insulation OD: 1.8mm
Shield Structure: OFC 16/8/0.1TC + AL
Outer Jacket Material: PVC (Black)
Outer Diameter: 6.0 0.2mm
Temperature Rating: -20C 70C
IP20
ConnectionsSeetronic SCM55-BG
Seetronic SCMF5-BG
ElectricalWithstand Voltage: 0.5kV
Conductor Resistance: 88.2 O/km
Capacitance between Conductors: 50 pF/m
Conductor and Sheild Capacitance: 122 pF/m
Impedance: 110 O
CableMetric: 1m, 3m, 5m, 10m, 20m
Imperial: 1.5ft, 5ft, 10ft, 25ft, 50ft
