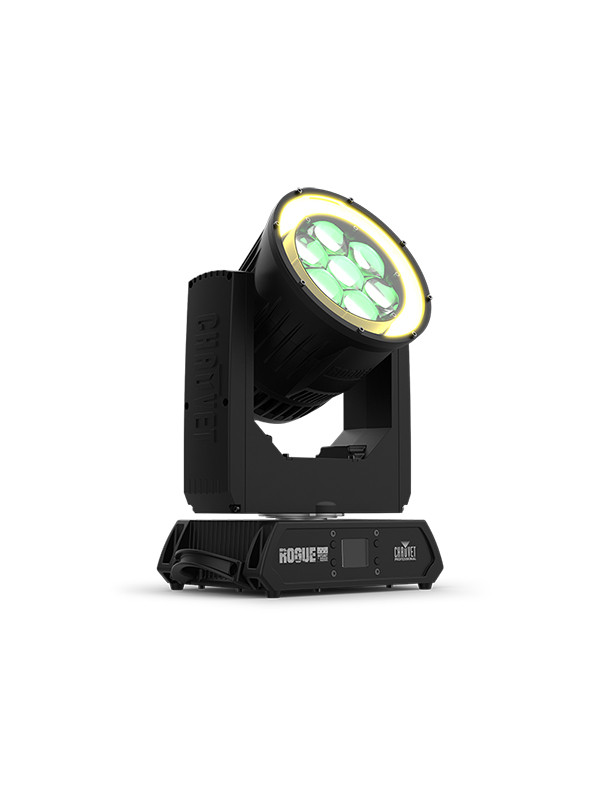

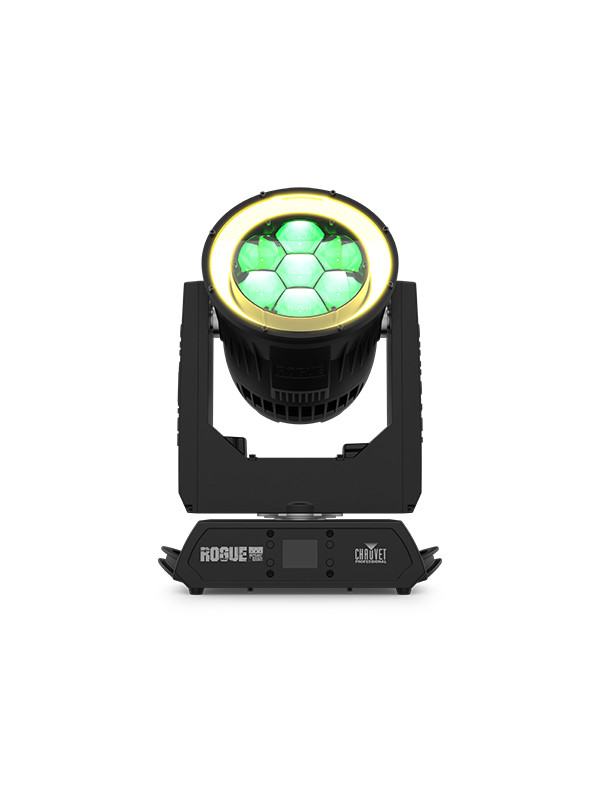

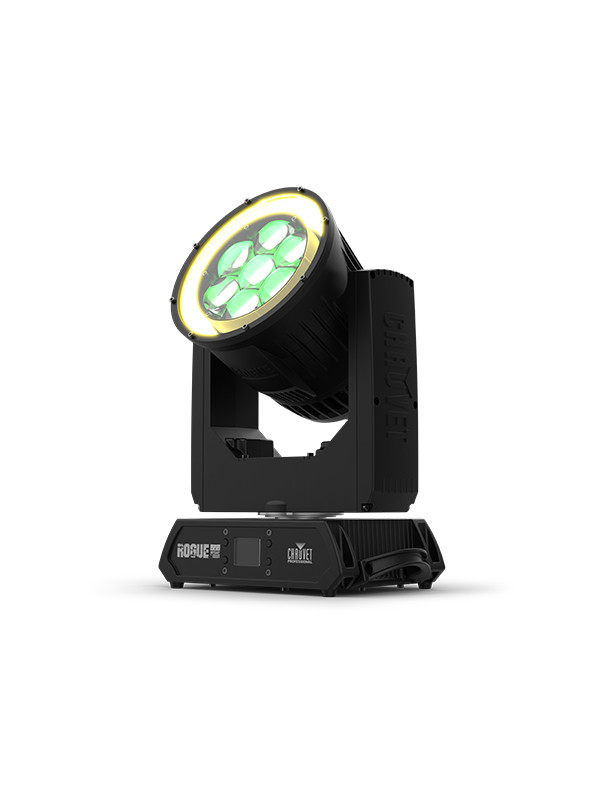

Seven 45W RGBW LED's combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control. The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter. Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colors. This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements. Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols. Update software easily with an onboard USB-C port.
Optical• Field Angle: 5.9 to 49.8
• Cutoff Angle: 6.7 to 55.3
• Zoom Range: 3.9 to 55.3
• Lumens Source: 5,900
• Lumens Output: 4,073
• Illuminance (3.9): 15,308 lux @ 5 m
• Illuminance (55.3): 473 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects• Pan and Tilt: 540/260
• Pan and Tilt Ranges: 180, 360, 540 pan/90, 180, 260 tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: yes
• Recall Custom Programs: No
Construction / Physical• Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
• Weight: 20.2 lb (9.16 kg)
• Exterior Color: Black
• Housing Material: Magnesium aluminum diecast, high impact, flame-retardant polymer

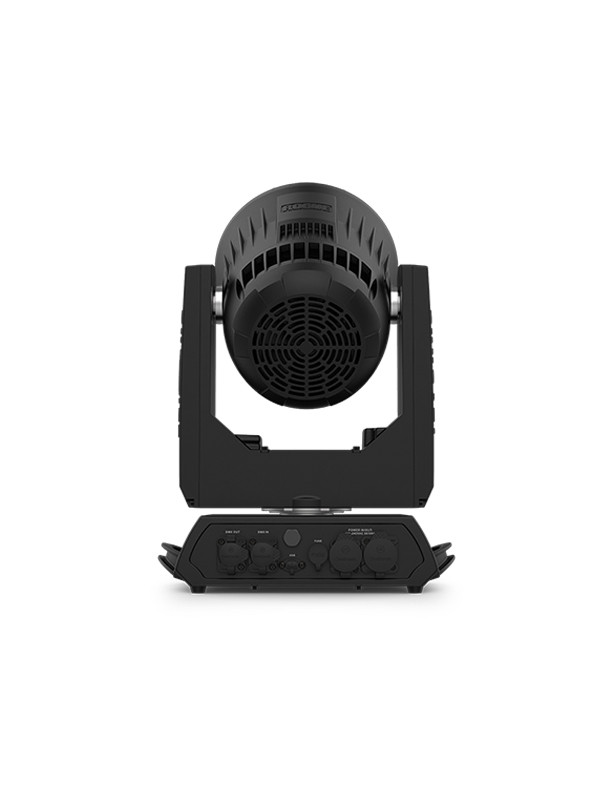

Connections• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control• Control Protocol: DMX, RDM
• DMX Channels: 15, 24, 30, 64, 111 or 135
• Modes/Personalities: 6 personalities (15, 24, 30, 64, 111, 135)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V
• Power and Current: 385 W, 3.25 A @ 120 V, 60 Hz
• Power and Current: 376 W, 1.92 A @ 208 V, 60 Hz
• Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz
• Fuse Size: 8A, 250 V
Certifications / Qualifications• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
• Maximum Exterior Surface Temperature (Tc): 80 C / 176 F
• Maximum Ambient Temperature (ta) 45 C / 113 F
What's Included• Rogue Outcast 1 BeamWash
• Seetronic Powerkon IP65 power cord
• (2) Omega brackets with mounting hardware
Optional Accessories• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• IP Rated Seetronic Powerkon Extensions
• DMX Cables
• Flight Case:
• UPLOAD 08 software uploader
