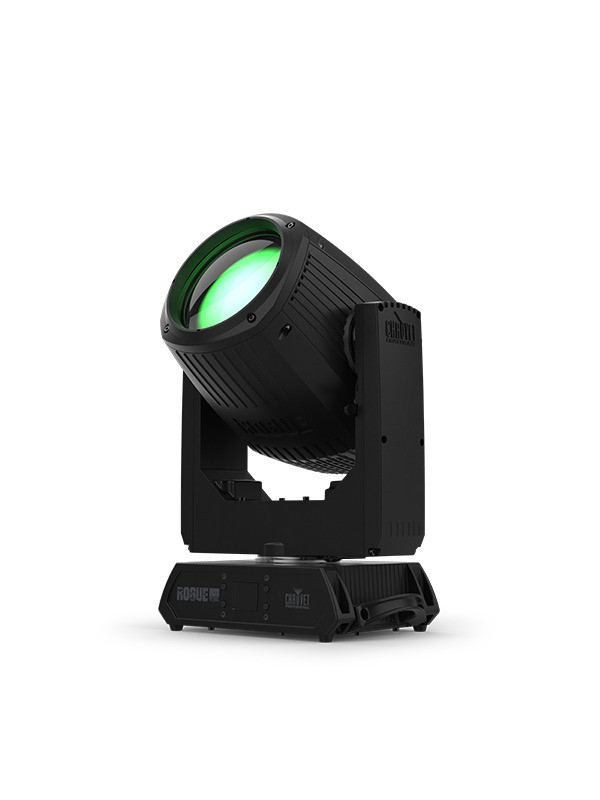

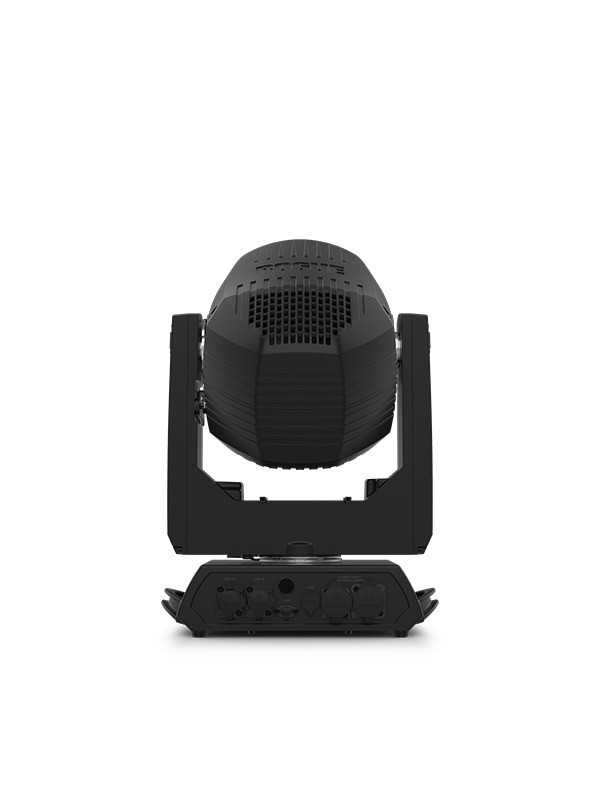

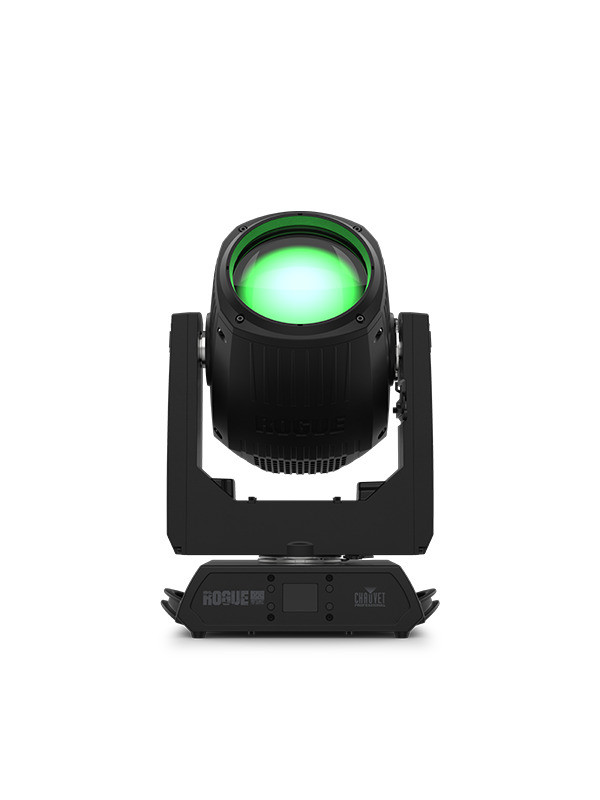

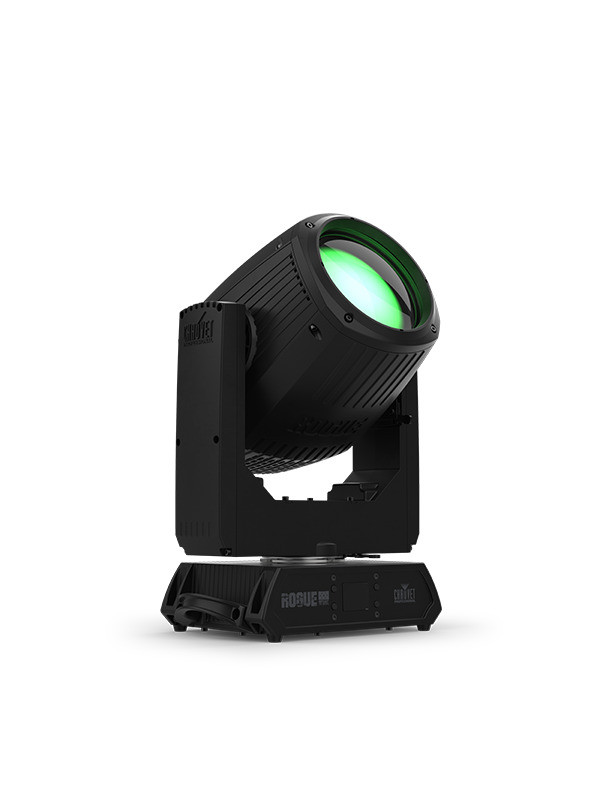

• Fully featured, high powered IP65 rated beam fixture with a Red, Mint and Blue LED, single gobo wheel with static gobos, layerable prisms in a lightweight and durable aluminum / magnesium casing
• Full color mixing from the LED source for a wide spectrum of color variations. No color wheel needed
• 360 pan and tilt movement for endless movement effects
• Fast and precise movement of pan and tilt functions
• Individually controllable and layerable 6- and 8-facet prisms
• Frost for even light distribution
• 5-pin DMX input/output connections
• Tight 1.9 beam for extremely focused aerial effects
• RDM enabled for remote addressing and troubleshooting
• 17 static gobos on one wheel for dynamic gobo effects
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software
Optical• Light Source: 1 LEDs (Red,Mint,Blue) 120 W, (3.34A), 50,000 hours life expectancy
• Color Temperature (at full): 10,398 K
• Front lens diameter: 140 mm
• CRI: 80.8
• Beam Angle: 1.9
• Field Angle: 2.7
• Cutoff Angle: 3.4
• Lumens (Output): 4,488
• Illuminance (total): 117,690 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects• Pan and Tilt: 360/360 total movement
• Pan and Tilt Ranges: 540, 360, 180 pan/270, 180, 90 tilt
• Gobos (1): 17 + open (metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel (rotating): 6 mm (outside), .6 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Frost: Motorized
• Prism: 6 Facets, motorized, linear, rotating
• Prism: 8 Facets, motorized, round, rotating
• Strobe Rate: 0 to 30 Hz
• Dim Curves: 4
Construction / Physical• Dimensions: 11.9 x 7.56 x 17.9 in (302 x 192 x 455 mm)
• Weight: 27.2 lb (12.34 kg)
• Exterior Color: Black
• Housing Material: Aluminum/Magnesium diecast
Connections• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)
Control• Control Protocol: DMX, RDM
• DMX Channels: 21 or 25
• Modes/Personalities: 2 personalities (21, 25)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:; 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
• Power and Current: 232 W, 1.95 A @ 120 V, 60 Hz
• Power and Current: 223 W, 1.11 A @ 208 V, 60 Hz
• Power and Current: 220 W, .990 A @ 230 V, 50 Hz
Certifications / Qualifications• CE, MET, FCC, UKCA
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• Rogue Outcast 1M Beam
• Seetronic Powerkon IP65 power cord
• 105mm Omega bracket with mounting hardware
Optional Accessories• Clamps
• Seetronic PowerKON cables
• DMX Cables
• Flight Cases
• CP Rack
• PowerStream 4 IP
