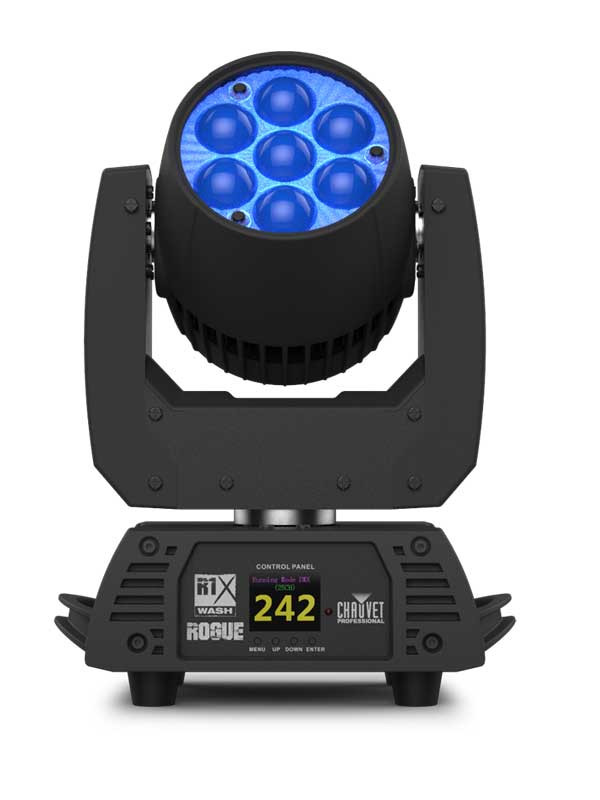

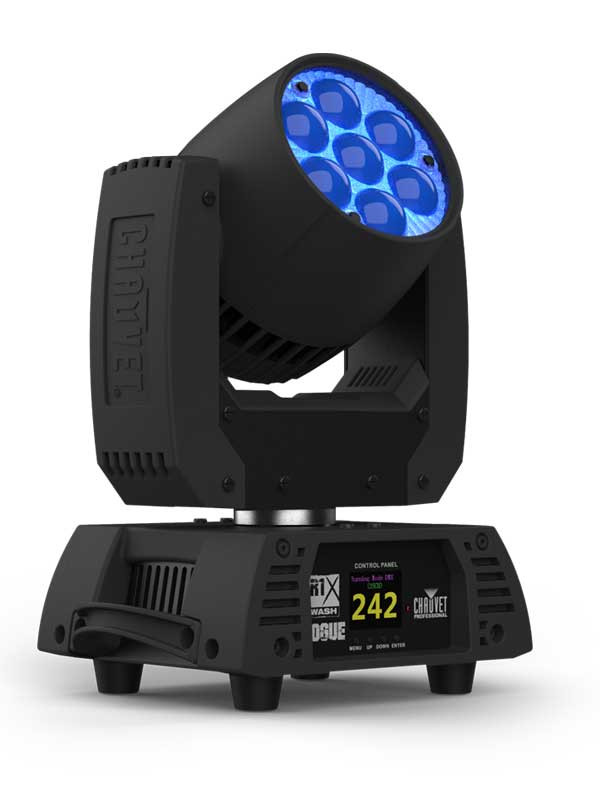

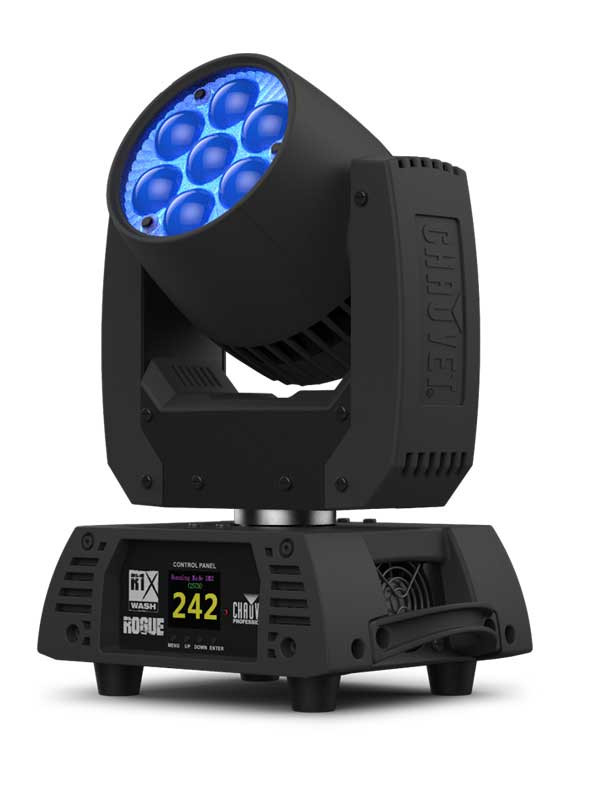

Features• Fully featured RGBW LED yoke wash fixture with zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• 7 RGBW LEDs, 25 W each
• 3- and 5-pin DMX input/output connections
• Unique lens design for excellent color blending
• Fast, smooth pan and tilt movement
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R1 Washes
• 6 distinct dimming modes for advanced control
• Omega mounting bracket, fits all Rogue and Maverick fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
SpecificationsOptical
• Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K Beam Angle: 8 to 30
• Beam Angle: 8 to 30
• Field Angle: 11 to 48
• Zoom Angle: 11 to 48
• Lumens Source: 4,000
• Lumens Output: 2,900
• Illuminance (11): 3,280 lux @ 5 m
• Illuminance (48): 293 lux @ 5 m
• PWM Frequency: 1200 Hz
Dynamic Effects
• Pan and Tilt: 540/230
• Pan and Tilt Ranges: 180, 360, 540 pan/90, 180, 230 tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No
Construction / Physical
• Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
• Weight: 13.6 lb (6.2 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

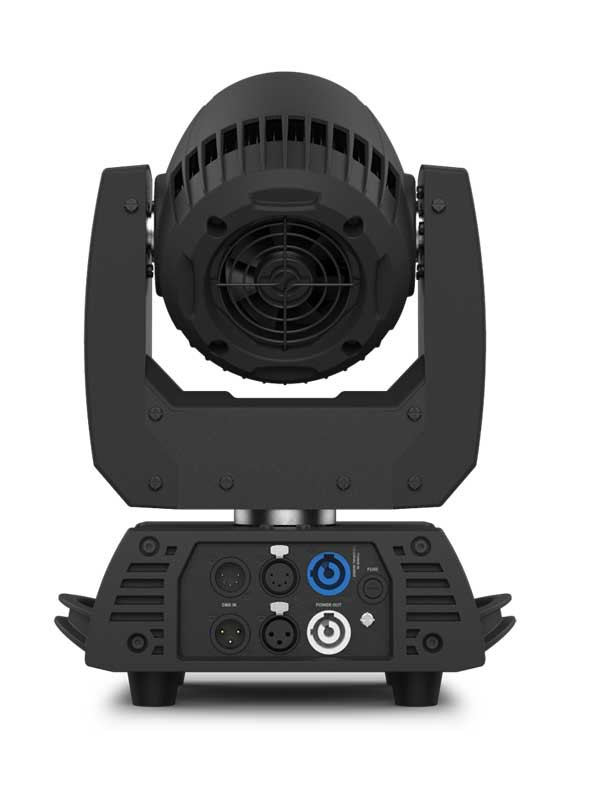

Connections
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: DMX, RDM
• DMX Channels: 14, 15, 19 or 21
• Modes/Personalities: 4 personalities (14, 15, 19, 21)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 10 units @ 120 V; 17 units @ 208 V; 20 units @ 230 V
• Power and Current: 157 W, 1.35 A @ 120 V, 60 Hz
• Power and Current: 154 W, 0.76 A @ 208 V, 60 Hz
• Power and Current: 164 W, 0.67 A @ 230 V, 50 Hz
Certifications / Qualifications
• CE, MET, FCC
• IP Rating: IP20, dry location
What's Included
• Rogue R1X Wash
• Neutrik powerCON power cord
• Omega bracket with mounting hardware
Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• Neutrik powerCON cables
• DMX Cables
• Flight Case: CP6CASER1W
• UPLOAD 08
