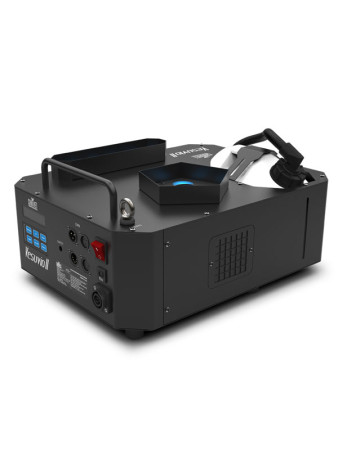

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light.
The Vesuvio II is built for efficiency, consuming only 80ml/min of QDL fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with the Chauvet HDF high-density and QDF quick dissipating fluid.
Features• Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing
• 40 second continuous bursts of fog, for intense effects and performance
• 40,000 CFM fog output for intense, large effects
• 2.5 l fluid tank for reliability in production
• Strong, sturdy construction for numerous production types
• DMX control for ease of use in production situations
• 3- and 5-pin DMX input/output connections
SpecificationsOptical
•Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
•Illuminance (Center): 199.5 lux @ 5 m
•Illuminance (Linear): 154 lux @ 5 m
•Illuminance (Both): 334 lux @ 5 m
•PWM Frequency: 126 Hz
Dynamic Effects
•Dimmer: Electronic
•Shutter/Strobe: Electronic
•Strobe Rate: 0 to 20 Hz
•Output: 40,000 cfm
•Low Fluid Shutdown: No
Construction / Physical
•Dimensions: 19.49 x 13.18 x 9.39 in (495 x 335 x 239 mm)
•Weight: 28.4 lb (12.9kg)
•Exterior Color: BLACK
•Housing Material: Steel
•Tank Capacity: 0.7 gal (2.5 l)
•Fluid Consumption: 80 ml/min
Connections
•Power Connection: Edison plug to Seetronic Powerkon IP65
•Power Input: Seetronic Powerkon IP65
•Data Connectors: 3- and 5-pin XLR
•Cable Length (power): 5 ft (1.5 m)
Control
•Control Protocol: DMX
•DMX Channels: 15
•Modes/Personalities: 1 personalities
•On-Board Control: Yes
•Included Remote: No
Electrical
•Input Voltage (120V): 120 VAC, 60 Hz
Input Voltage (220V): 230 VAC, 50 Hz
•Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz
•Heat-up Time (120V): 10 min
Heat-up Time (220V): 10 min
•Breaker Size (120V): 15A
Breaker Size (220V): 15A
Certifications / Qualifications
•CE
•IP Rating: IP20, dry location
•Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included
•Vesuvio II
•Seetronic Powerkon IP65power cord
Optional Accessories
•Clamps
•Neutrik powerCON cables
•Neutrik etherCON cables
•DMX Cables
