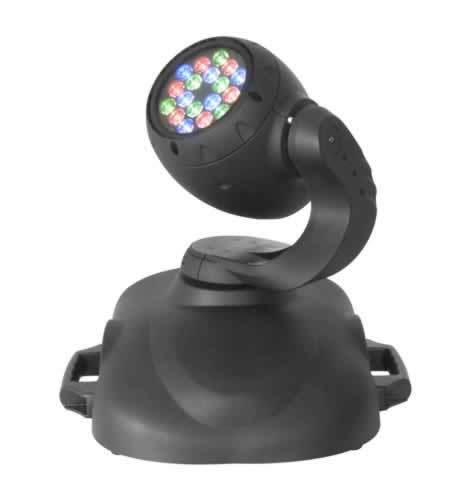

CONTROL FEATURES• 10-channel DMX-512 LED moving yoke color wash
• Pan: 540 / tilt: 270

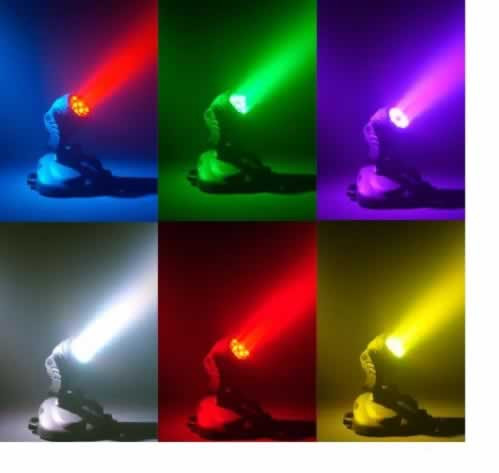

• RGB color mixing
• Variable electronic strobe
• Variable electronic dimmer (0 - 100%)
• Remote fixture reset and speed control channel
ADDITIONAL FEATURES• Extremely bright 1W LEDs
• Automatic pan & tilt correction
• 100 user-programmable steps accessible via master/slave or DMX
• Built-in automated programs via master/slave or DMX
• Built-in sound activated programs via master/slave or DMX
• Micro-stepping motors
• LCD display
• Reset to factory settings option
• Low power consumption
• Reversible pan and tilt
• Thermal switch
• Fan cooled (adjustable speeds)
SPECIFICATIONS• Bulb: 18 (6 red, 6 green, 6 blue) 1W LEDs 100,000hrs
• Power: Switchable (internal) 120V/230V - 50/60Hz
• Weight: 19.6lbs (8.9kgs)
• Size: 14in x 11.8in x 14in
356mm x 300mm x 356mm
• 2-year limited warranty
