Chauvet DJ SF9005 Timer Switch Control System (Open Box)

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet sf-9005   *open box
Images may show accessories or configurations not packaged with this item.

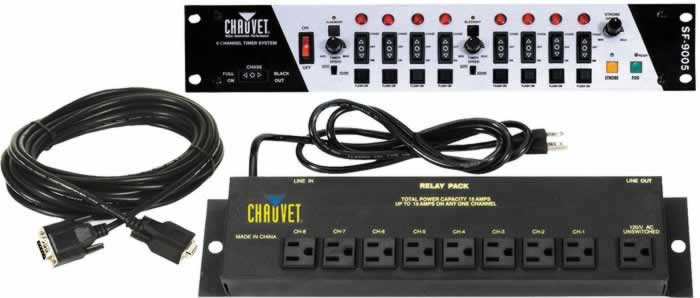

The SF-9005 Timer System' Package includes (1) SF-9005 controller, (1) SR-8 Relay Pack, and (1) SF-EXCB 9-pin 25ft. extension cable for linking the controller and relay pack. The package features 8 on/off/chase switches. They can be configured and adjusted to perform one of two chase patterns, either 16-pattern sound activation for channels 1-4 and/or 5-8, and a timed chase with user-definable speeds from twenty seconds to fifteen minutes.

The controller also features built-in fog and strobe controllers, a three-way switch for selecting full on, chase, or blackout, and an output for the CH-865/866 controller.

FEATURES:
• Includes:
1 x rack mount controller (2U)
1 x 8-channel relay pack (SR-8)
1 x SF-EXCB linking cable (25ft)
• Individual control of 2 separate zones with 4 channels each (8 channels total)
• Each zone contains:
4 channels with LED indicator and flash button
Separate blackout button
Selector switch for automatic or sound-activated programs
Speed control knob for automatic programs (20sec - 15min)
• Controls external 16-pattern controller (CH-866, sold separately)
• Connect up to 2 relay packs together (SR-8, sold separately)
• Fog & strobe control buttons (with strobe speed adjustment)
• Non-switched output for linking relay packs (on SR-8)

CONTROLLER SPECIFICATIONS:
• Power and current: 120V, 60Hz: 1W, 0.1A operating, 0.1A inrush
• AC power: Switchable 115V/230V 50/60Hz
• Weight: 4.6lbs (2.1kg)
• Size: 19in x 3.5in x 3.7in / 482mm x 88mm x 94mm

RELAY PACK SPECIFICATIONS:
• Input voltage equals output voltage
• Output (115V): 5A (575W) per channel, 15A (1,725W) max
• Output (230V): 5A (1,150W) per channel, 15A (3,450W) max
• AC power: Autoswitching 100V - 240V 50/60Hz
• Weight: 2.5lbs (1.3kg)
• Size: 14in x 3.8in x 1.8in / 3562mm x 97mm x 46mm

Additional Information

UPC

N/A

SKU

SF-9005 *OPEN BOX

Manufacturer

Chauvet DJ

Price

$99.95

Product Condition

Open Box
