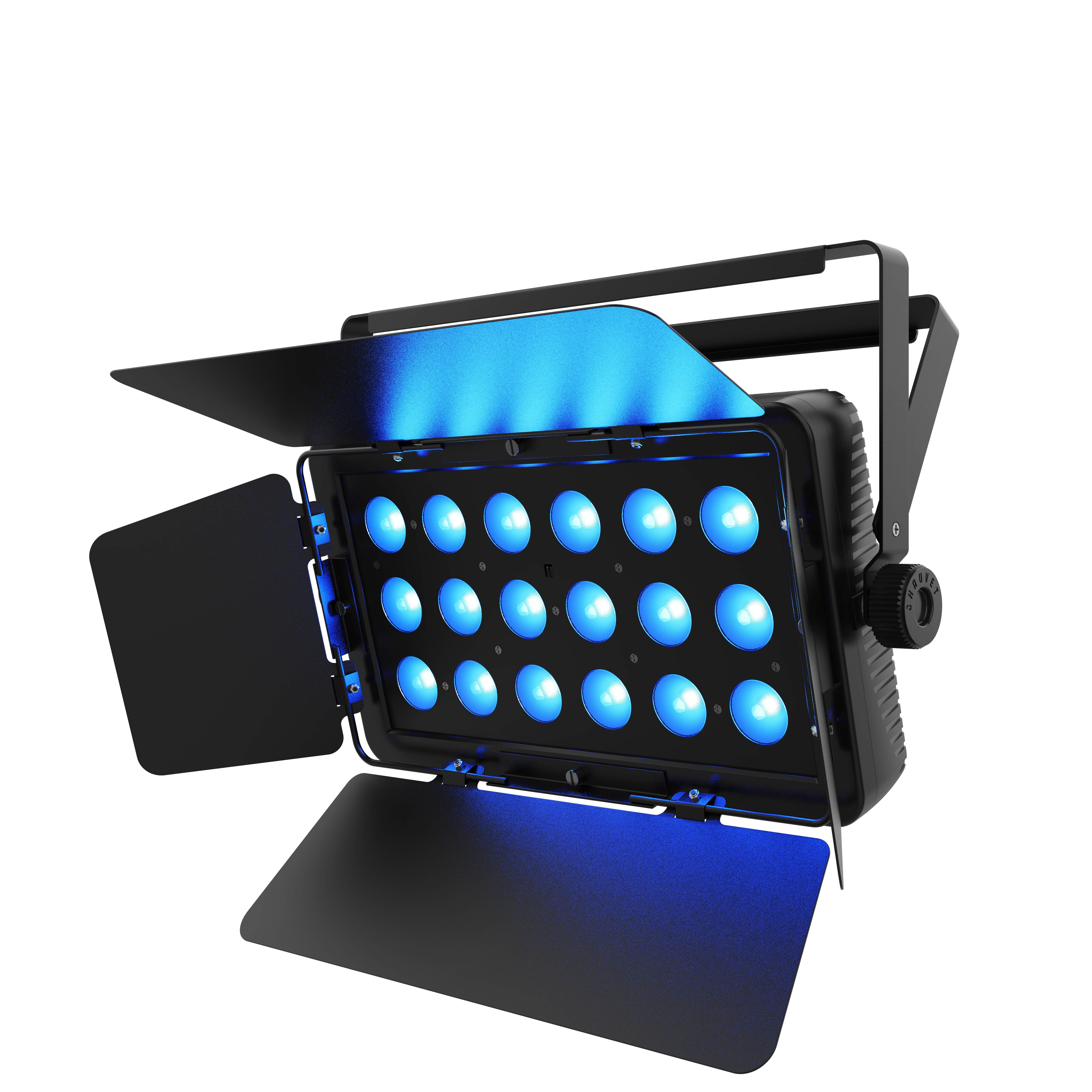

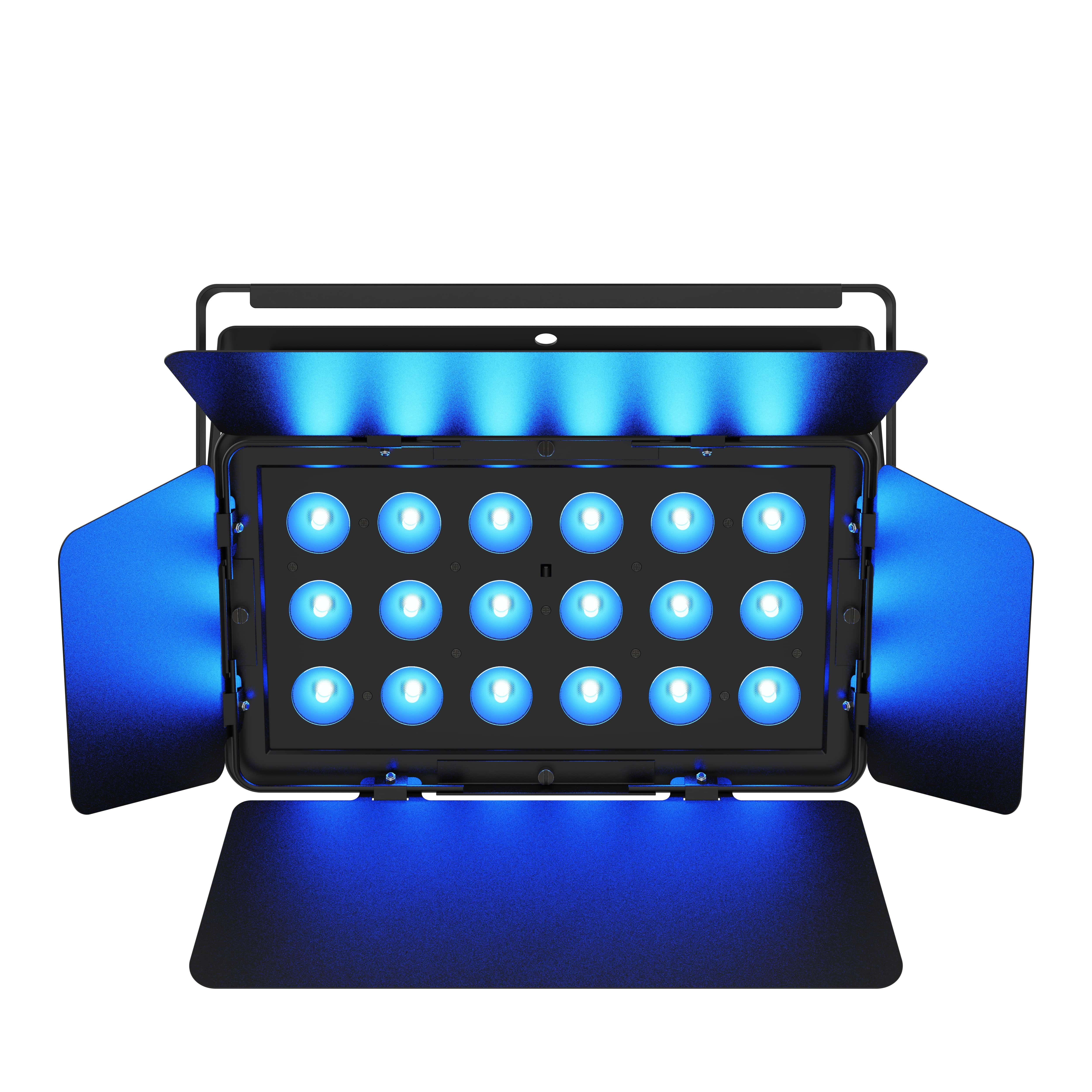

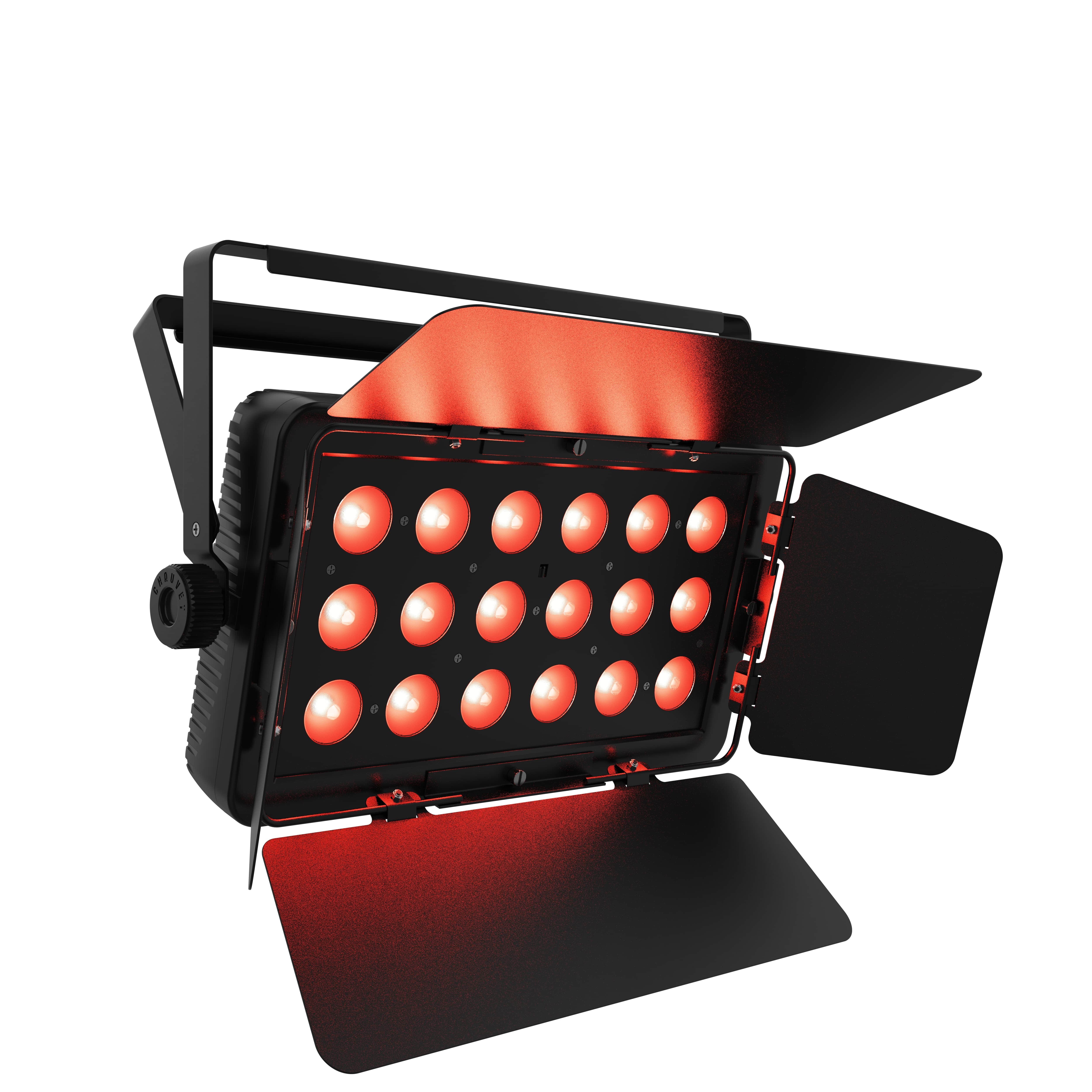

SlimBANK Q18 ILS is a versatile quad-color (RGBA) LED wash light with brilliant eye candy effects. It features ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Control options include D-Fi USB compatibility for wireless Master/Slave or DMX control and access to built-in automated programs via IRC-6 remote. This light makes it easy to generate complex looks easily with built-in, eye-catching auto programs with sectional control. Adjustable barn doors help direct and focus the light. SlimBANK Q18 ILS has built-in dimming curves for smooth LED fading and is ideal for sound-sensitive environments due to its radiant cooling design.
What is ILS?Integrated Lighting System (ILS) is a cutting-edge lighting system that makes creating coordinated light shows across different fixture types easy and fast. Now, one of the most popular products in the CHAUVET DJ catalog the GigBAR Move becomes GigBAR Move + ILS and controls the new Integrated Lighting System to control any ILS-enabled fixture wired or wirelessly so you can spend less time programming and your event guests can get to the good times sooner!
• Low-profile, high-output quad-color (RGBA) LED Par
• D-Fi' USB compatibility for wireless Master/Slave or DMX control
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Convenient access to RGBA color mixing and static colors with or without DMX
• Flicker-free operation suitable for on-camera use
• Increase standalone versatility with multiple user-configurable settings
• Save time running cables and extension cords by power linking multiple units
• Easily control static colors and automated programs with the optional IRC-6 remote
• Fits best in the CHS-30 VIP gear bag
• Compact design easily fits inside sticks of TRUSST
SpecificationsDMX Channels: 4 or 9
DMX Connectors: 3-pin XLR
Light Source: 12 LEDs (quad-color RGBA) 6 W, (2.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 17 Hz
Beam Angle: 17
Field Angle: 29
Coverage Angle: 65
Illuminance: 2,684 lux @ 2 m
Power Linking: 10 units @ 120 V; 18 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 55 W, 0.8 A @ 120 V, 60 Hz; 454 W, 0.5 A @ 230 V, 50 Hz
Weight: 3.6 lb (1.6 kg)
Size: 9.7 x 3.6 x 11.5 in (247 x 92 x 293 mm)
Approvals: CE, RoHS, UKCA
Optional Controllers: IRC6, D-Fi USB
WHAT'S INCLUDEDSlimPAR Q12 USB
Power cord
Quick Reference Guide
