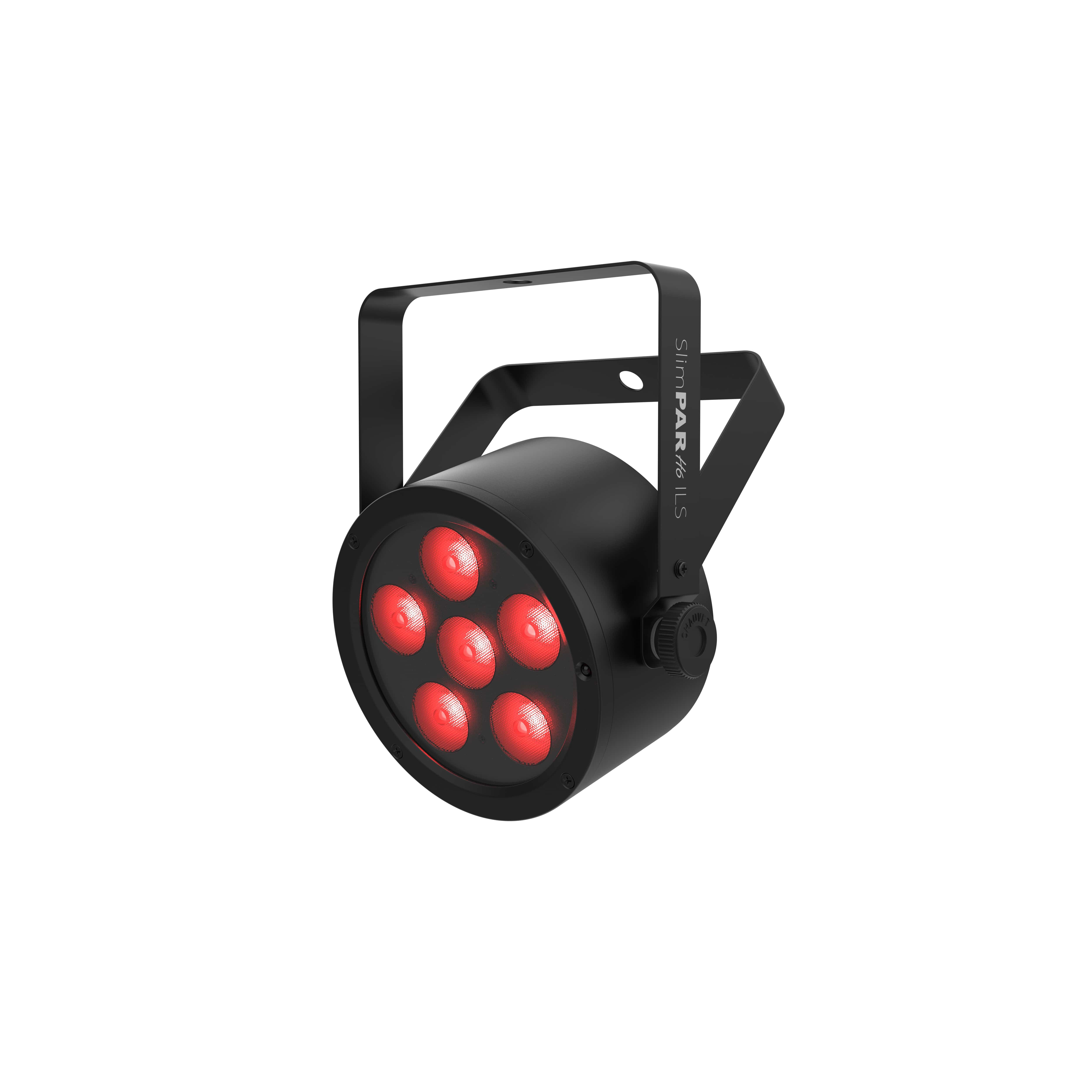

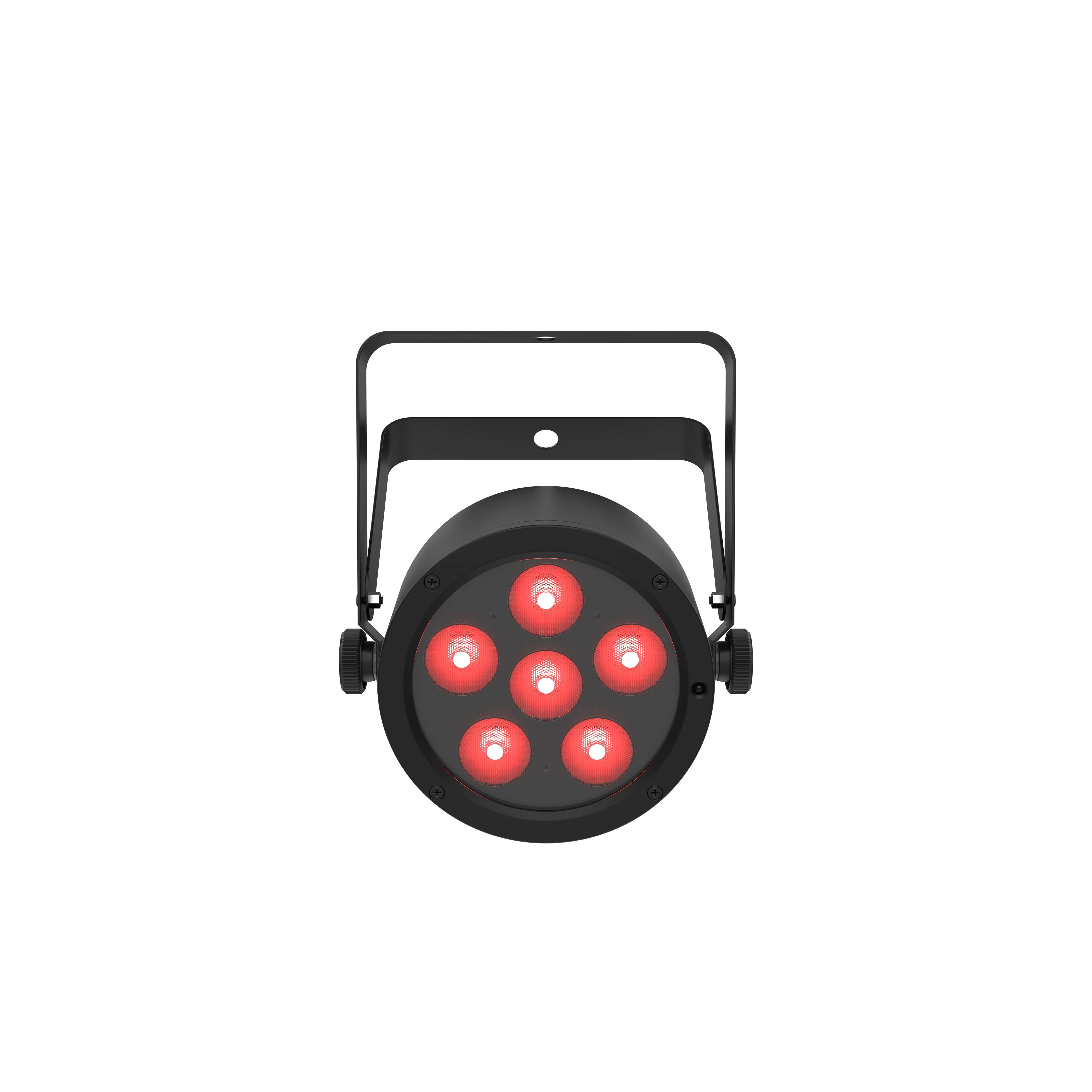

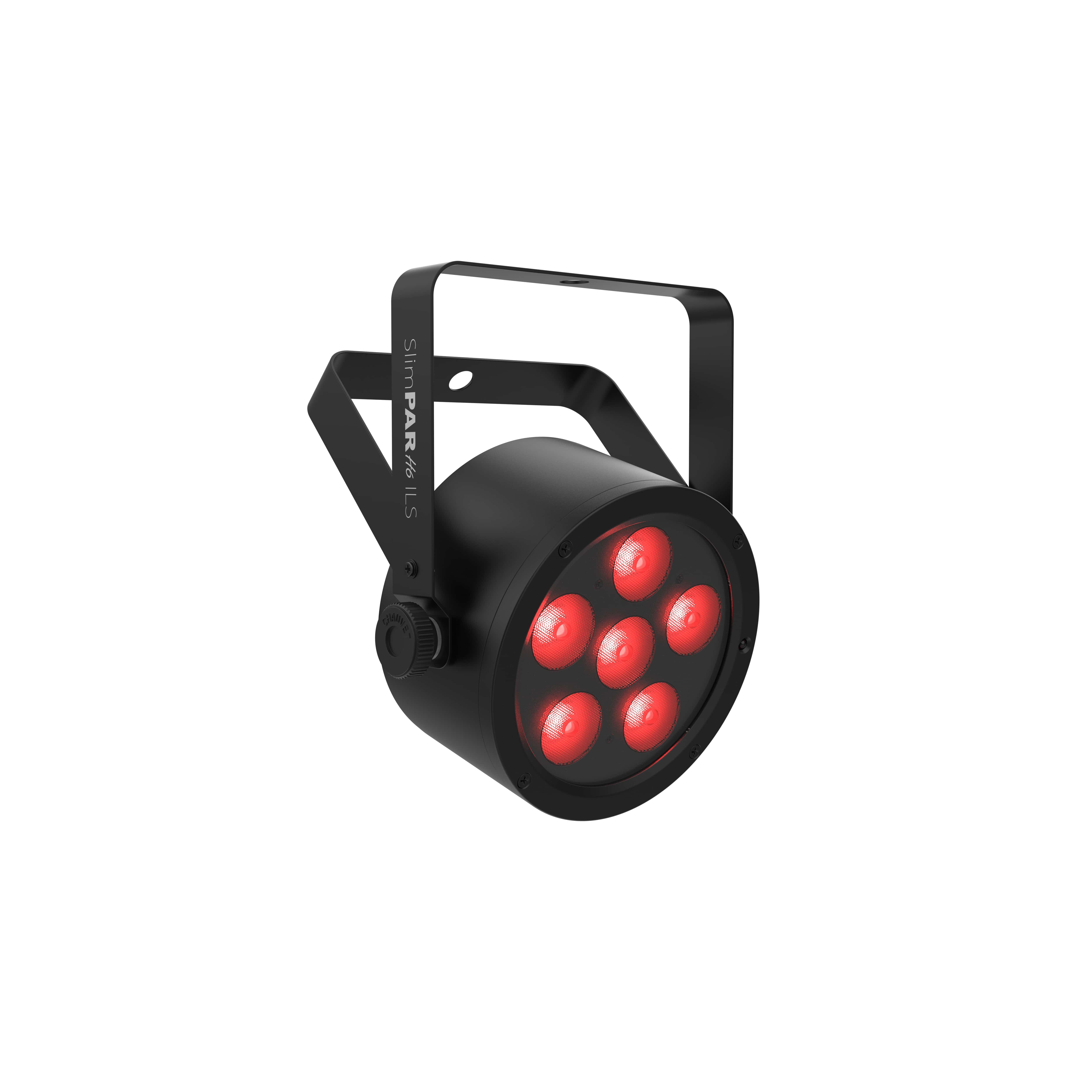

SlimPAR H6 ILS is a low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV) that lets you generate a broad spectrum of colors and achieve natural-looking color temperatures. SlimPAR H6 ILS features ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy.
This powerful par lets you create customized colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves. SlimPAR H6 ILS is flicker-free which makes it great for on-camera use. Other control options include D-Fi USB compatibility for wireless Master/Slave or DMX control and DMX, Master/Slave and Sound-Active modes as well as point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote.
What is ILS?Integrated Lighting System (ILS) is a cutting-edge lighting system that makes creating coordinated light shows across different fixture types easy and fast. Now, one of the most popular products in the CHAUVET DJ catalog the GigBAR Move becomes GigBAR Move + ILS and controls the new Integrated Lighting System to control any ILS-enabled fixture wired or wirelessly so you can spend less time programming and your event guests can get to the good times sooner!
• Low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV)
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
• Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
• Save time running cables and extension cords by power linking multiple units
• Multiple control options include DMX, Master/Slave and Sound-Active modes
• Create customized colors using the built-in LED display
• Achieve smooth LED fading with built-in dimming curves
• Flicker-free operation suitable for on-camera use
• Easily transports in the optional CHS-SP4 VIP Gear Bag
• Sleek and lightweight to easily fit inside sticks of TRUSST
Specifications• DMX Channels: 6, 8 or 12

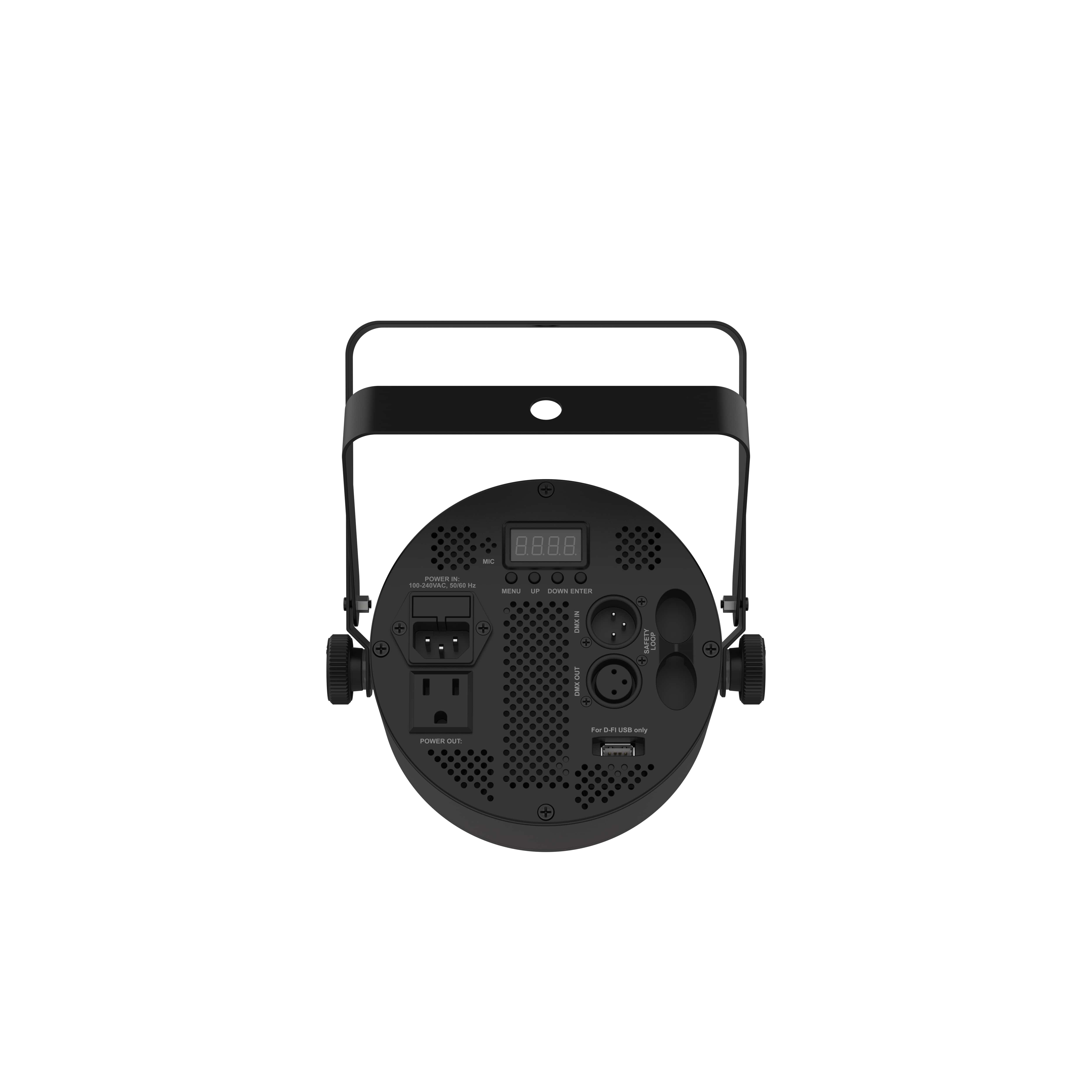

• DMX Connectors: 3-pin XLR
• Light Source: 6 LEDs (hex-color RGBAW+UV) 8 W (1.1A), 50,000 hours life expectancy
• Strobe Rate: 0 to 30 Hz
• Beam Angle: 25
• Field Angle: 43
• Illuminance: 1,891 lux @ 2 m
• Power Linking: 14 units @ 120 V; 24 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 41 W, 0.6 A @ 120 V, 60 Hz
• 41 W, 0.3 A @ 230 V, 50 Hz
• Weight: 2.6 lbs (1.2 kg)
• Size: 7.5 x 3.3 x 8.8 in (192 x 84 x 225 mm)
• Approvals: CE, UKCA, RoHS
• Optional Controllers: IRC6, D-Fi USB
• Bracket Mounting Hole: 13 mm
What's Included• SlimPAR H6 ILS
• Power cord
• Quick Reference Guide
