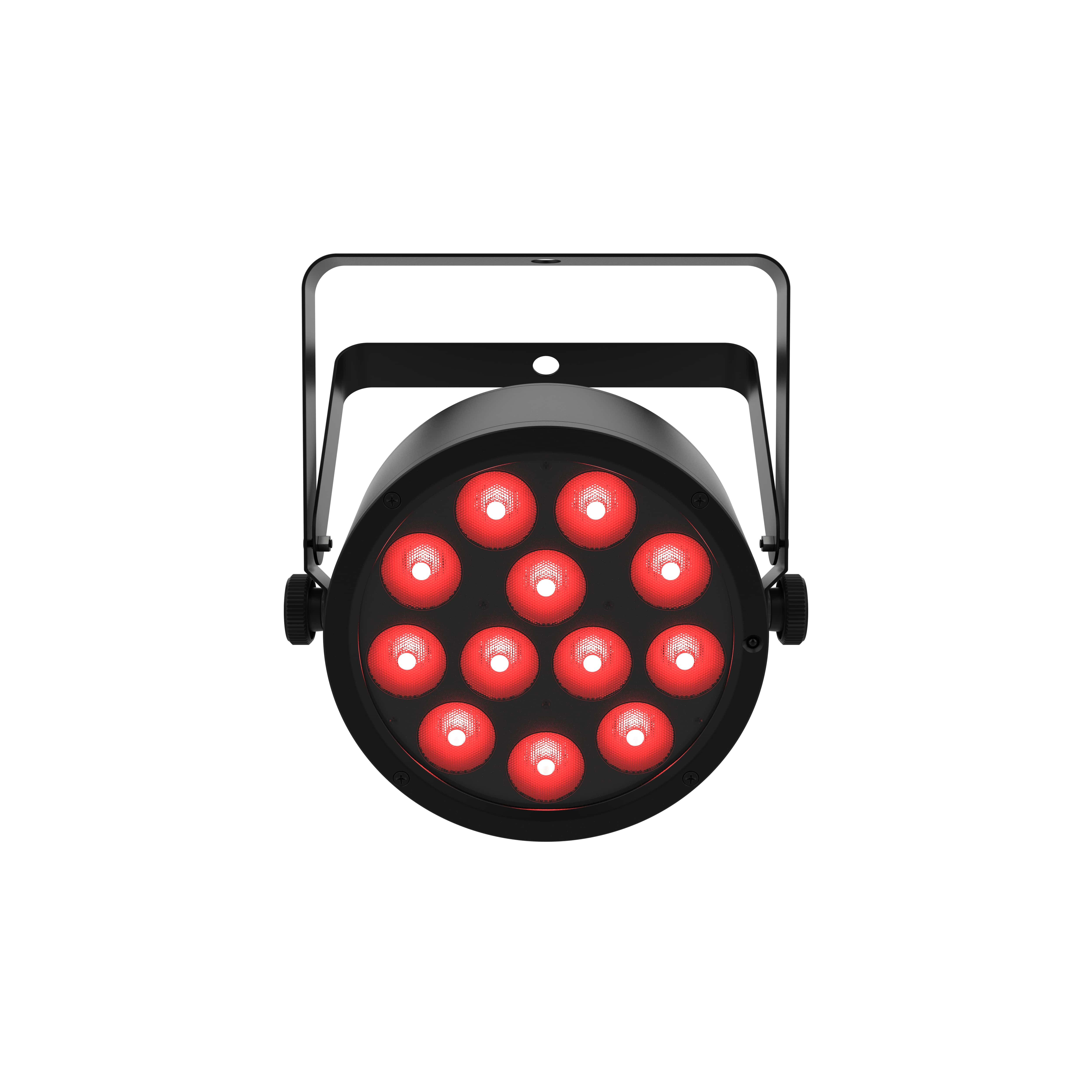

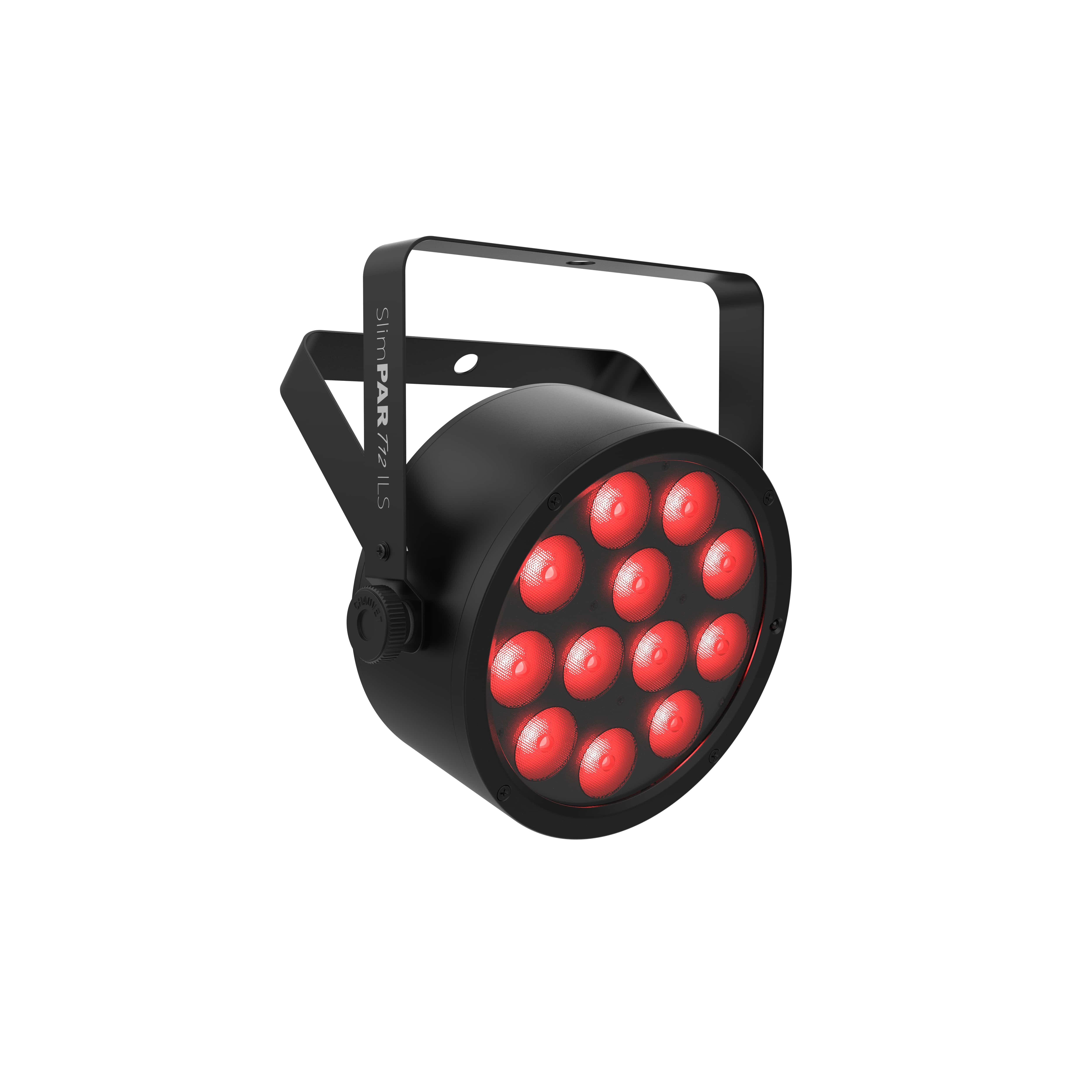

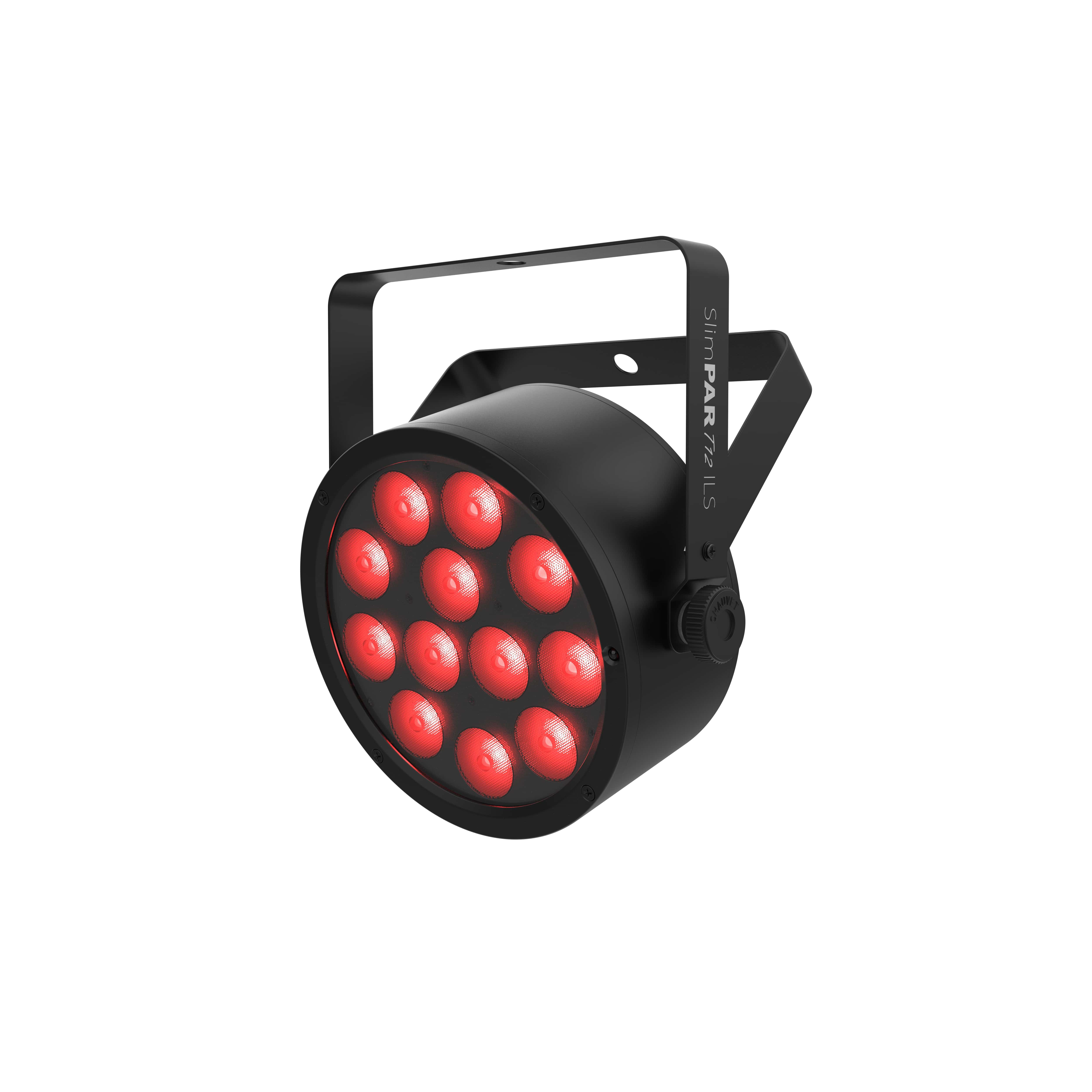

SlimPAR T12 ILS is a low-profile, high-output tri-color (RGB) LED Par featuring compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy.
D-Fi USB compatibility is also featured for wireless Master/Slave or DMX control. From dance floor to studio, SlimPAR T12 ILS is great for on-camera use because of its flicker-free operation. This powerful par offers convenient access to RGB color mixing and static colors with or without DMX. Access built-in automated programs via IRC-6 remote, Master/Slave or DMX.
What is ILS? Integrated Lighting System (ILS) is a cutting-edge lighting system that makes creating coordinated light shows across different fixture types easy and fast. Now, one of the most popular products in the CHAUVET DJ catalog the GigBAR Move becomes GigBAR Move + ILS and controls the new Integrated Lighting System to control any ILS-enabled fixture wired or wirelessly so you can spend less time programming and your event guests can get to the good times sooner!
VIDEO
• Low-profile, high-output tri-color (RGB) LED Par
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Convenient access to RGB color mixing and static colors with or without DMX
• Flicker-free operation suitable for on-camera use
• Save time running cables and extension cords by power linking multiple units
• Access built-in automated programs via IRC-6 remote, Master/Slave or DMX
• Fits best in the CHS-30 VIP Gear Bag
• Compact design easily fits inside sticks of TRUSST
Specifications • DMX Channels: 3 or 8
• DMX Connectors: 3-pin XLR
• Light Source: 12 LEDs (tri-color RGB) 4.9 W (1.19A , 50,000 hours life expectancy
• Strobe Rate: 0 to 11 Hz
• Beam Angle: 17
• Field Angle: 29
• Illuminance: 3,362 lux @ 2 m
• Lumens: 1,415
• Power Linking: 13 units @ 120 V; 23 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 43 W, 0.6 A @ 120 V, 60 Hz
• 43 W, 0.3 A @ 230 V, 50 Hz
• Weight: 3.6 lbs (1.6 kg)
• Size: 8.8 x 8.8 x 9.7 in (224.5 x 225.5 x 246 mm)
• Bracket Mounting Hole: 13 mm
• Optional controllers: IRC=6
What's Included • SlimPAR T12 ILS
• Power cord
• Quick Reference Guide
