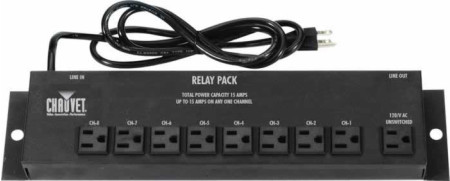

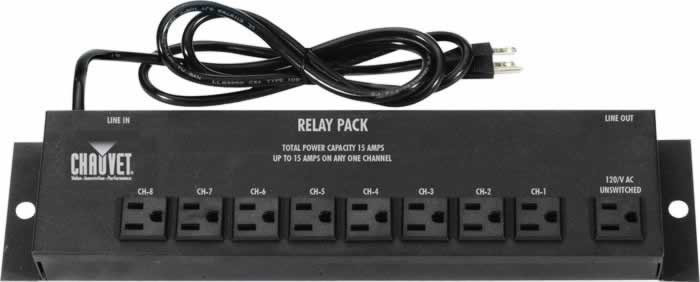

The SR-8 Relay Pack' is an 8-channel relay pack, with a separate Edison plug for each channel and one unswitched socket. Output is 5 amps per channel with a 15- amp maximum. Relay packs are linkable, and are designed to work with the Timer System' package (SF-9005).
FEATURES:• Works with Timer System (SF-9005)
• Link multiple SR-8 packs together (2 units max)
• Includes 1 non-switched (always on) outlet
SPECIFICATIONS:• Input voltage equals output voltage
• Output (115V): 5A (575W) per channel, 15A (1,725W) max
• Output (230V): 5A (1,150W) per channel, 15A (3,450W) max
• AC power: Autoswitching 100V - 240V 50/60Hz
• Weight: 2.5lbs (1.3kg)
• Size: 14in x 3.8in x 1.8in / 356mm x 97mm x 46mm
