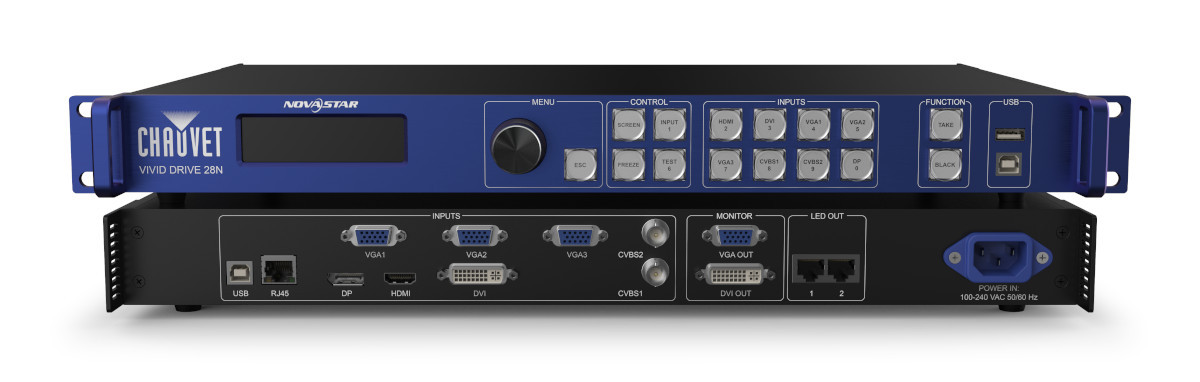

Vivid Drive 28N is an easy-to-use video driver for CHAUVET DJ Vivid 4 video panels or any Novastar video panel. No computer needed! Vivid Drive 28N features powerful standalone mapping and a built-in video scaler for quick resizing of video content. Numerous input/output options are on board as well as backlit buttons for easy viewing in dark environments. The front knob can be set to control the master dimmer and you can seamlessly transition between different inputs with multiple transition effects. Compact 1U packing eases transportation and integration into your existing setup.
Features• Video driver with numerous input/output options for any Novastar video panel
• Powerful standalone mapping without the need for a computer
• Built-in video scaler allows for quick resizing of all video content
• Buttons are backlit for easy viewing in dark environments
• Front knob can be set to control the master dimmer
• Seamlessly transition between different inputs with multiple transition effects
• Compact 1U packing eases transportation and integration into your existing setup
SpecificationsRackmount: 1U
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 42 W, 0.7 A @ 120 V, 60 Hz
42 W, 0.4 A @ 230 V, 50 Hz
Weight: 4.8 lb (2.2 kg)
Dimensions: 19 x 12 x 1.7 in (483 x 305 x 44 mm)
Approvals: CE
Control Protocol: Novastar
Control Input Connectors: USB, RJ45
Video Input Connectors: HDMI, Display Port, DVI, VGA (x3), CVBS (x2)
Video Output Connector: DVI, VGA, RJ45 (x2)
Max. Supported LEDs: 1,310,720
Max. Supported Panels (Vivid 4):: 30 per RJ45
Max. Supported Resolution: 1920 x 1080
What's IncludedVivid Drive 28N
Power cord
DVI cable
VGA cable
DP cable
HDMI cable
RJ45 cable
DP to HDMI adaptor
USB cable
