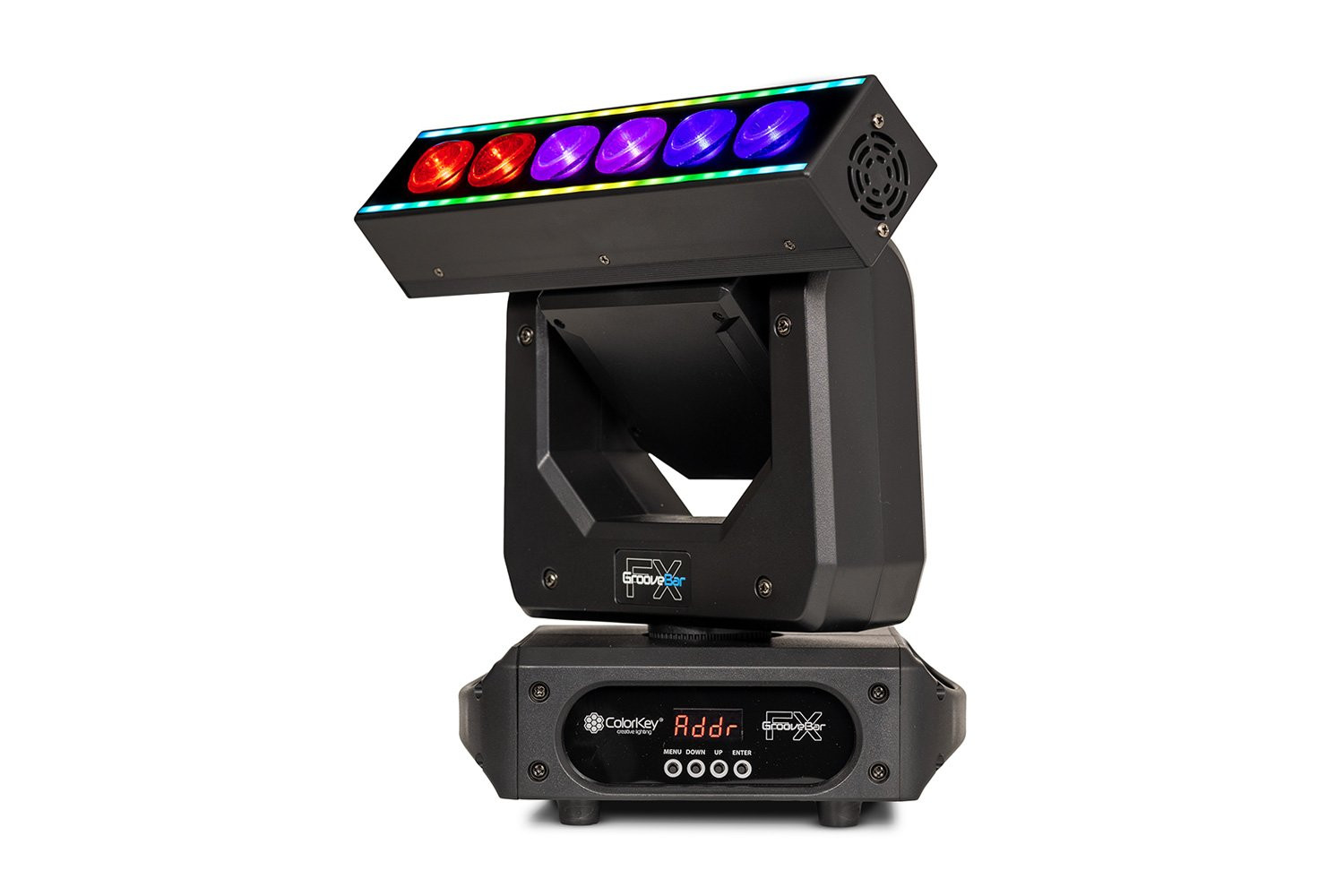

Electrify your light show with the GrooveBar FX, a dynamic 120W bar spinning on a moving head with pixel-driven effects. Designed to deliver high-energy visuals in a compact form, this fixture features six independent RGBW beams and dual RGB LED strips for bold color accents and eye-catching movement..
• Moving Head Bar with Pixel Control and RGB Strip Effects
• 6x 20W RGBW LEDs with precision 3 beam angle for tight, punchy effects
• Infinite Head Rotation for continuous sweeping motion in both directions
• Dual RGB LED Strip Zones with dimming and built-in macro effects
• Advanced FX Engine: 15 chase effects, breath, jump, pulse, gradients, and full effect cycles
Whether installed on a truss, hung overhead, or set on the floor for aerial sweeps, the GrooveBar FX brings motion and intensity to any stage, dancefloor, or event space. With full DMX control, built-in macros, and sound-active modes, it's the perfect addition to mobile rigs, clubs, or touring productions looking for bold, programmable lighting in a sleek, road-ready design.
Whether you're chasing beams, spinning tilt effects, or building custom chases across a rig, the GrooveBar FX delivers expressive motion and brilliant color in one powerhouse bar.
Specifications:• Light Source: 6x 20W RGBW LED's
• RGB strips:
• Illuminance: 29,200 lux @ 2m
• Beam Angle: 3.4
• Strobe: 0-20 Hz
• Dimmer: 0-100% linear dimmer
• Pan: 540 plus fine adjustment
• Tilt: 180 plus fine adjustment
• Head Rotation: Infinite
• DMX Channel: 23 / 40 CH
• Control Mode: DMX512 / Master-slave / Auto / Sound Active
• Power Connection: IEC
• DMX Connectors: 3-pin DMX in/out
• Max Power Consumption: 150W
• Voltage: AC100-240V, 50/60 Hz
• Size: 28.5 x 17.5 x 33.5 cm. (11.2 x 6.9 x 13.2 in.)
• Weight 4.9 kg. (10.8 lb.)
