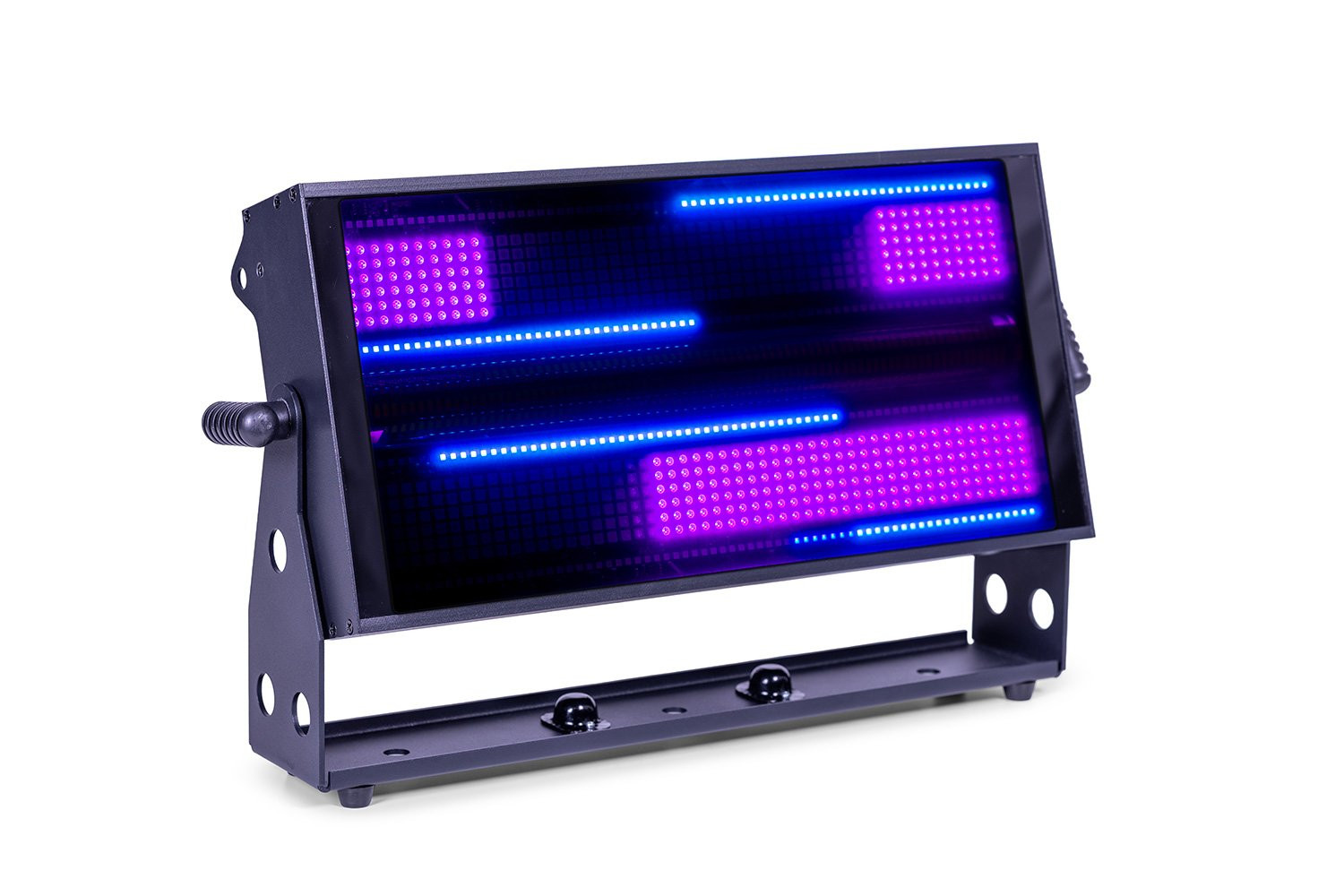

At its core is a powerful RGB plus cool white/ warm white LED system. Independent RGB pixel zones and dedicated white segments deliver deep color saturation, precise tunable whites, and rich warmth. Blend the white channels to dial in anything from clean neutral tones to soft tungsten-style glow.

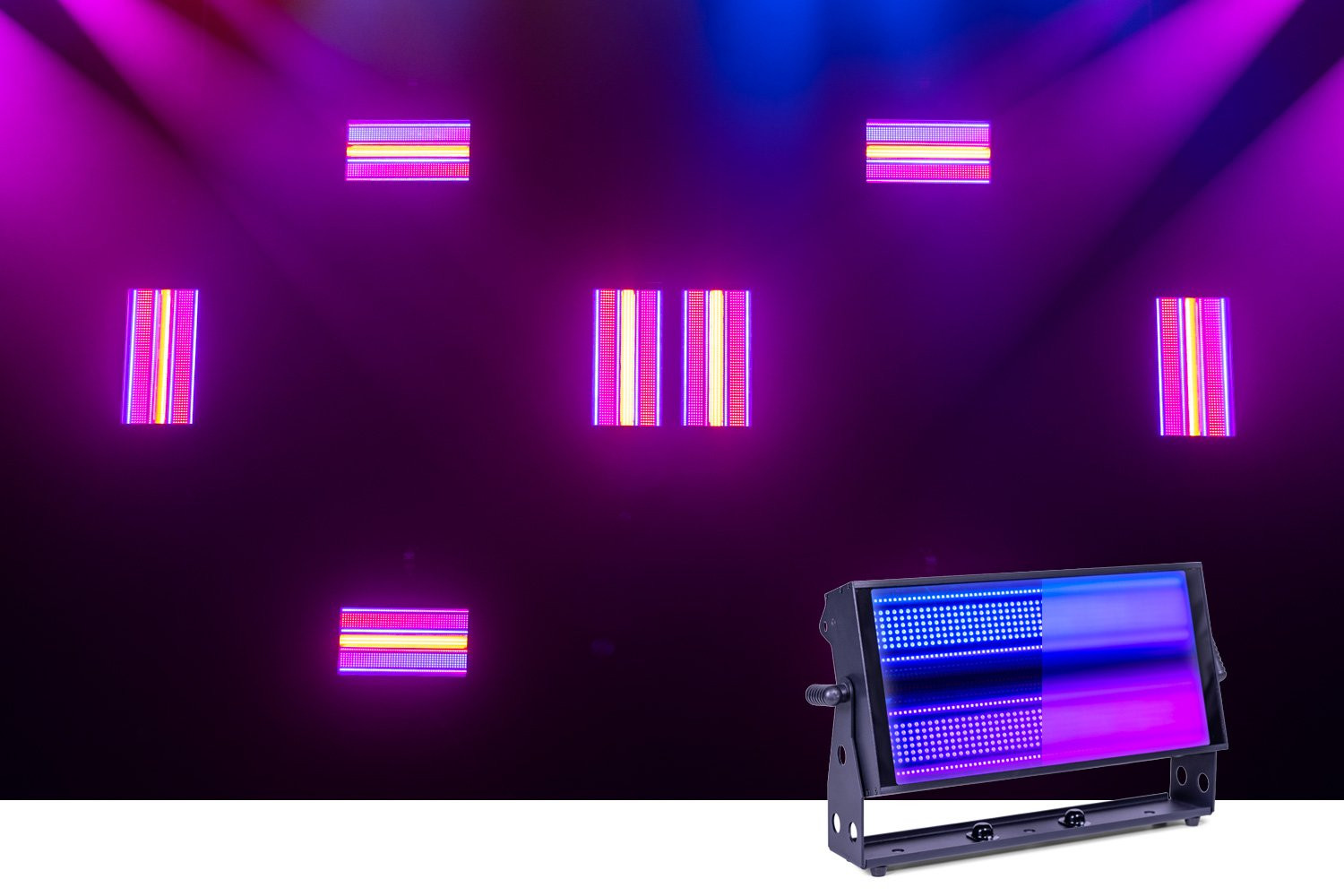

Whether on live stage productions, in venue designs, or as retail and hospitality accent lighting, the ColorKey Inceptor Panel FX adapts effortlessly to modern creative demands.
ActiveFrost' electronic diffusion glass allows designers to shift between clear and frosted output instantly. Unlike traditional mechanical systems, ActiveFrost' uses electronic optical control. One moment the panel delivers sharp LED intensity and the next, smooth sophisticated diffusion.

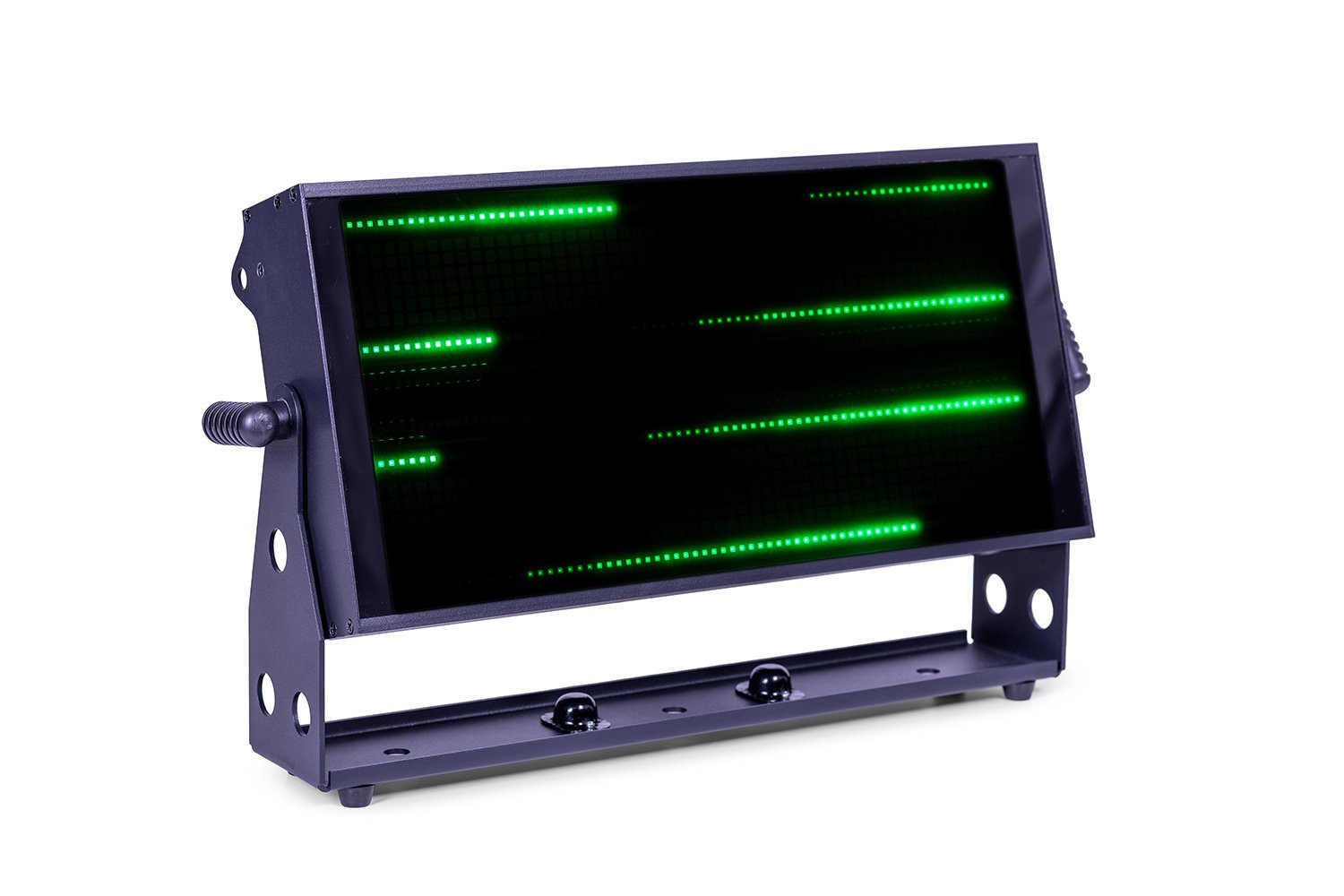

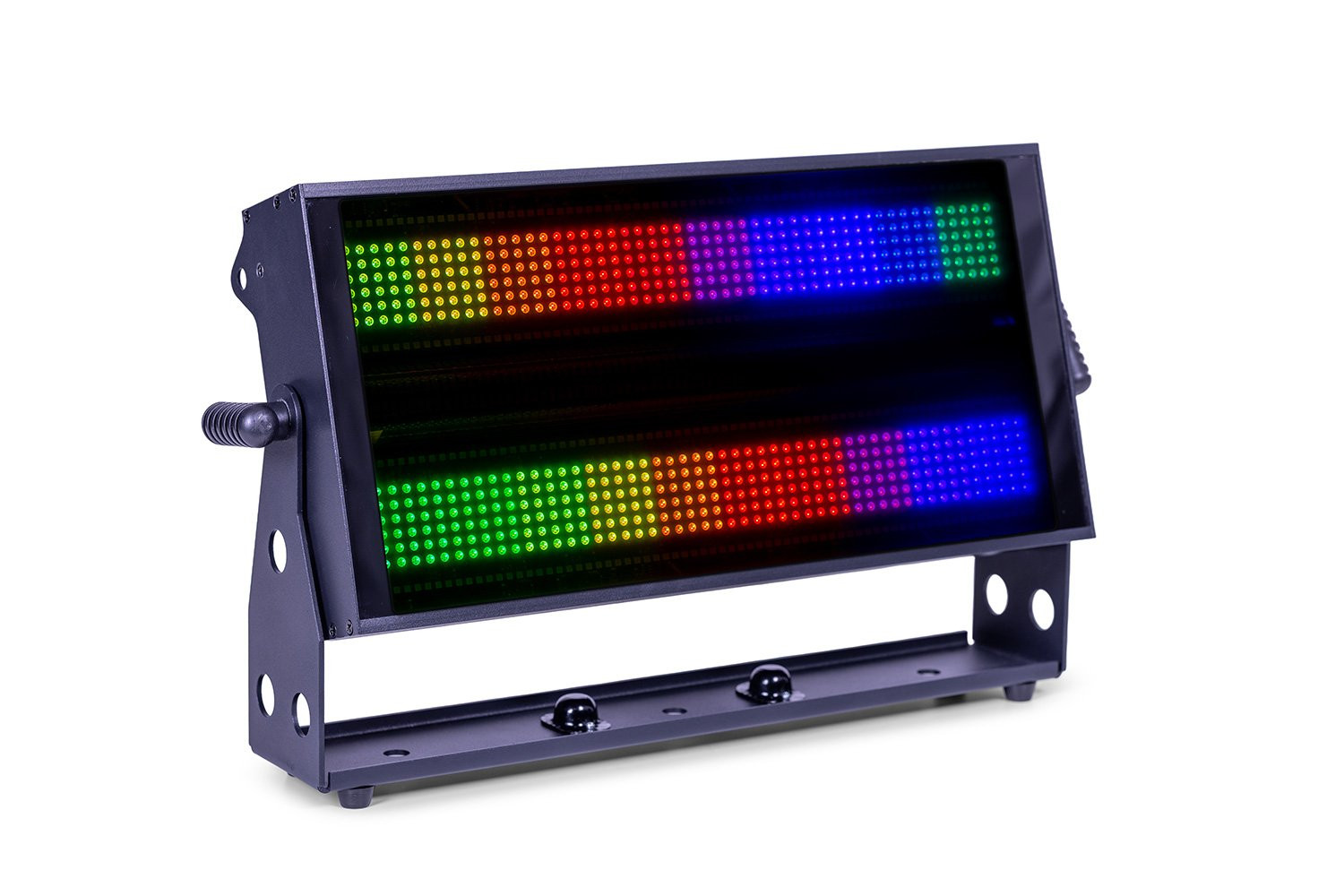

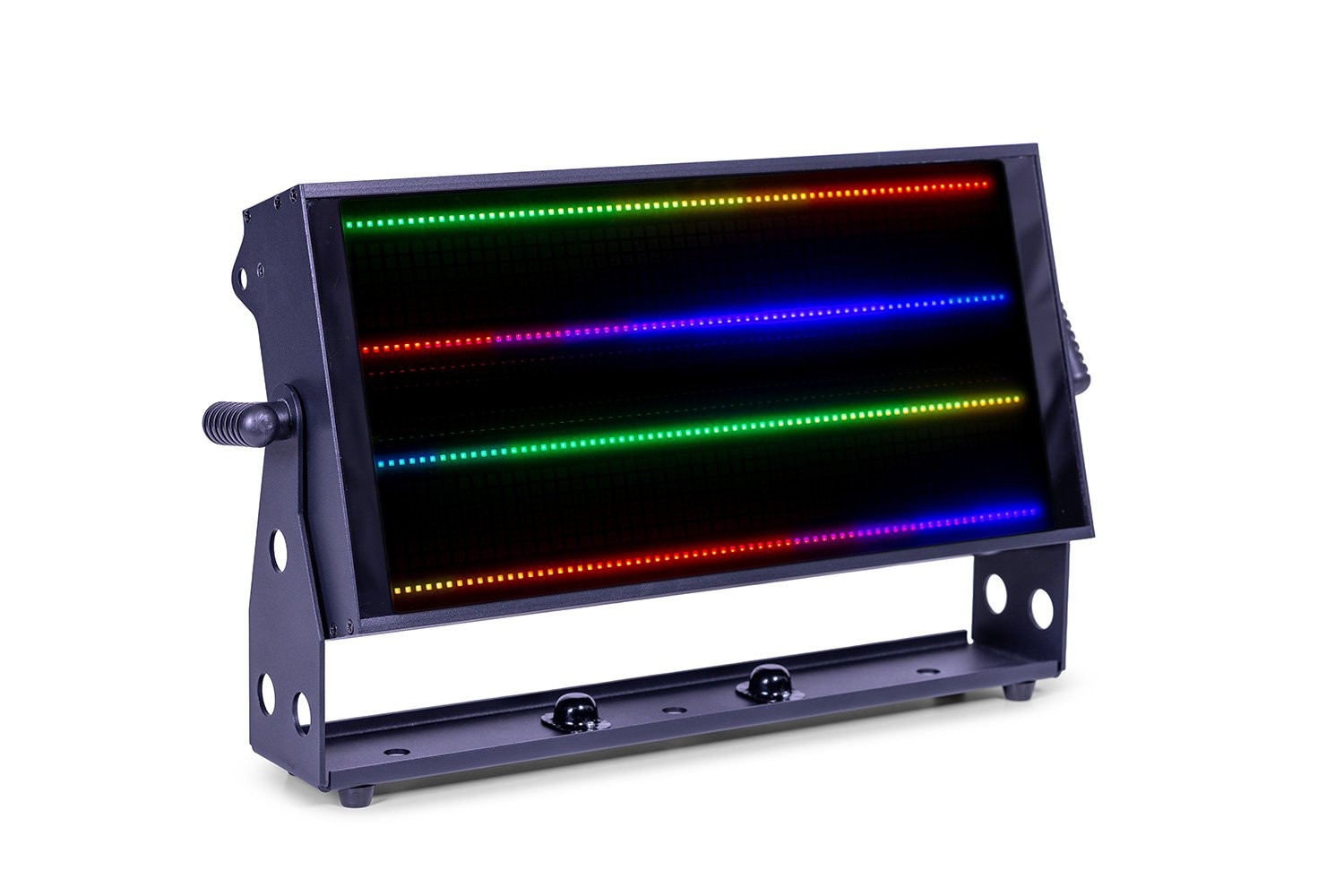

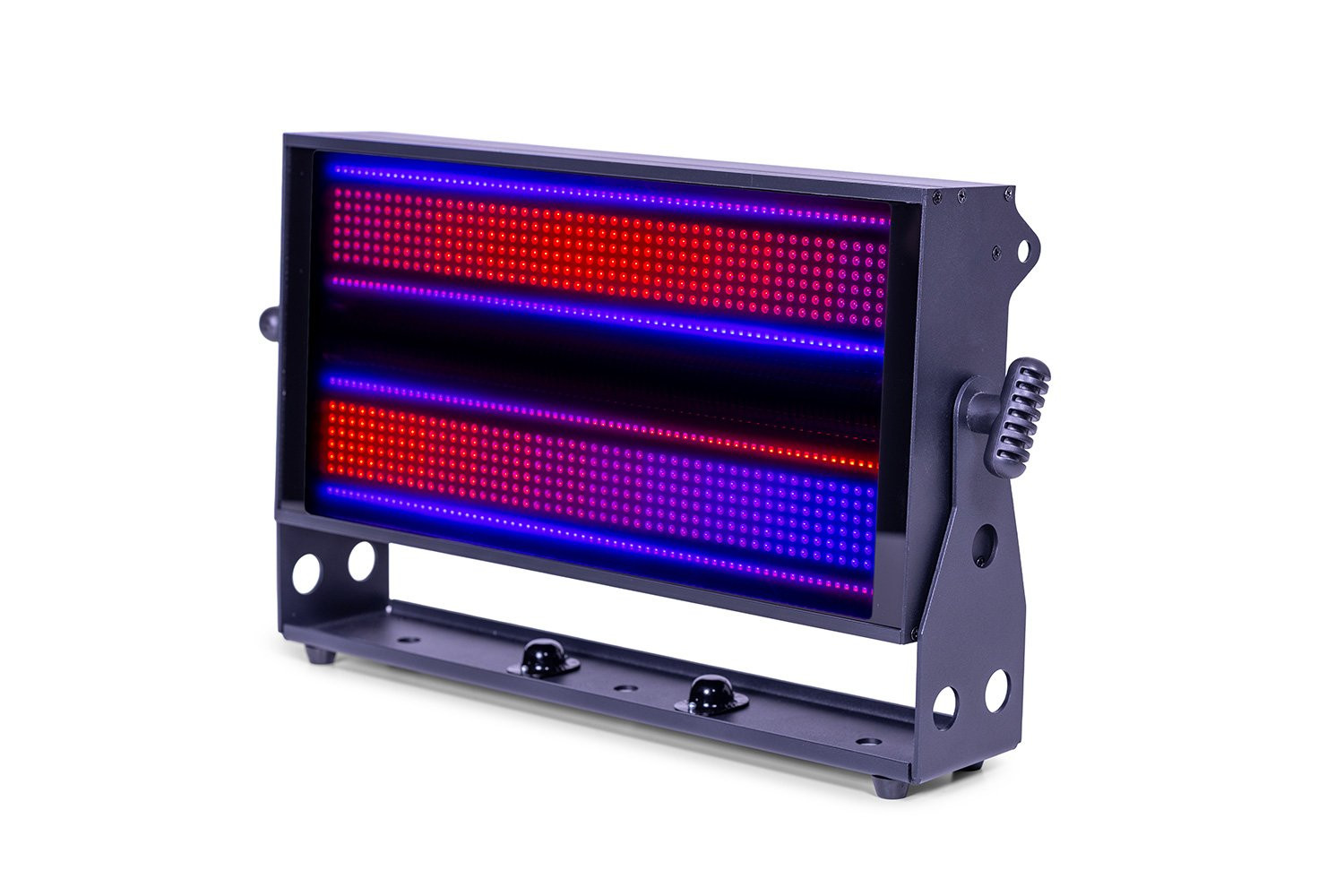

Multi-zone pixel architecture unlocks advanced programming possibilities, turning the panel into a dynamic source of animated eye candy. Independent RGB segments create sweeping gradients and motion-driven effects that add depth and movement to any rig, while the dedicated cool and warm white zones provide flexible color temperature control, rich amber tones, or clean white illumination.
Smooth 0100% dimming and adjustable strobe effects add further creative control. The panel also performs as a powerful blinder, delivering audience-punching output when maximum impact is required.
Designed for real-world production environments. Built for seamless integration, the Inceptor Panel FX connects effortlessly into touring or permanent systems and scales from simple plug-and-play setups to fully detailed pixel programming. An intuitive onboard display keeps configuration fast and straightforward, while multiple control modes ensure it adapts easily to any show environment.
A removable mounting yoke with rubberized feet enables stable floor placement and precise tilt adjustment when hung. The included Omega bracket can attach directly to the fixture body or to the yoke, for truss-mounting options to suit a wide range of scenarios.
From vibrant pixel effects to seamless wide washes, the
ColorKey Inceptor Panel FX delivers versatility without compromise. A modern lighting tool designed to evolve with your creativity.
•
ActiveFrost electronic diffusion instantly switches between clear and frosted output
• High-output RGB + Cool/Warm White LED engine

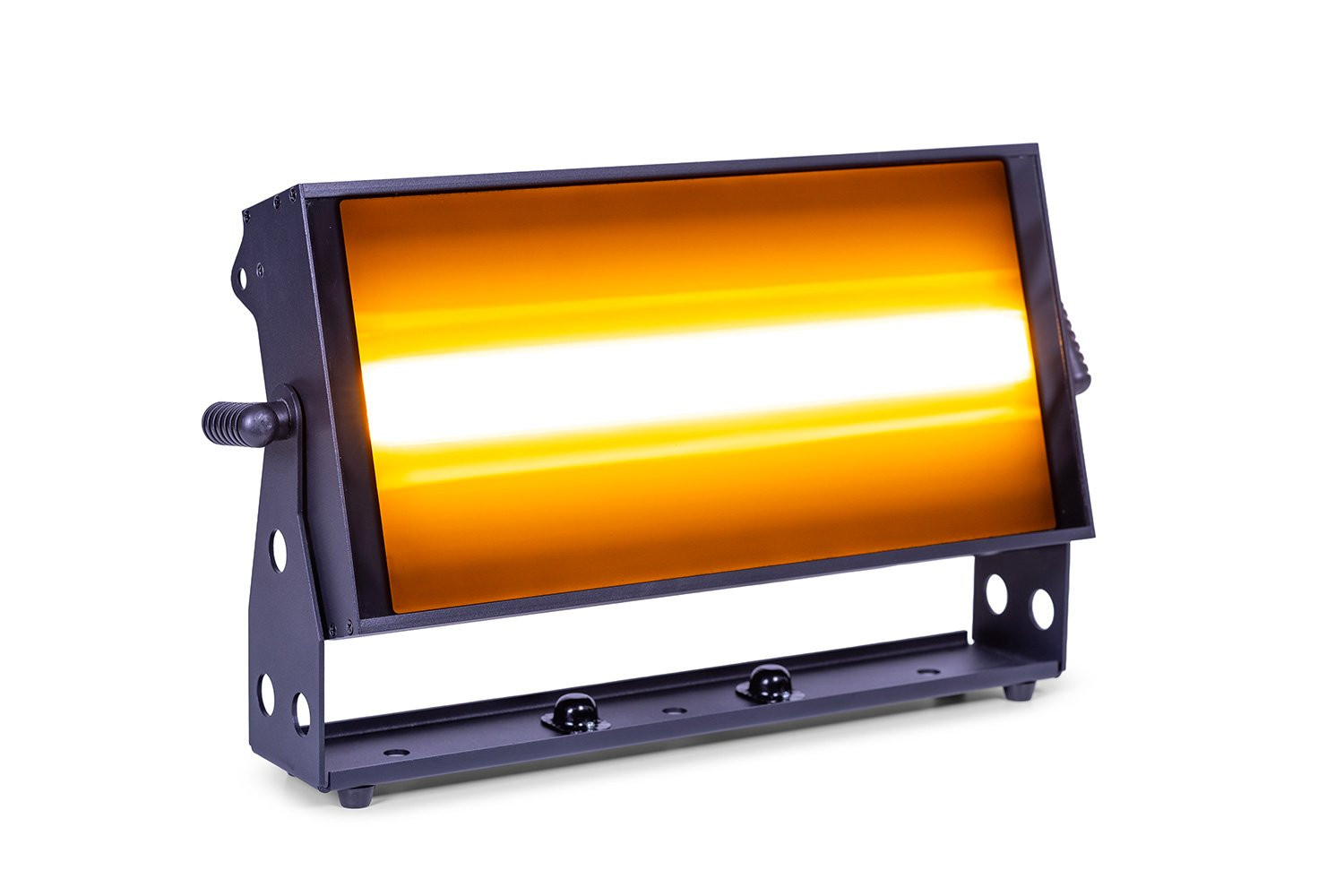

• Dedicated warm white channel for amber tones and tungsten-style looks
• Advanced multi-segment pixel control for dynamic effects and detailed programming
• Wide wash coverage with up to 158 field angle
• Smooth 0100% dimming and adjustable strobe effects
• Dual Omega bracket mounting positions for flexible installation

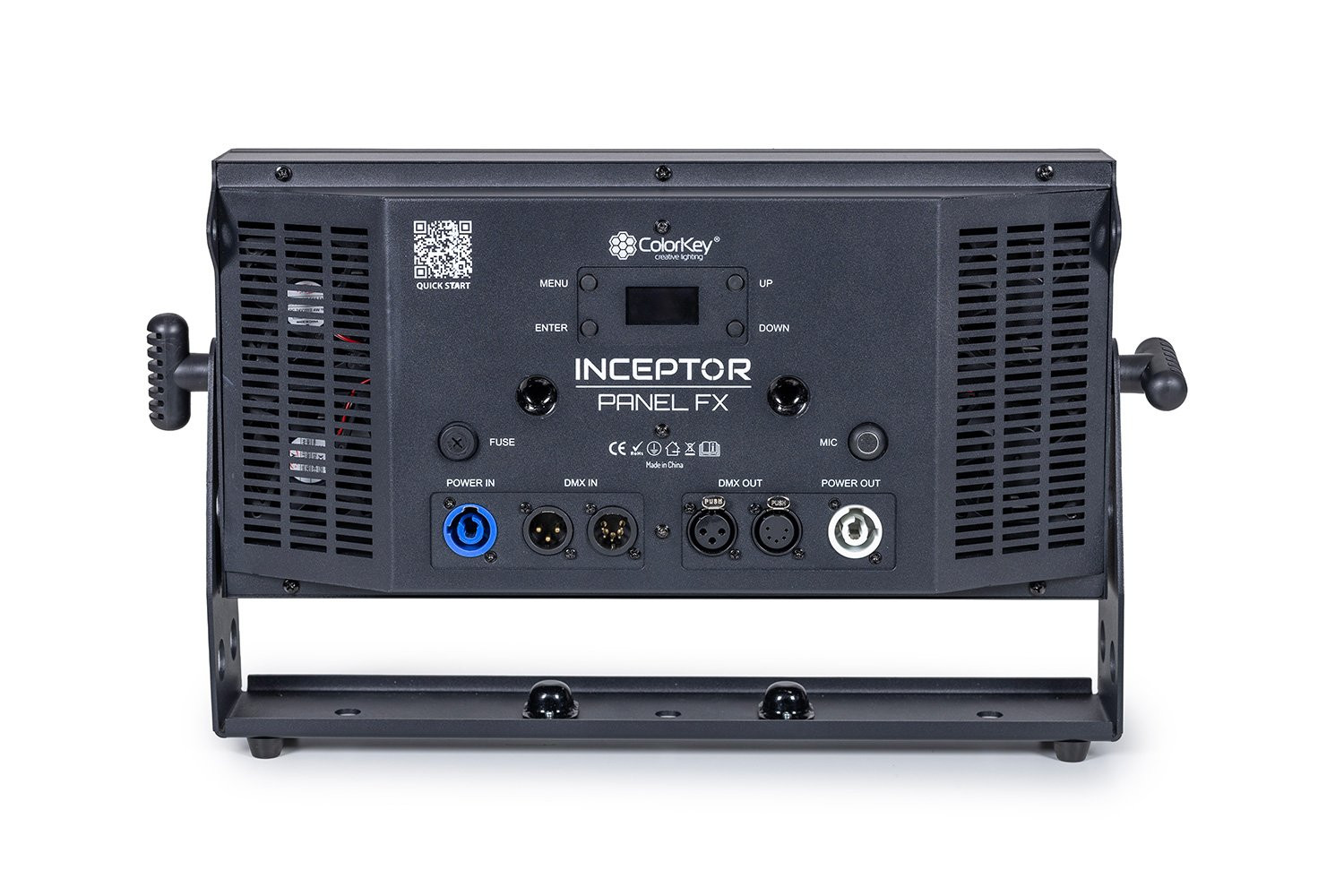

• Professional connectivity with 3-pin & 5-pin DMX and PowerCON in/out
• Multiple DMX modes from simple control to full pixel-level operation
Light Source RGB LEDs:
600 0.5W RGB (20-segment)
Illuminance: 545 lux @ 2m
280 0.5W RGB (40-segment)
Illuminance: 340 lux @ 2m
Combined RGB Illuminance: 885 Lux @ 2M
White LEDs:
240 1W Warm White / Cool White (10-segment)
Warm White Color Temperature: 1800k

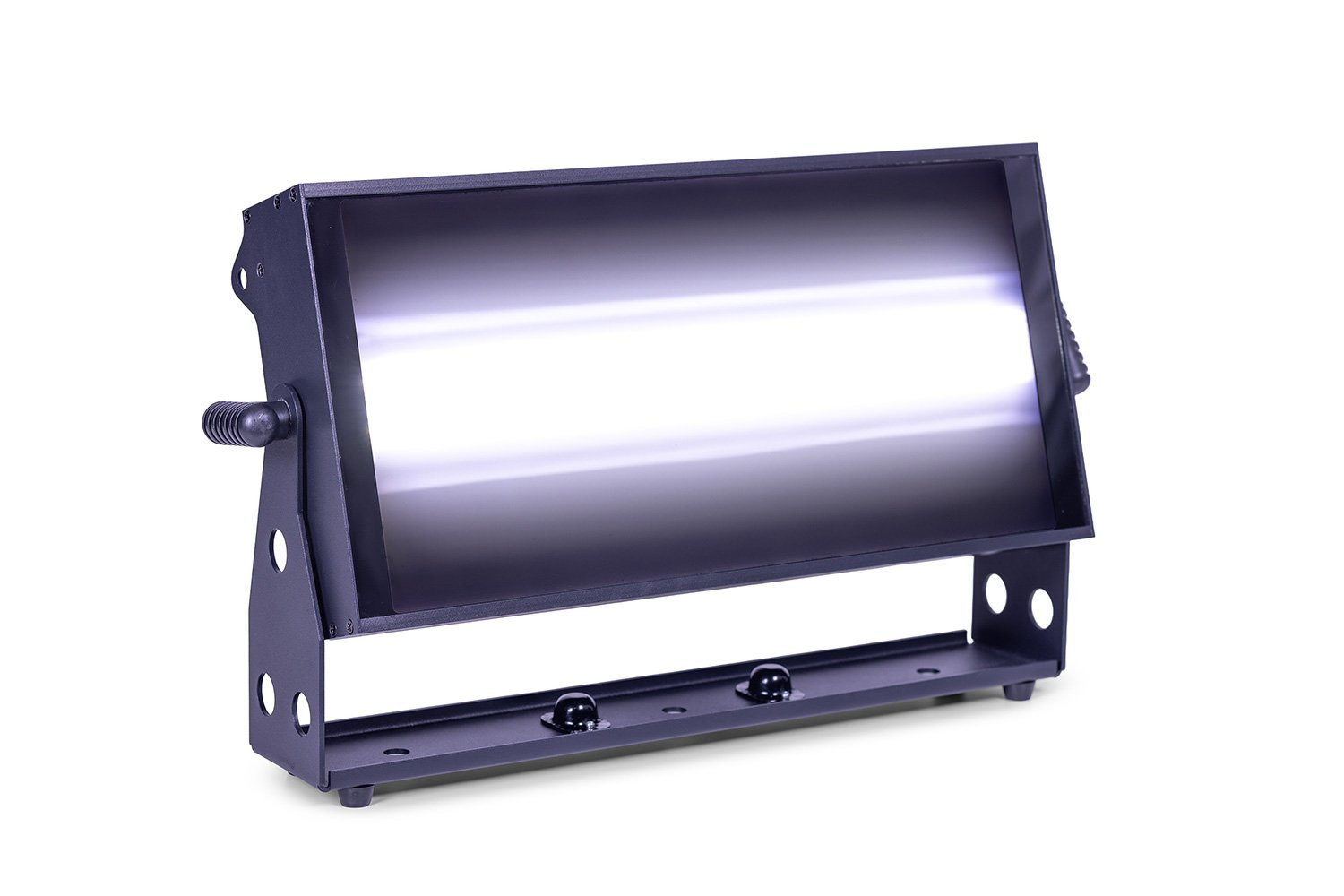

Cool White Color Temperature: 6500k
CTC Control from 1800k to 6500k
Warm White Illuminance: 1181 Lux @ 2m
Cool White Illuminance: 1415 lux @ 2m
Momentary Strobe Illuminance: 2680 lux @ 2m
LED Lifetime: 50,000 hours
Optics ActiveFrost electronic diffusion glass
RGB Beam Angle: 120
RGB Field Angle: 158
White Beam Angle: 90
Control Control Protocols: DMX512, RDM, Auto, Sound Active
DMX Channels: 10A / 10B / 16CH / 26CH / 201CH
Dimmer: 0100% smooth dimming
Strobe: 120Hz
Display: LED menu display
Power Voltage: AC 100240V, 50/60Hz
Power Consumption: 390W @ 100V / 366W @ 220V
Connections Power I/O: PowerCON in/out
DMX I/O: 3-pin & 5-pin XLR in/out
Physical Dimensions: 16.1 7.9 7.9 in (41 20 20 cm)
Net Weight: 15.4 lbs (7 kg)
IP Rating: IP20
