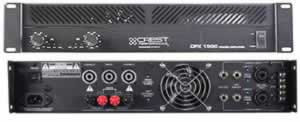

The CPX is an affordable line of amplifiers geared towards MI and DJ markets. A tradition of great sound quality, flexibility and reliability is carried over into the Crest Performance series. Industry standard connectors and features make the CPX a great back bone for mobile sound systems, project studios, and many other applications. Musicians will also find CPX as the power amp of choice.
TECHNICAL SPECIFICATIONS:• Stereo power 8 ohms 1kHz, 0.1% THD+N: 180W
• Stereo power 4 ohms 1kHz, 0.1% THD+N: 300W
• Stereo power 2 ohms 1kHz, 1% THD+N: 450W
• Bridged mono power 8 ohms 1kHz, 0.1% THD+N: 600W
• Bridged mono power 4 ohms 1kHz, 1% THD+N: 900W
• Hum & Noise Stereo mode, Below rated output power, 4 ohms: 100 dB
• Input sensitivity & Impedance @ rated output • power, 4 ohms: 1.12V RMS (+1 dBv)
• unbalanced, 1/4" phone jack: 20K Ohms
• balanced, XLR: 10K Ohms
• Overall system gain per channel: 40X (+32dB)
• Distortion SMPTE-IM: less than 0.01%
• Stereo mode, both channels driven, 4 ohms 20 Hz to 20 KHz, 10dB below rated power: less than 0.03%
• 20Hz to 2 KHz, at full rated power: less than 0.03%
• Frequency response Stereo mode, both channels driven +0, -1dB @ 1W RMS, 4 ohms:
20Hz to 20kHz
• +0,-3dB @ rated output, 4 ohms:
5Hz to 50kHz
• Damping factor (typical value)
• Stereo mode, both channels driven 8 ohms, 1 kHz: >300
• Power consumption Stereo mode, both channels driven @ 1/3 output power, 4 ohms 120 VAC: 8.0A
• Topology Class AB
• Dimensions 3.5"H x 19"W x 14"D
• 8.9 cm H x 48.3 cm W x 35.6 cm D
