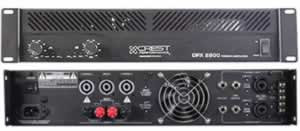

The CPX is an affordable line of amplifiers geared towards MI and DJ markets. A tradition of great sound quality, flexibility and reliability is carried over into the Crest Performance series. Industry standard connectors and features.
The CPX is a great back bone for mobile sound systems, project studios, and many other applications. Musicians will also find CPX as the power amp of choice.
TECHNICAL SPECIFICATIONS:• Stereo power 8 ohms 1kHz, 0.1% THD+N: 500W
• Stereo power 4 ohms 1kHz, 0.1% THD+N: 750W
• Stereo power 2 ohms 1kHz, 1% THD+N: 1100W
• Bridged mono power 8 ohms 1kHz, 0.1% THD+N: 1550W
• Bridged mono power 4 ohms 1kHz, 1% THD+N: 2200W
• Hum & Noise Stereo mode, Below rated output power, 4 ohms: 100 dB
• Input sensitivity & Impedance @ rated output power, 4 ohms:
1.5 V RMS (+3.5 dBv)
• Unbalanced, 1/4" phone jack
• Balanced, XLR:
• Overall system gain per channel:
40X (+32dB)
• Distortion SMPTE-IM: less than 0.01%
• Stereo mode, both channels driven, 4 ohms 20 Hz to 20 KHz, 10dB below rated power: less than 0.03%
• 20Hz to 2 KHz, at full rated power: less than 0.03%
• Frequency response Stereo mode, both channels driven +0, -1dB @ 1W RMS, 4 ohms:
20Hz to 20kHz
• +0,-3dB @ rated output, 4 ohms:
5Hz to 50kHz
• Damping factor (typical value)
• Stereo mode, both channels driven 8 ohms, 1 kHz: >300
• Power consumption Stereo mode, both channels driven @ 1/3 output power, 4 ohms 120 VAC: 10.0A
• Topology Class H
• Dimensions 3.5"H x 19"W x 14"D
8.9 cm H x 48.3 cm W x 35.6 cm D
