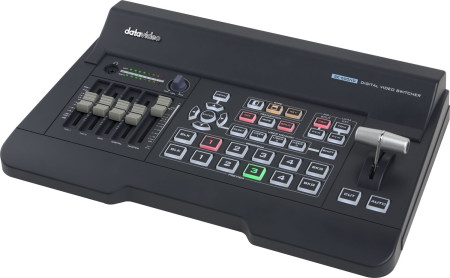

Datavideo SE-500HD 4-Channel 1080p HDMI Video Presentation Switcher

Supports lumakey for titles
With built-in lumakey, user can use PPT to easily create titles by graphic overlays.

User memories
You can save a complex process into a user memory, turning multiple tasks into a one-finger job.

Supports Vertical video multiview
It's an ideal solution for the videos on social media. The vertical video is more favorable while playing on the mobile device.

Professional 10-bit processing switcher
Providing you the best and professional quality of video processing.

• Video Standard : Full HD & SD
• Video Format : 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz; 576i 50Hz; 480i 59.94Hz
• Video Processing : HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4
• Video Input : 4x HDMI
• Mix HD & SD Source : Yes
• Computer Graphic Interface : 4 via HDMI
• Video Output : 2 x HDMI (1 is MV, 1 is PGM)
• Down-converted Output : Yes
• Built-in Multi-view Monitoring Out : HDMI
• Analogue Audio Input : 1 x Stereo RCA (L/R); 2 x Mono Microphone
• Analogue Audio Output : 1 x Stereo RCA (L/R); 1 x Stereo headphone (Mini Jack with volume control)
• Embedded Audio Support : Input 2 channels, Output 2 channels
• A+V Switching : Yes
• USK : Lumakey
• Picture in Picture : 1
• Effects : FTB, Cut, Wipe with border
• Sync / Reference In/Out : Built-in Genlock (internal)
• Tally Output : 1x D-sub 15pin, dual color
• Built-in Audio Mixer : Yes, 4 channels
• Special Features : Built-in video scaler for mixed resolution inputs
• Chassis : Unibody
• Dimension (LxWxH) : 400 x 250 x 82 mm
• Weight : 1.7 kg
• Power : DC 12V, 29W
• Operating Temp. Range : 040 C
• Options : CB-46/47/60/61/62
• What's in the box : 1 x SE-500HD product; 1 x AD Switch DC 12V with AC Cord; 1 x Thank You Card
