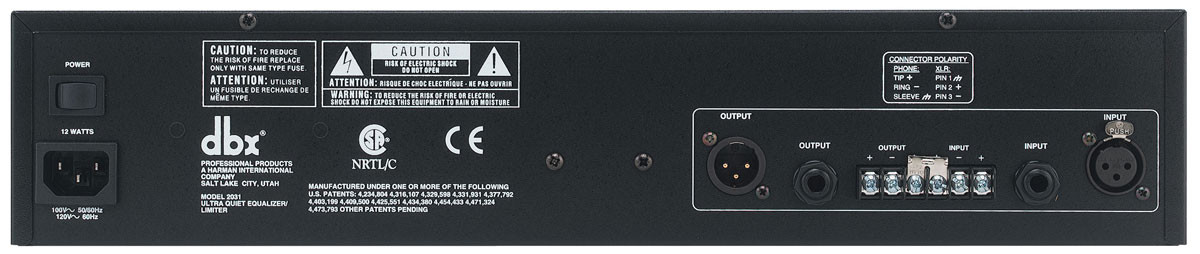

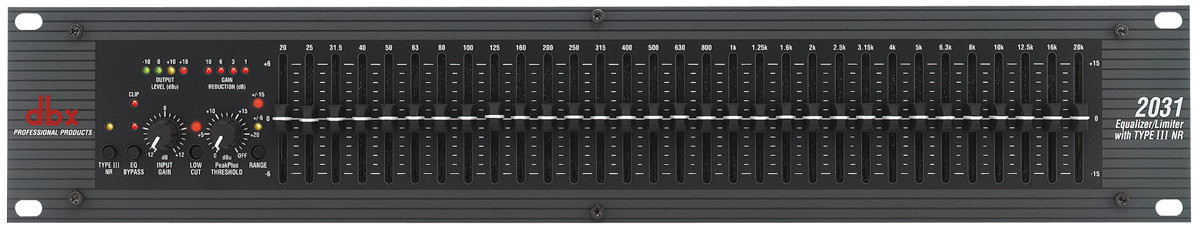

INPUT* Connectors: 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
* Type: Electronically balanced/unbalanced, RF filtered
* Impedance: Balanced 40k ohm, unbalanced 20k ohm
* Max Input Level: >+21dBu balanced or unbalanced
* CMRR: >40dB, typically >55dB at 1kHz
OUTPUTS* Connectors: 1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
* Type: Impedance-balanaced/unbalanced, RF filtered
* Impedance: Balanced 200 ohm, unbalanced 100 ohm
* Max Output Level: >+21dBu balanced/unbalanced into 2k or greater
>+18dBm balanced/unbalanced (into 600)
SYSTEM PERFORMANCE* Bandwidth: 20Hz to 20kHz, +/-0.5dB
* Frequency Response: <10Hz to >50kHz, +0.5/-3dB
* Dynamic Range: 109dB 115dB
* Noise Reduction In: (+/-6 and +/-15dB range):
* Signal-to-Noise: >102dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth
* Dynamic Range: >120dB, unweighted
* Noise Reduction Out: (+/-6dB range):
* Signal-to-Noise: >94dB, unweighted, ref: +4dBu, 22kHz measurment bandwidth
* Dynamic Range: >120dB, unweighted
* Noise Reduction Out: (+/-15dB range):
* Signal-to-Noise: >90dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth
* Dynamic Range: >108dB, unweighted
* THD + Noise: <0.04%, 0.02% typical at +4dBu, 1kHz
* Noise Reduction: Up to 20dB of dynamic broadband noise reduction
FUNCTION SWITCHES* Type III NR: Activates dbx Type III Noise Reduction
* EQ Bypass: Bypasses the Graphic Equalizer section in the signal path
* Low Cut (recessed): Activates the 40Hz 18dB/octave Bessel high-pass filter
* Range (recessed): Selects either +/- 6dB or +/-15dB slider boost/cut range
INDICATORS* Output Level Meter: 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
* Gain Reduction Meter: 4-LED bar graph (all Red) at 0, 3, 6, and 10dB
* Type III NR Active: Yellow LED
* EQ Bypass: Red LED
* Clip: Red LEDLow cut Active:
* Low Cut Active: Red LED
* +/-6dB range: Yellow LED
* +/-15dB range: Red LED
POWER SUPPLY* Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz, 230VAC 50/60Hz
* Power consumption: 12W
* Main Connection: IEC receptacle
PHYSICAL* Dimensions: 3.5" H X 19" W X 7.9" D (8.9cm x 48.3cm x 20.1cm)
* Weight: 8.5 lbs. (3.9 kg)
* Shipping Weight: 9.5 lbs. (4.3 kg)
