DBX 234XL Stereo 2/3 Way, Mono 4-Way X-over

dbx 234xl
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable This item has been discontinued or is no longer available.
In Stock It may be available on Amazon
In Stock Free shipping on most orders over $35
Buy on Amazon
Let's take a look at the construction features of the dbx 234XL. At first glance you'll notice the units are great looking, and as you turn the controls something else becomes apparent; these units are extremely well built. The controls exude great precision, and the feel is a solid click.

Also, when you open the box, you won't find the external power supply that accompanies most processors in this price range. That's because we know how difficult external power supplies can be to work with and even though it costs a little more we put the high quality power supply right in the unit. All the inputs and outputs are balanced XLR connectors that are screwed directly to the chassis. This connecting of the jacks insures that even if someone steps on a cable plugged into the unit, it's not going to tear up the circuit board inside. All dbx crossovers feature Linkwitz-Riley 24 dB per octave filters, the professional standard, but then again, what did you expect?

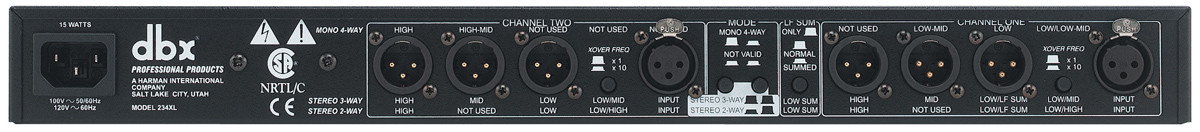

Via two switches on the back panel you first select whether you're operating your system in stereo 2-way, 3-way or mono 4-way. Another back panel switch also selects whether or not you want to mono sum the LF (subwoofer) out. (Most systems that use a subwoofer are mono summed to take advantage of amplifier power and because low frequencies are non-directional.) Back panel switches allow you to select the range of the crossover frequencies individually for both channels. The crossover frequency controls have a green LED that indicates the X10 switch on the back panel is activated (we wouldn't make you check the switch position on the back every time you wonder where it's set). All these switches are on the back panel because it could be disastrous if you were to change them mid-program. On the front panel you'll notice there are LEDs that indicate whether the unit is in mono or stereo mode. Each channel has an input gain control for proper level setting. There's a recessed 40 Hz low cut (HPF) on each channel to remove unwanted low frequencies. Both the low and high outputs on each channel have a gain control ranging from -infinity to +6dB, to allow muting of individual outputs and for level matching. Also, these outputs each have phase reverse switches that'll help get you out of a bind without having to reconfigure your system. These phase reverse switches may be internally reconfigured as mute switches.

You'll get great performance, all the features you'd expect from a professional product, and the knowledge that you're buying a processor from the people that have been producing the world's finest processors for over 20 years. The# technology that made us famous brings you a dbx crossover which has been tested to the highest professional standards at a price that's just too low to admit!

FEATURES:
* XLR differentially balanced ins and outs
* Mode switches for mono 4-way or stereo2-way/3-way operation
* Low frequency summed (subwoofer) output
* x10 range switch on both channels
* 40 Hz high pass (low cut) filter both channels
* Phase reverse switch on all outputs
* Individual level controls on all band outputs
* 24dB per octave Linkwitz-Riley filters (the professional standard)
* Stereo/Mono status LEDs indicate the selected mode
* dbx 2 year parts and labor as standard
* CSA NRTL/C approved
* CE compliant

Additional Information

UPCN/A
SKU234XL
ManufacturerDBX
Price$239.95
Product ConditionNew - On Clearance
