DBX DJ DI 2-channel Passive Direct Box

dbx djdidirectbox
dbx djdidirectbox DBX DJ DI 2-channel Passive Direct Box DBX DJ DI 2-channel Passive Direct Box DBX DJ DI 2-channel Passive Direct Box
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon

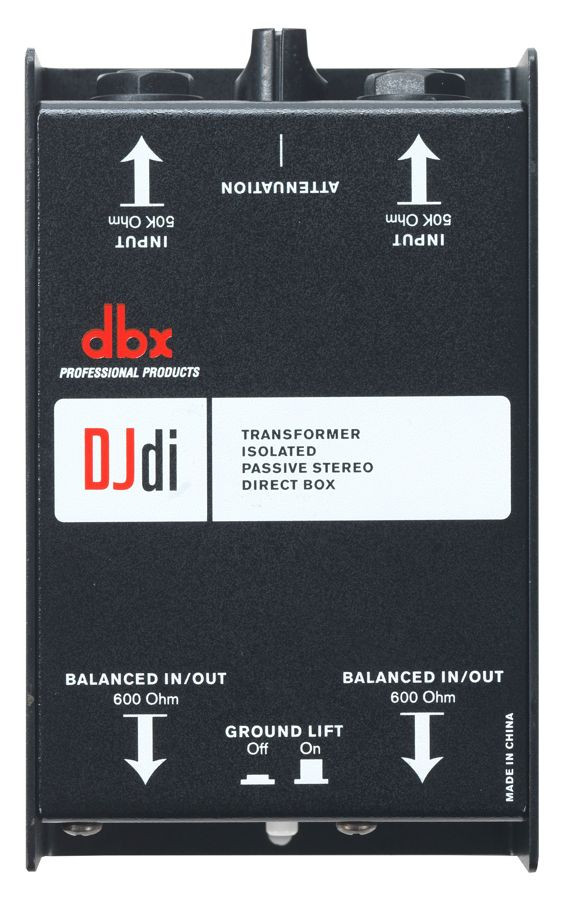

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

DBX DJ DI Features
• Dual Channel

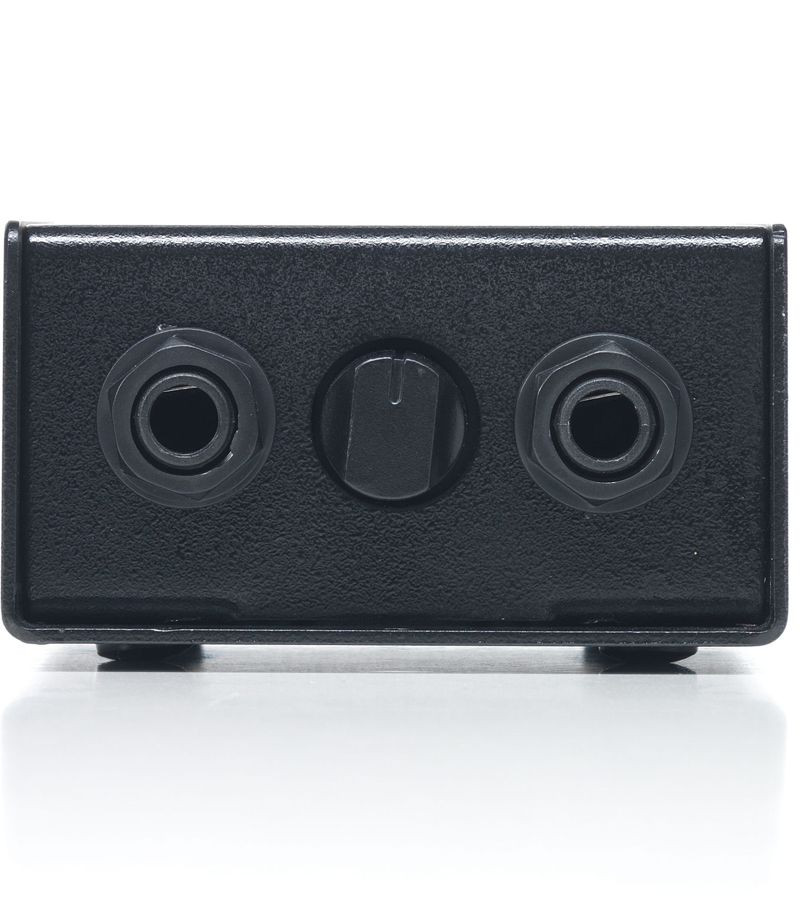

• (2) 1/4" 50k Ohm TS Inputs

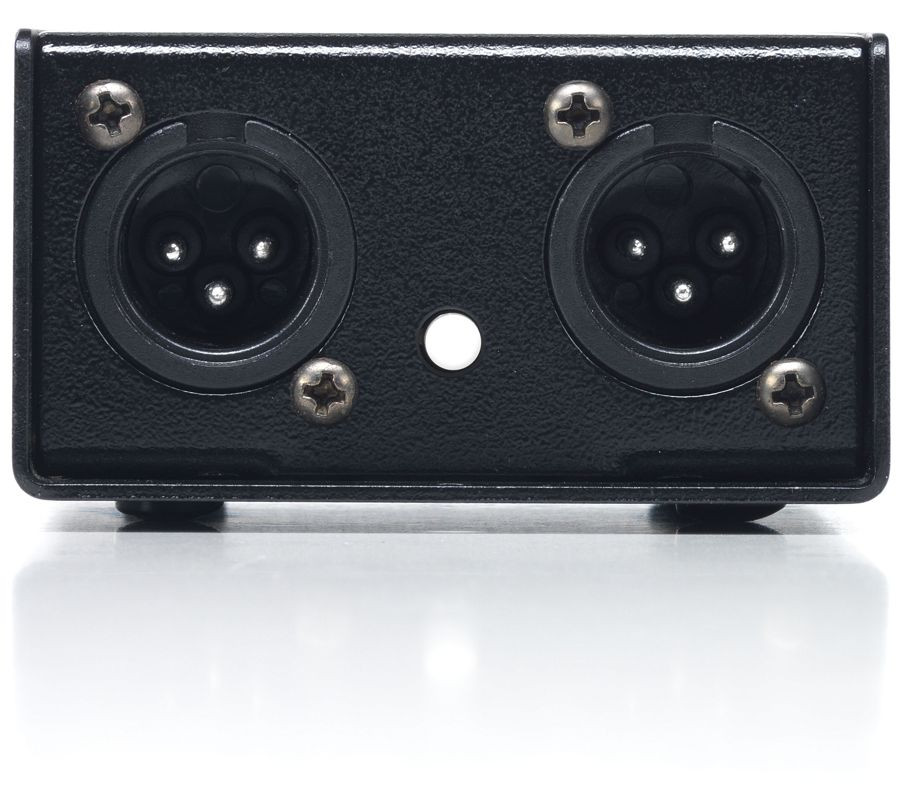

• (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
• Passive Circuit Design
• Continuously Variable Input Attenuator
• Ground Lift Switch

• Circuit: Passive
• Inputs: 2
• Input Connectors: 1/4" TS (Tip Hot, Sleeve Ground)
• Input Type: Unbalanced, RF Filtered
• Input Impedance: 50 kOhm
• Outputs: 2
• Output Connectors: Male XLR, Balanced, Pin 2 hot
• Output Impedance: 600 Ohms
• Noise Level: -104dBu (22Hz -22kHz, Input Shorted)
• THD+N (10Hz-22kHz): 0.23% typical @ +4dBu @ 1kHz
• Insertion Loss: 21dB typical
