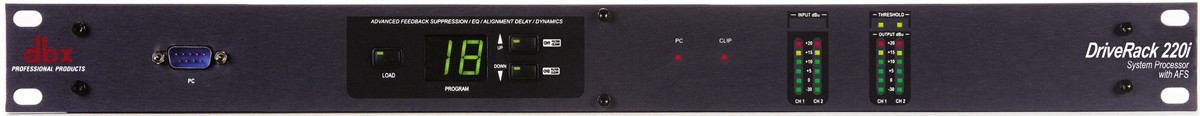

DBX DriveRack 220i System Processor

Featuring the new, patent-pending Advanced Feedback Suppression (AFS) algorithm, equalization, dynamics processing, delay, matrix mixing, and bandpass filters, the DriveRack 220i will exceed your expectations.

The DriveRack 220i is piloted from the intuitive DriveWare GUI that offers both Configuration and Control of the processing modules. Modules can be accessed, edited and saved as part of programs. Processing modules can be linked between the channels for true stereo processing. If independent processing is desired, parameters can be copied from one channel to the next to ensure that setup is quick and easy. Stored programs can be loaded from either the front panel or from wall mounted Zone Controllers. Zone Controllers can also be used for output muting or adjusting output volumes.

FEATURES:
* Advanced Feedback Suppression (AFS)
* Graphic and Parametric EQ
* Compressor
* Limiter
* Auto Gain Control
* Noise Gating
* De-Esser
* Ducker
* Bandpass Filters
* 2x2 Matrix Mixer
* 1.3 Seconds of Delay
* RS-232 PC GUI control
* Mic/Line Inputs
* Wall Panel Control
* Security Lockout

SPECIFICATIONS:
Analog Inputs:
* Number of Inputs (2) Switchable line or mic inputs
* Connectors Female XLR line inputs and Euroblock
* Type Electronically balanced/RF filtered
Impedance >50k O
* Max input line level +20dBu
CMRR > 40dB, typically >55db @ 1kHz
* Mic Pre gain 30 to 60dB
* Mic EIN < 110dB, 22Hz-22kHz, 150O
* Mic Phantom Power 15v
Analog Outputs:
* Number of Outputs (2)
* Connectors Male XLR and Euroblock
* Type Electronically balanced, RF filtered
* Impedance 120O balanced, 60O unbalanced
Max Output Level +20dBu
* A/D Performance
* Type dbx Type IV' conversion system
* Dynamic Range line >113 dB A-weighted, >110 dB unweighted
* Type IV dynamic range >119 dB, A-weighted, 22kHz BW
>117 dB, unweighted, 22kHz BW
* Sample Rate 48kHz
D/A Performance
Dynamic Range 112 dB A-weighted, 109dB unweighted
System Performance:
* Dynamic Range >110 dB A-weighted, >107dB unweighted
* THD+N 0.003% typical at +4dBu, 1kHz, 0dB gain
* Frequency Response 20Hz - 20kHz, +/- 0.5dB
* Interchannel Crosstalk >110dB, 120dB typical
* Crosstalk input to output >780dB
* Operating Voltage: 100 VAC, 50/60Hz, 120 VAC, 60Hz, 230VAC 50/60Hz
* Size 19" Wide, 1.75"High, 7.7"Deep
