The Zone Controllers offer extended utility to the DriveRack family. Based on the same unparalleled design philosophy as the other products in the dbx lineup, the Zone Controllers offer additional control to installations featuring the DriveRack 260.
The five Zone Controllers use analog DC voltages to provide logic control ranging from Volume and Mute control, to Contact Closure Program selection. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

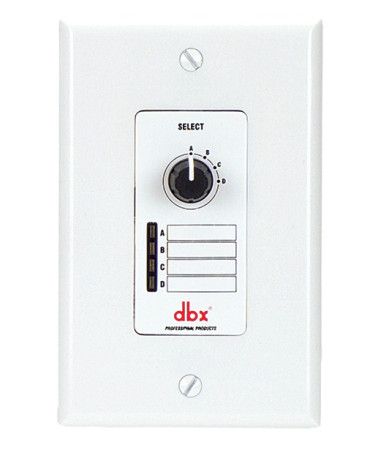

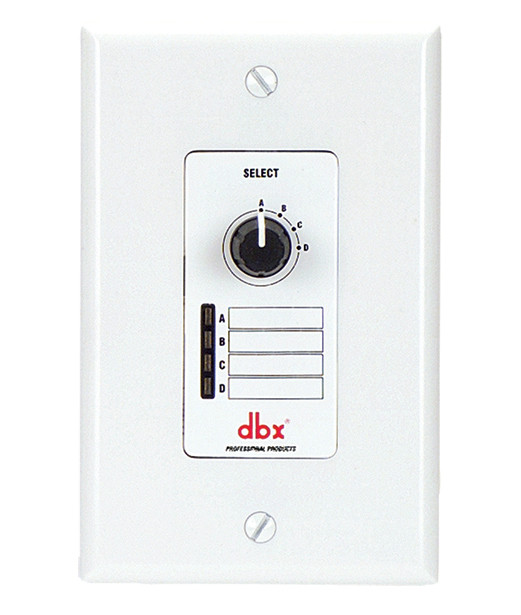

The ZC-1 offers remote programmable, Volume control to any installation using the DriveRack 260. The ZC-2 provides programmable Volume and Mute control. Both the ZC-1 and ZC-2 can be programmed for up to six outputs of the DriveRack 260. The ZC-3 allows Program Selection on the 260. The ZC-4 also offers Program Selection via Contact Closure inputs for Room Combining applications. Up to six Zone Controllers can be used with a single DriveRack 260, and can either be wired in series or parallel. The ZC-BOB was created to accommodate "home-run" or parallel wiring to the unit. With a maximum recommended cable length of 1,000 feet, the Zone Controllers offer a simple way to create elegant solutions for many installation applications.
• Programmable Volume Control
• Programmable Volume and Mute Control
• Program Selection
• Contact Closure Program Selection
• Maximum recommended cable length of 1,000 ft.
• Series or "Home Run" cabling
• Readily available CAT5 cable Standard RJ-45 Connectors
|Product Condition||New - On Clearance|
DBX ZC Series Driverack Zone Controllers, 03 Reviews
