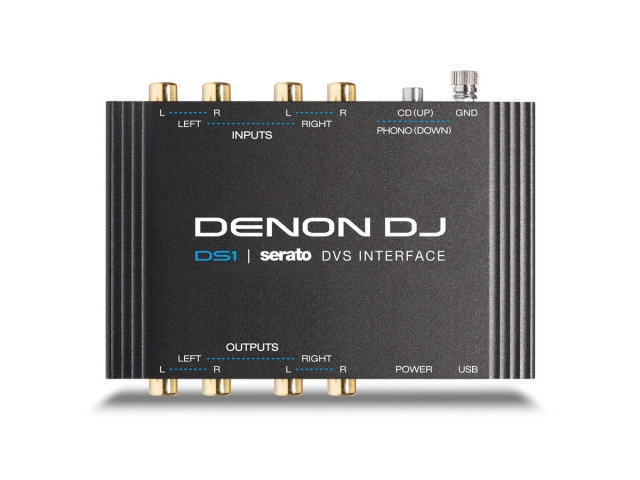

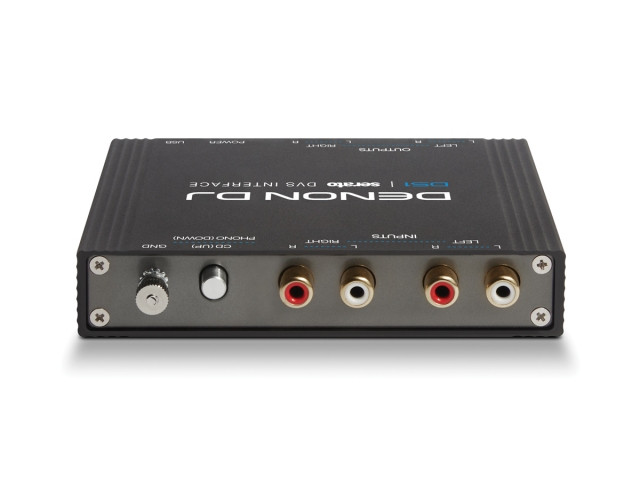

Compact in size, the Denon DS1 is ideal for the DJ on the go. It's almost exactly the size of a larger smartphone, iDevice, or small tablet. The metal housing gives it a durable body so you don't have to worry about constantly moving your gear around. A single USB is all it takes to power the unit and connect it to Serato DJ at the same time. It also includes ground connections, so whether you're using turntables or CD players, the DS1 is the perfect option.
Denon DJ DS1 Highlights:
• Compact DVS (Digital Vinyl System) interface, built exclusively for Serato DJ
• Connect turntables or CD players using Serato Noisemap and Serato DJ software for your music.
• Plug in, start Serato DJ and go! No additional purchase is required
• (2) sets of stereo RCA inputs and outputs for left and right decks
• Studio-grade 24-bit digital to analog conversion
• Supports 44.1kHz, 48kHz, and 96kHz sampling rates
• Dedicated grounding post for use with turntables
• Single USB cable connection to a computer for power and audio

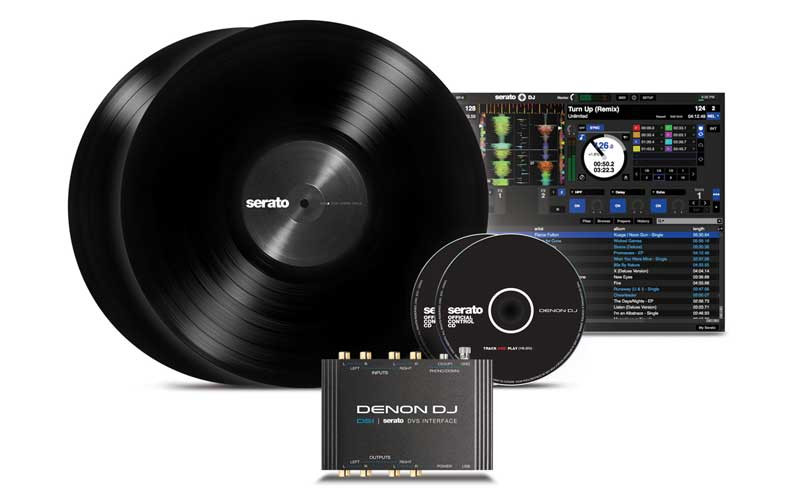

• Includes (2) Serato NoiseMap control tone vinyl records and CDs
• Includes USB and stereo RCA cables
• Rugged, all-metal construction; with carrying case
Denon DJ S1 Specifications
• Line Inputs 1-4 (unbalanced RCA):
- Frequency Response: 20 Hz - 20 kHz (+0.02dB)
- Dynamic Range: 103 dB (A-weighted)
- Signal-to-Noise Ratio: 100 dB (1 kHz, +6 dBV (2Vrms), A-weighted)
- THD+N: 0.002% (1 kHz +6 dBV (2Vrms))
- Max Input Level: +9 dBV
- Input Impedance: 47 kO
• Phono Inputs 1-4 (unbalanced RCA):
- Dynamic Range: 81 dB (A-weighted)
- THD+N: 0.022% (1 kHz, -27dBV)
- Max Input Level: -26dBV (53 mVrms)
- Input Impedance: 47 kO
• Line Outputs 1-4 (unbalanced RCA):
- Frequency Response: 20 Hz - 20 kHz (+0.07 dB)
- Dynamic Range: 100 dB (A-weighted)
- THD+N: 0.007% (1 kHz, -1 dBFS)
- Maximum Output Level: +6 dBV
- Output Impedance: 100 O
- Note: All specifications above measured at 20 kHz bandwidth.
• Unit Size:
- 4.7 (W) x 3.0 (D) x 0.9 (H) (Inches)
- 119.38 (W) x 76.2 (D) x 22.86 (Millimeters)
- Unit Weight: 0.55 lbs / 0.25 kg
System Requirements
• Supported Operating Systems:
- Mac OS X: 10.8, 10.9, 10.10
- Windows: 7, 8, 8.1
• Supported Processors:
- i3, i5 or i7 32 & 64 bit: 1.07 GHz+
- Core 2 Duo 32 bit: 2.0 GHz+ 64 bit: 2.4 GHz+
• Minimum RAM:
- 32 bit OS: 2 GB
- 64 bit OS: 4 GB
• USB: 1 available USB 2.0 port
Note: Intel Processors are required for use with Serato DJ Software
