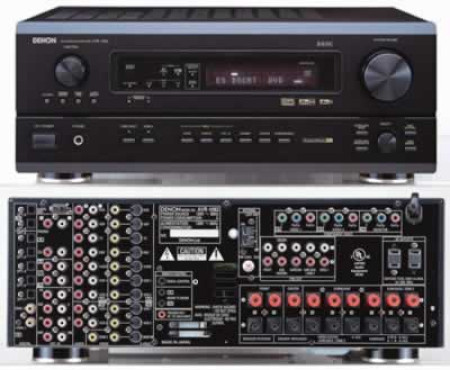

Denon Professional AVR-1083P Surround AV Receiver

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

denon professional avr-1083p
Expanding on the already feature-rich and extensive line of receivers comes the Denon Professional AVR-1083P, multi-room A/V receiver. With it's fully discrete 7 channel power amps (110W each) and video up conversion features,
the AVR-1083P is guaranteed to be a workhorse in any installation.

Dolby Digital EX and dts 96/24 have been added to offer full support for all encoded surround formats, and the D.D.S.C has been vastly improved through the use of the new Analog Devices Melody 100 DSP processor. The AVR-1083P is the first receiver in its class to offer component video conversion for increased flexibility and ease of installation.

FEATURES:
• Fully Discrete, Equal Power 7 Amplifier Channels, 110W each
• High-grade, Video Up Conversion
• Denon's Latest Surround Technology
• Newly Redesigned Pre-Programmed Remote • Controller with Learning Feature
• Support for Multi Zone Configurations
• Input/Output Terminals for every A/V Installation

TECHNICAL SPECIFICATIONS:
Inputs/Outputs:
• Audio Inputs:
11 Analog Input PHONO, CD, Tuner, DVD, VDP, TV, DBS,
VCR-1, VCR-2, V.AUX, CDR/TAPE
1 8-ch Analog EXT. Input FRONT L/R, CENTER, SURROUND L/R,
SURROUND BACK L/R, SUBWOOFER
5 Digital (Optical) Input OPTICAL X 5 (Assignable)
2 Digital (Coaxial) Input COAXIAL x 2 (Assignable)
• Audio Outputs:
8 Analog PRE Output FRONT L/R, CENTER, SURROUND L/R,
SURROUND BACK L/R, SUBWOOFER
3 Analog REC Output VCR-1, VCR-2, CDR/TAPE
1 Analog Multi Zone PRE Output L/R
2 Digital (Optical) Output OPTICAL x 2
• Video Inputs:
2 Component Video Input Component IN VIDEO1,2
7 Composite Input DVD, VDP, TV,DBS, VCR1, VCR2, V.AUX
7 S-Video Input DVD, VDP, TV, DBS, VCR-1, VCR-2, V.AUX
• Video Outputs:
1 Component Video Output MONITOR
3 Composite Output VCR-1, VCR-2, MONITOR
3 S-Video Output VCR-1, VCR-2, MONITOR
1 Multi Zone Video output Composite x1
Power Amplifier Section:
• Rated output *THD figures are power amp stage values.
• Front: 110 W + 110 W (8 ohms, 20Hz - 20kHz, 0.05
• 150 W + 150 W (6 ohms, 1 kHz, 0.7 % THD)
• Center: 110 W (8 ohms, 20Hz - 20kHz, 0.05 % THD)
150 W (6 ohms, 1 kHz, 0.7 % THD)
• Surround: 110 W + 110 W (8 ohms, 20Hz - 20kHz, 0.05
150 W + 150 W (6 ohms, 1 kHz, 0.7 % THD)
• Surround back:110 W + 110 W (8 ohms, 20Hz - 20kHz, 0.05
150 W + 150 W (6 ohms, 1 kHz, 0.7 % THD)
Preamplifier Section:
• Input sensitivity/impedance:
PHONO(MM) 2.5 mV/47 kohms
CD, DVD, VDP, TV, DBS, VCR-1,
VCR-2, V.AUX, CDR/TAPE 200 mV/47 kohms
FRONT L/R, CENTER,
SURROUND L/R, SURROUND
BACK L/R, SUBWOOFER 200 mV/15 kohms
• Output level/Load impedance:
FRONT L/R, CENTER, SURROUND
L/R, SURROUND BACK L/R,
SUB WOOFER MULTI ZONE L/R 1.2 V/10 kohms
VCR-1, VCR-2, CDR/TAPE 200 mV/47 kohms
• Frequency response: 10 Hz - 100 kHz; +0, -3 dB
• Signal-to-noise: 102 dB
• RIAA deviation: 1 dB (20 Hz - 20 kHz)
• Tone control Treble: 10 dB, Bass: 10 dB
FM Section:
• Tuning frequency range 87.5 - 107.9 MHz
Usable sensitivity 1.0 V (11.2 dBf)
AM Section:
• Tuning frequency range 520 - 1710 kHz
• Usable sensitivity:18 V
• General:
Power supply AC 120 V, 60 Hz
Power consumption 7.0 A
Dimensions 434 (W) x 171 (H) x 416 (D) mm
17.1" (W) x 6.7" (H) x 16.4" (D)
Weight 16.5 kg, 36.4lbs
Accessory 4RU Rack kit Included



Additional Information

UPCN/A
SKUAVR-1083P
ManufacturerDenon Professional
Product ConditionNew - On Clearance
ReturnableNo
