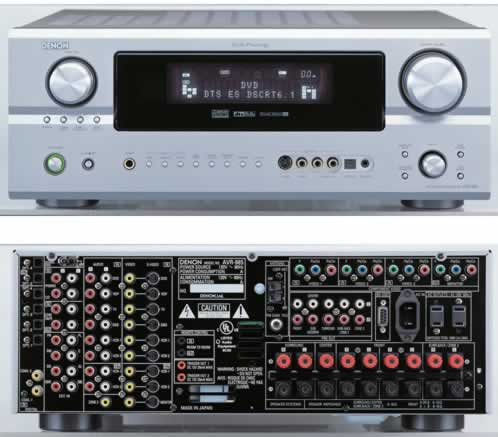

Denon Professional AVR985SP Surround Receiver

It also features the latest generation 32bit floating point DSP to decode all current surround formats, 96kHz signals to process room equalization. This DSP's processing power allows even the analogue input signals in all surround modes to be handled at 96kHz, which undoubtedly assures
never-before-experienced high quality.

FEATURES:
• 32-bit floating point DSP
• Various Decoding
• Component Video Conversion
• High Definition Quality Video Switching
• RS-232C Control Port
• Auto Setup & Room EQ Function w/ • Microphone
• Room EQ Memory
• Assignable Room EQ
• Support for Multizone Configurations
• Remote In/Out Port
• Custom Rack Mount Kit Included


TECHNICAL SPECIFICATIONS
Power Amplifier Section
Rated output *THD figures are power amp stage values.
• Front: 100 W + 100W (8 ohms, 20 Hz - 20 kHz, 0.05 % THD)
135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
• Center: 100 W (8 ohms, 20 Hz - 20 kHz, 0.05 % THD)
135 W (6 ohms, 1 kHz, 0.7 % THD)
• Surround: 100 W + 100W (8 ohms, 20 Hz - 20 kHz, 0.05 % THD)
135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
• Surround Back: 100 W + 100W (8 ohms, 20 Hz - 20 kHz, 0.05 % THD)
135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)

Preamplifier Section
Analog:
• Input sensitivity / impedance: 200mV/47kohms
• Frequency response: 10Hz-100kHz(+0,-3dB direct mode)
• S/N: 102dB(direct mode)
• Rated output: 1.2V

Digital:
• D/A output: 2.0V

Phono
• Input sensitivity / impedance: 2.5mV
• RIAA deviation: +/-1dB(20Hz to 20kHz)
• Rated output: 150mV

Video Section
Frequency response
• Composite video/S-video: 5Hz-10MHz(+0,-3dB)
• Component video: DC-100MHz(+0,-3dB)

FM Section
• Tuning frequency range: 87.5 - 107.9 MHz
• Usable sensitivity: 1.0 V (11.2 dBf)

AM Section
• Tuning frequency range: 520 - 1710 kHz
• Usable sensitivity: 18 V

General
• Power supply: AC120V, 60Hz
• Power consumption: 5.6A (1W max at standby mode)
• Dimensions: 434 (W) x 171 (H) x 429 (D) mm
17.1'' (W) x 6.7'' (H) x 16.9'' (D)
• Weight: 13.5kg (29lbs 12oz)
