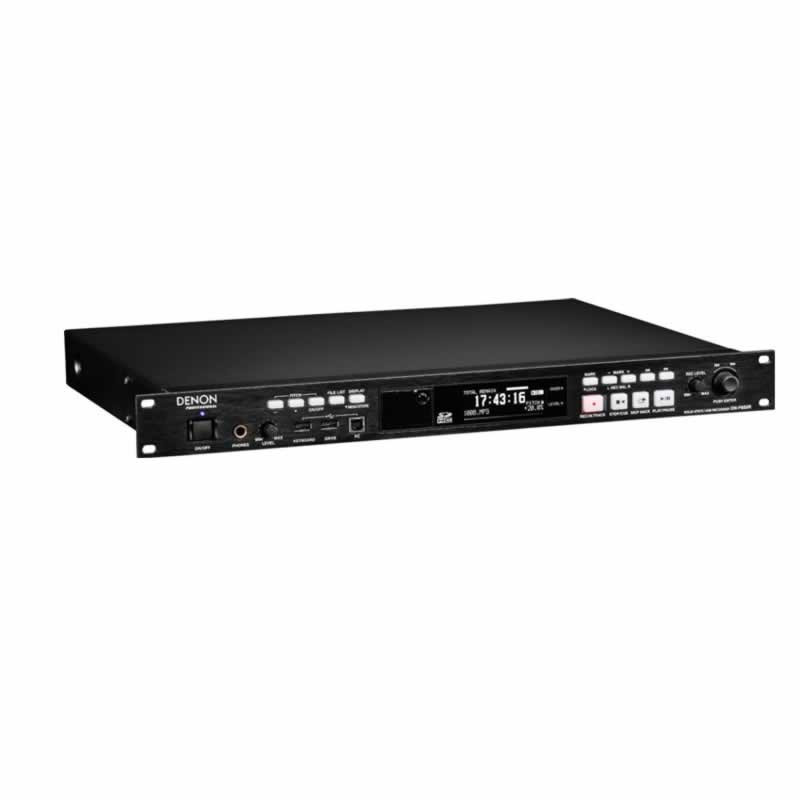

The DNF650R has RS-232c and USB keyboard control, making it perfect for integrated sound systems. Additionally, a full host of inputs and outputs from AES/EBU to Balanced XLR in and out allow for its inclusion into nearly every application. Its playback features also include +20% / -40% pitch control, likewise ideal for dance and aerobics/fitness. Additionally, the optional RC-F400S Remote Controller features a large LCD display and enhances the DN-F650's capability by providing an ergonomically designed, intuitive control unit for instant playback of audio or audio elements (sound effects) via its hot-buttons, making it ideal for live events, radio, television, etc.
Key Features• 1 RU Rackmount size for easy installation
• Records and plays back from stable, industry-standard SD/SDHC flash media and USB drives (Thumb / HDD)
• Records WAV (.wav) at 44.1 / 48 / 96 kHz
• Records MP3 (.mp3) at 32-320 kbps
• Balanced (XLR) and unbalanced (RCA) analog inputs and outputs
• S/PDIF and AES/EBU digital input and output
• +20% / -40% Pitch Control with tempo lock
• Power on auto-play
• Various playback modes (single / continuous, repeat, random)
• Audible quick search
• Skip back playback
* Marking and mark search
• Large, easy-to-read OLED display
• Front-panel mounted USB for connecting to a computer
• Front-panel mounted USB keyboard input for file naming and control
• Serial (RS-232c) and parallel remote inputs
• Headphone output with level control
Advanced UsabilityThe OLED display and easy file search jog wheel enable simple front panel operation. A USB keyboard input allows for simple file name editing. A variety of playback modes includes single, repeat, random, continuous and skip back play. Pitch control (between +20 and -40%), tempo lock, and a headphone out with volume control are also included.
Recording and FormatsStereo and mono audio channels are simultaneously available and both WAV and MP3 file formats are supported, with selectable sample rates of 96, 48 and 44.1 kHz, 24 and 16 bit resolution, and MP3 bit rates between 32 and 320 kbps. Cascade recording and file management capabilities between the SD / SDHC card and connected USB drive, and USB connectivity to PC enables file transfer.
Flexibility and ControlThe RC-F400S Remote Controller's intuitive control panel features a large, easy-to-read OLED display, with full navigation and transport control and features like Power-On Auto Play. Audio and Sound FX files can be easily assigned to each of its twenty Hot Start buttons for instantaneous triggering of any sound file, making it an ideal choice for the most demanding live situations, including sporting events, theaters, radio and TV stations.
SpecificationsMedia:
• SD / SDHC, USB drives
File Format:
• WAV / MP3 (MPEG-1 Layer III)
Media Format:
• FAT / FAT32
MP3 Bit Rate:
• 32 - 320 kbps / stereo
Sampling Frequency:
• 96 / 48 / 44.1 kHz
Quantization:
• 24 / 16-bit
Audio SectionAudio Channels:
• 2 (Stereo) / 1 (Mono)
Frequency Response:
• 20 Hz 40 kHz 1.0 dB
S/N Ratio:
• 96 dB(1 kHz, 0 dB playback, A filter)
Channel Separation:
• 86 dB(1 kHz, 0 dB playback)
Total Harmonic Distortion:
• 0.01%(1 kHz, 0 dB playback)
Dynamic Range:
• 96 dB
Variable Pitch Control:
• +20% / -40% (0.1% step)
InputsBalanced Input:
• Type XLR(1:GND, 2:Hot, 3:Cold)
Input Sensitivity:
• +24 / +18 / +12 / 0 dBu
Input Impedance:
• 24 kohms
Unbalanced Input:
• Type RCA
Input Sensitivity:
• 500 mVrms
Input Impedance:
• 22 kohms
Digital Input (AES/EBU):
• XLR
Digital Input (S/PDIF):
• RCA
OutputsBalanced Output:
• Type XLR(1:GND, 2:Hot, 3:Cold)
Level:
• +24 / +18 / +12 / 0 dBu
Unbalanced Output:
• Type RCA
Level:
• 2 Vrms
Digital Output (AES/EBU):
• XLR
Digital Output (S/PDIF):
• RCA
Headphone Output:
• Type TRS 1/4"
Level:
• 20 mW / 32 ohms
GeneralPower Consumption:
• 22 W
Dimensions (W x H x D):
• 483 x 44 x 325 mm
Weight:
• 3.7 kg
Environmental ConditionsOperating temperature:
• +5C to +35C
Operating humidity:
• 25% to 85%, no condensation
Storage temperature:
• -20C to +60C
Storage humidity:
• 25% to 85%, no condensation
Included AccessoriesStereo Audio Cable:
• 1
USB Cable:
• 1
AC Cord:
• 1
SD door screw:
• 2
Retainer:
• 1
Operating Instructions:
• 1
CD-ROM for multi-language DFUs & DMP Mark Editor software:
• 1
Other Information
Carton Size (W x H x D):
• 593 x 198 x 464 mm
Carton Weight:
• 6.0 kg
Country of Origin:
• Japan
Optional Accessories
• RC-F400S*
• RC600PMD
