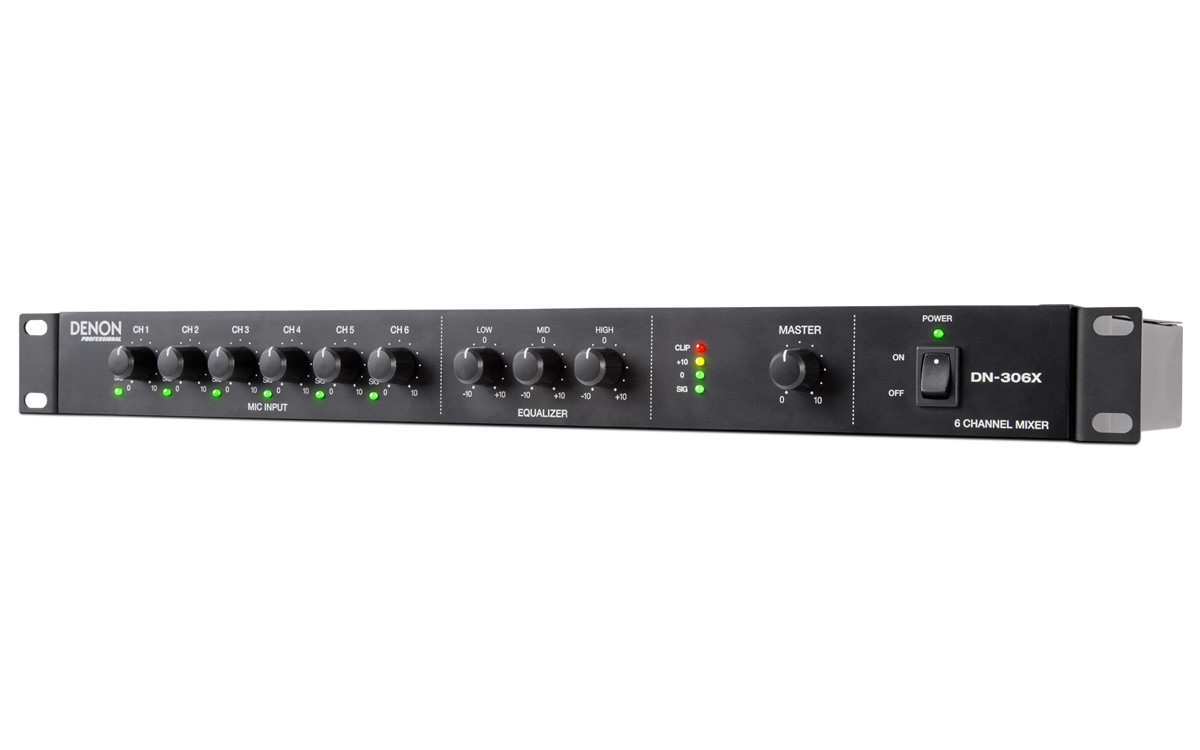

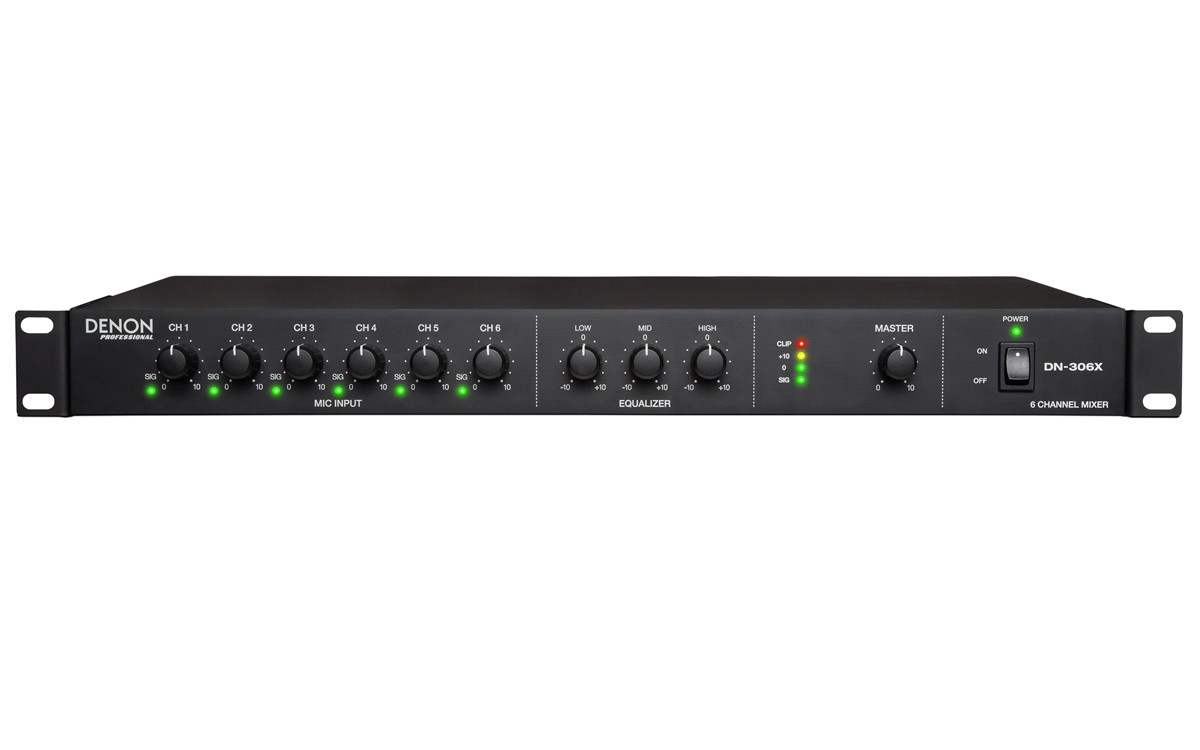

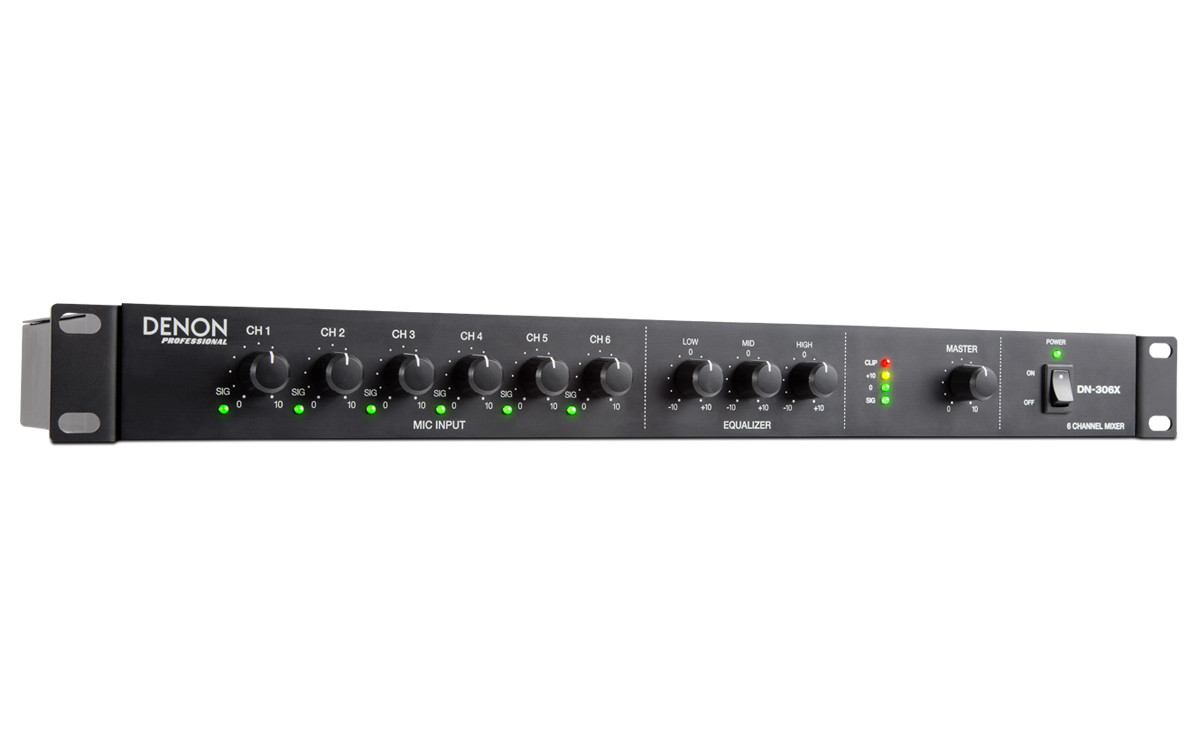

The DN-306X is a compact 6-channel mixer. It features combo XLR/TRS input jacks with switchable MIC, LINE, and phantom power along with two XLR line outputs. Added features include mic one priority and a 3-band equalizer on the output. The DN-306X is compact, versatile and ready to solve any number of audio installation challenges.
Denon DN-306X Features• Six-channel mixer in one rack space

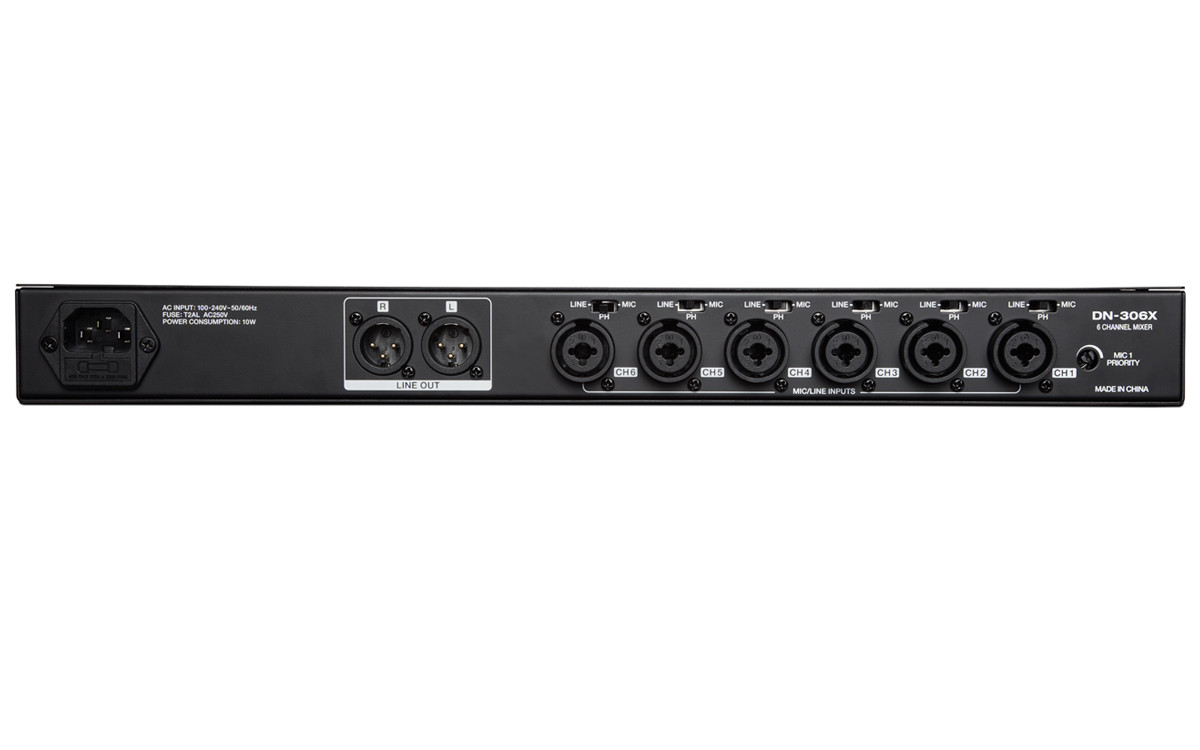

• XLR/TRS combo input jacks with phantom power
• Two XLR line outputs
• Master level control and 3-band equalizer
• Mic one priority control
Mic Inputs• Max Input Level: -20dBu
• Sensitivity: -40dBu
• Impedance: 1.4k'
Line Inputs• Max Input Level: +24dBu
• Impedance: 10k'
• Max Output Level: +24dBu
• Phantom Power: 48VDC
• Maximum Voltage Gain: 60dB
Equalizer• High: 15dB @ 12kHz
• Mid: 12dB @ 2.5kHz
• Low: 15dB @ 80Hz
• Dimensions: 19.0 x 7.7 x 1.7" (483 x 195 x 44mm)
