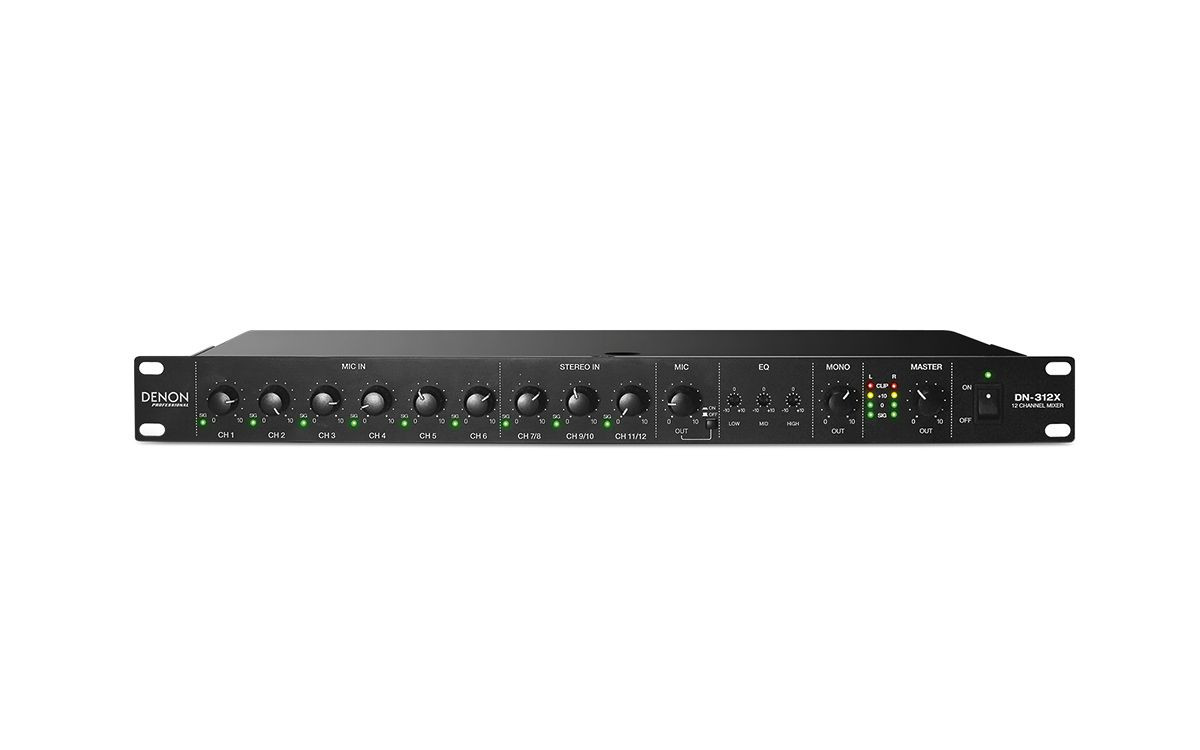

The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. Rounding off the feature set, It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variey of applications; everything from a classtroom to a tour bus.

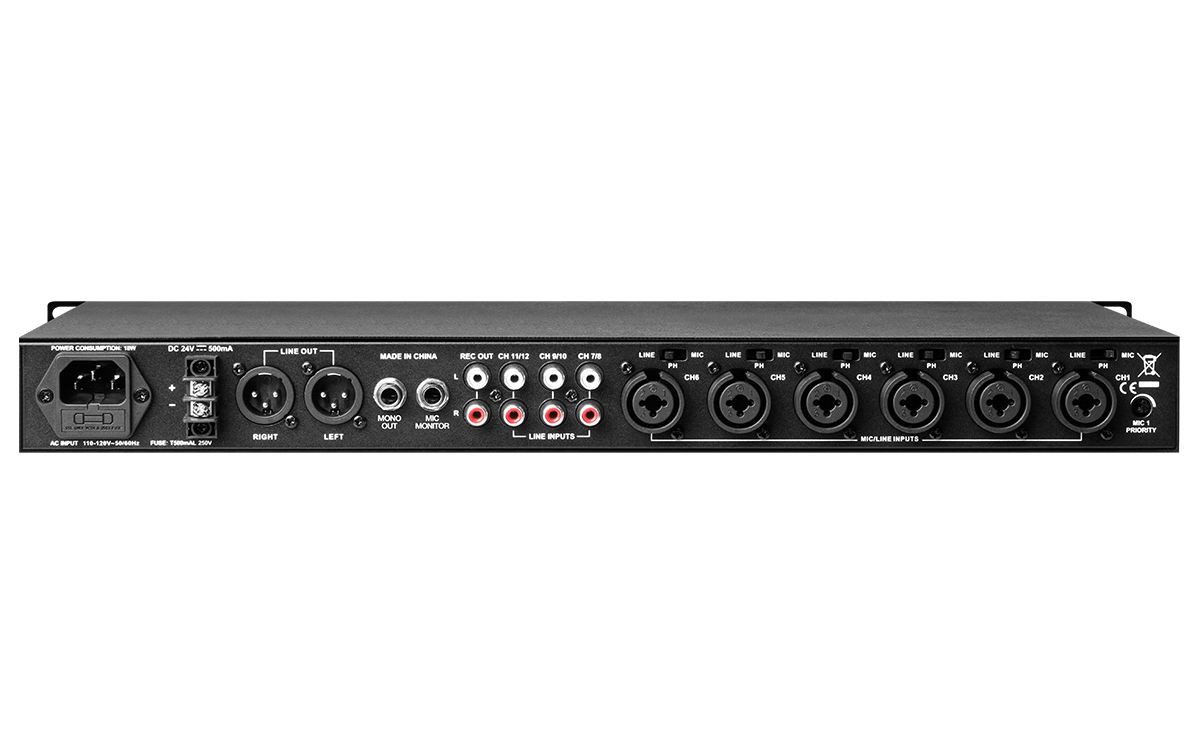

Denon DN-312X Features• 6 HDHQ' Combination inputs with MIC, Phantom and Line selector switches
• 6 mono (3 stereo) RCA Inputs
• Mic monitor 1/4" output for private listening to all mic inputs
• Balanced XLR line outputs
• Mono 1/4" line output can be used to feed audio to external recording device
• AC or 24V DC power inputs
• Mic 1 Priority Control
• Master and Individual level controls
• 1U rack mountable
• 6 HDHQ Combination inputs with MIC, Phantom and Line selector switches
• 6 mono (3 stereo) RCA Inputs
• Mic monitor 1/4" output for private listening to all mic inputs
• Balanced XLR line outputs
• Mono 1/4" line output can be used to feed audio to external recording device
• AC or 24V DC power inputs
• Mic 1 Priority Control
• Master and Individual level controls
• 1U rack mountable
Microphone Input: 6 Balanced XLR Connectors (Channels 16)• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: -40 dBu
• Maximum Input: -19 dBu
• Maximum Voltage Gain: 60 dB (Mic Input to Line Out, Mic Out & Mono Out) / 50 dB (Mic Input to Rec Out)
• Signal-to-Noise Ratio: > 103 dB
• Phantom Power: 1821 V, switch control
Line Inputs: 6 Balanced XLR Connectors (Channels 16)• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: 0 dBu
• Maximum Input: +21 dBu
• Maximum Voltage Gain: 20 dB (Mic Input to Line Out, Mic Out & Mono Out) / 10 dB (Mic Input to Rec Out)
• Signal-to-Noise Ratio: > 103 dB
Line Inputs: Stereo Balanced RCA Connectors (Channels 7/8-11/12)• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: +10 dBu
• Maximum Input: +21 dBu
• Maximum Voltage Gain: 10 dB (Line Input to Line Out) / 0 dB (Line Input to Rec Out) / 4 dB (Line Input to Mono Out)
• Signal-to-Noise Ratio: > 103 dB
Impedance:• Mic/Line Input: 1.4 kO
• Line Input: > 10 kO
• All Outputs: 120 O
Equalizer:• High: +15 dB @ 12 kHz
• Mid: +12 dB @ 2.5 kHz
• Low: +15 dB @ 80 Hz
Crosstalk:• Adjacent Inputs:
< -70 dB @ 1 kHz (Channels 16)
< -68 dB @ 1 kHz (Channels 7/811/12)
• Input to Output:
< -82 dB @ 1 kHz
Main Mix:• Line Output: 0 dBu (+2 dBu), balanced
• Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced
• Maximum Output: +21 dBu balanced/unbalanced, 1/4" (6.35 mm) jacks
• Noise (Bus): < -83 dB @ 20 Hz 22 kHz
Power:• Connection: IEC
• Input Voltage: 100V, 110-120V, 50/60Hz; 220-240V, 50/60Hz or DC24V
• Dimensions (width x depth x height): 19.0" x 7.7" x 1.7" (483 x 195 x 44 mm)
• Weight: 6.4 lbs, 2.9 kg
The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or 24V DC power source.
